Ideal Industries

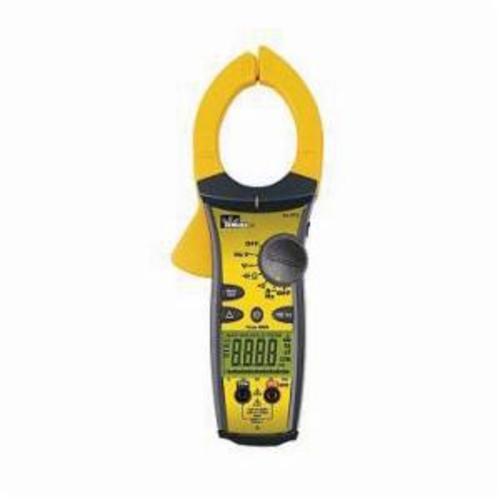

61-773 IDL 1000A CLAMP W/TRMS

Mouse over image to zoom, click to enlarge

  • 61-773 IDL 1000A CLAMP W/TRMS
  • 61-773 IDL 1000A CLAMP W/TRMS

Description: IDEAL® TightSight® Clamp Meter, True RMS, Series: 770, 999.9 A at 750 V AC, 999.9 V DC Electrical Rating, 9999 Ohm Resistance, 20 to 400 Hz Frequency, 2 in Jaw, 4 Digit LCD Display, 2 % AC Current Accuracy, 1.0% AC/DC Voltage Accuracy, Safety Rating: CAT IV, 9 VDC Alkaline Battery Power Source, -20 to 70 deg C Operating, 10.6 in H x 4.1 in W x 1.9 in D Dimensions

Manufacturer PN: 61-773

UPC:  78325066420

Kendall Electric Inc PN: 2784453

Invoice Description:

61-773 IDL 1000A CLAMP W/TRMS


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

IDEAL® TightSight® 61-773 770 True RMS Clamp Meter, 999.9 A at 750 V AC, 999.9 V DC, 9999 Ohm, 20 to 400 Hz, 2 in Jaw, 4 Digit LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The new feature-rich IDEAL TightSight® clamp meters are built to professional quality standards to withstand tough use in commercial and industrial settings. The high frequency Rejection (HFR) feature measures accurately even in noisy electrical environments. For everything from load measurement to troubleshooting industrial motors and adjustable speed drives (ASDs), the new TightSight clamps bring speed, accuracy, safety and ease-of-use together in one rugged meter line.
IDEAL® TightSight® Clamp Meter, True RMS, Series: 770, 999.9 A at 750 V AC, 999.9 V DC Electrical Rating, 9999 Ohm Resistance, 20 to 400 Hz Frequency, 2 in Jaw, 4 Digit LCD Display, 2 % AC Current Accuracy, 1.0% AC/DC Voltage Accuracy, Safety Rating: CAT IV, 9 VDC Alkaline Battery Power Source, -20 to 70 deg C Operating, 10.6 in H x 4.1 in W x 1.9 in D Dimensions

Specifications

 AC Current Accuracy 2 %
 Application For industrial and commercial environments
 Brand Name IDEAL
 Dimensions 10.6 in H x 4.1 in W x 1.9 in D
 Electrical Ratings 999.9 A at 750 V AC, 999.9 V DC
 Frequency Rating 20 to 400 Hz
 Jaw Capacity 2 in
 Manufacturer Part Number 61-773
 Operating Temperature -20 to 70 deg C
 PART NUMBER KEYWORDS 61-773 ; 61773 ; 783250664207 ; 78325066420 ; 00783250664207 ; 0783250664207
 Power Source 9 V DC Alkaline Battery
 Resistance 9999 Ohm
 Series 770
 Standards/Approvals UL 61010, CE Certified|C 12966, Safety Rated CAT IV|RoHS Compliant
 Type True RMS
 Voltage Accuracy 1.0% AC/DC

Features

▪ 1000 A true-rms clamps for a variety of industrial and commercial environments
▪ 2% AC current, 2% DC current, 1% AC voltage, 1% DC voltage, 1.5% resistance, 5% capacitance, 0.5% frequency, 1% AC voltage accuracy
▪ -20 to 70 deg C operation, -20 to 60 deg C storage temperature rating, 4000 uF capacitance
▪ Tapered jaws with hook tip
▪ Audible continuity
▪ Unique TightSight bottom display makes hard-to-reach measurements convenient
▪ Easy-to-read displays feature large numbers and green glowing backlight
▪ CAT IV rating for maximum safety
▪ Frequency, capacitance, peak, data hold, max/min
▪ On-screen low battery indicator warning user an hour before power is shut off to avoid inaccurate readings
▪ Increased operating range from -20 deg C to + 70 deg C
▪ Zeroing display and low amp measurement feature
▪ High frequency Rejection to assure accuracy when measuring in noisy electrical environments
▪ Hardened meter case and dial construction to withstand heavy duty commercial and industrial settings
