Ideal Industries
61-737 IDEAL 400A AC TRMS CLAMP METER, W/NCVT & TEMP

Mouse over image to zoom, click to enlarge

  • 61-737 IDEAL 400A AC TRMS CLAMP METER, W/NCVT & TEMP
  • 61-737 IDEAL 400A AC TRMS CLAMP METER, W/NCVT & TEMP
  • 61-737 IDEAL 400A AC TRMS CLAMP METER, W/NCVT & TEMP
  • 61-737 IDEAL 400A AC TRMS CLAMP METER, W/NCVT & TEMP

Description: IDEAL® TightSight® Clamp Meter, Digital, 600 V AC, 400 A Electrical Rating, 40 MOhm Resistance, 10 to 9999 Hz Frequency, 1.4 in Jaw, 4000 Count, Backlit LED Display, True RMs AC Response, +/-2% + 9 AC Current Accuracy, +/-1.5% + 5 Voltage Accuracy, Frequency Counter: +/-0.1% + 5, Safety Rating: Cat III 600 VAC, (3) 1.5 V AAA Battery Power Source, -40 to 1832 deg F Operating, 9.5 in L x 2.8 in W x 1.8 in H Dimensions

Manufacturer PN: 61-737

UPC:  78325081025

Kendall Electric Inc PN: 4370796

Invoice Description:

61-737 IDEAL 400A AC TRMS CLAMP METER, W/NCVT & TEMP


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

IDEAL® TightSight® 61-737 Digital Clamp Meter With Backlit, 600 V AC, 400 A, 40 MOhm, 10 to 9999 Hz, 1.4 in Jaw, Backlit LED Display

Log In for Pricing and Availability




Description

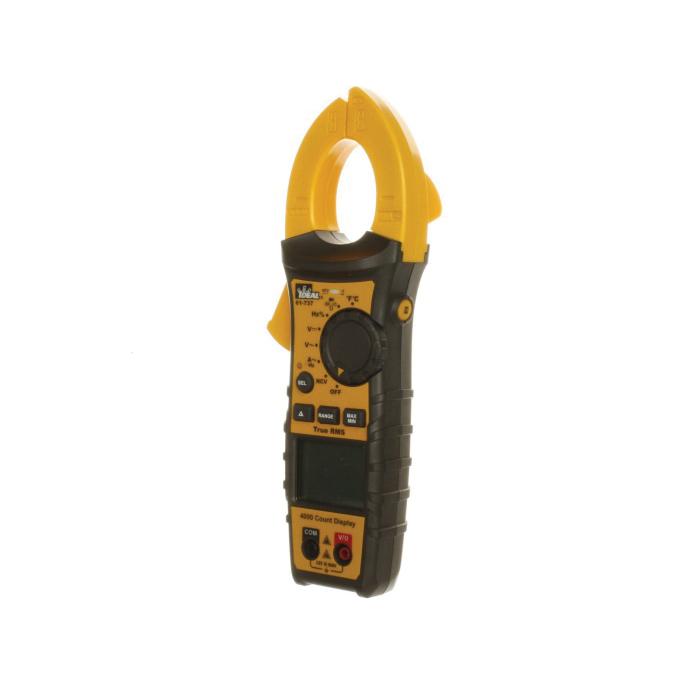

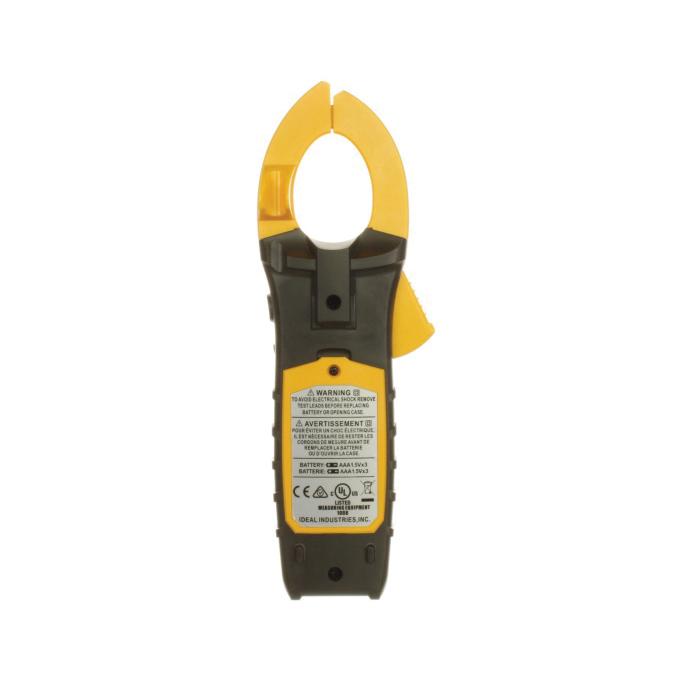

The IDEAL® 61-737 Clamp Meter is a Cat III auto ranging true root mean square (TRMS) digital clamp meter that measures up to 400 A AC via the clamp head. It measures up to 600 VAC and DC, frequency, resistance, continuity, capacitance, and diodes via test leads (included) and measures temperature deg F/deg C via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40 to 600 V via a non-contact sensor in the right tip of the clamp. The large display can be backlit when working in poor or zero lighting conditions. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30 V, when continuity is detected and when the NCV senses voltage within its set range. The clamp head has a built-in probe tip holder on the backside of the right clamp to allow measurements holding the clamp in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL® meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. This meter features HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. The meter comes with 3 1.5 V AAA Batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probe and thermocouple storage.
IDEAL® TightSight® Clamp Meter, Digital, 600 V AC, 400 A Electrical Rating, 40 MOhm Resistance, 10 to 9999 Hz Frequency, 1.4 in Jaw, 4000 Count, Backlit LED Display, True RMs AC Response, +/-2% + 9 AC Current Accuracy, +/-1.5% + 5 Voltage Accuracy, Frequency Counter: +/-0.1% + 5, Safety Rating: Cat III 600 VAC, (3) 1.5 V AAA Battery Power Source, -40 to 1832 deg F Operating, 9.5 in L x 2.8 in W x 1.8 in H Dimensions

Specifications

 AC Current Accuracy +/-2% + 9
 AC Response True RMs
 Application Measures AC Current, AC/DC Voltage, Frequency, Resistance, Continuity, Capacitance, Diodes, Temperature and Senses AC Voltage
 Brand Name IDEAL
 Counts 4000
 Dimensions 9.5 in L x 2.8 in W x 1.8 in H
 Electrical Ratings 600 V AC, 400 A
 Frequency Counter +/-0.1% + 5
 Frequency Rating 10 to 9999 Hz

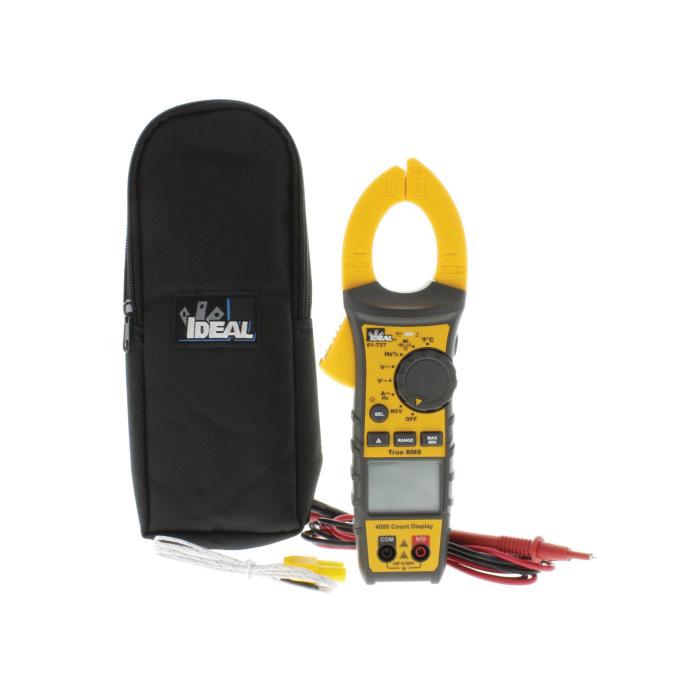

 Includes Soft Case, Test Leads, Batteries and K-Type Thermocouple
 Jaw Capacity 1.4 in
 Manufacturer Part Number 61-737
 Operating Temperature -40 to 1832 deg F
 PART NUMBER KEYWORDS 61-737 ; 61737 ; 17065480 ; 783250810253 ; 78325081025 ; 00783250810253 ; 0783250810253
 Power Source (3) 1.5 V AAA Battery
 Resistance 40 MOhm
 Standards/Approvals RoHS Compliant|cULus Listed|CE Certified|RCM Certified|CISPR 22 3rd Edition. Class B/32/11|FCC 15. 107 Section 15.109 (g)|ICES-003|EN 61326-2-2 Sec 6.4.2.101/55032|47 CFR 15 B15.103|ANSI/UL/IEC EN 61010-1, Edition 3 (2015-07-15)|IEC 61010-2-032 (2019-06)/61010-2-033 (2019-06)/61010-1, Edition 3 (2010-06) +AMD1 (2016-12)
 Type Digital
 Video Links
 Voltage Accuracy +/-1.5% + 5

Features

▪ Provides True RMS AC voltage and current for accurate measurements on non-linear signals
▪ Built-in probe tip holder and hanging strap clip allows safer, easier measurement
▪ Large easy to read l backlit display, allow for safer/faster work in poorly lit environments
