Ideal Industries

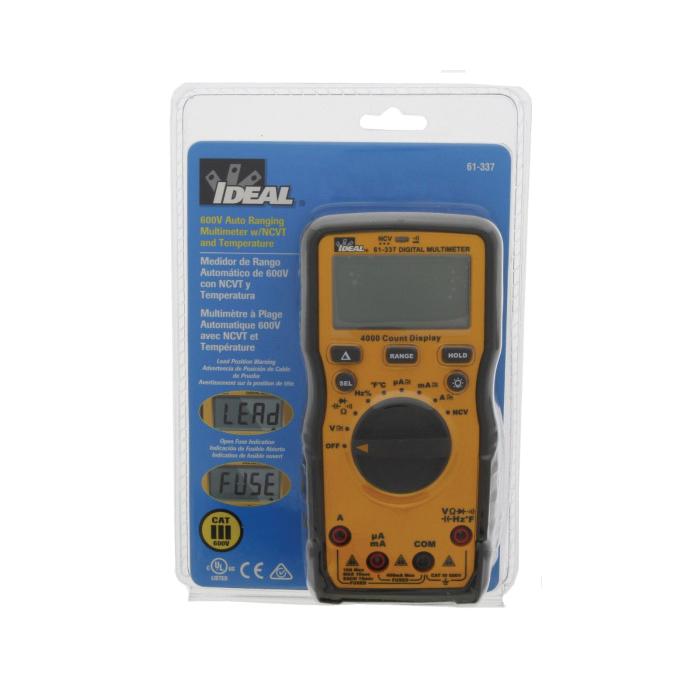

61-337 IDEAL 600V AUTO RANGE MULTIMETER W/NCVT & TEMP

Mouse over image to zoom, click to enlarge

  • 61-337 IDEAL 600V AUTO RANGE MULTIMETER W/NCVT & TEMP
  • 61-337 IDEAL 600V AUTO RANGE MULTIMETER W/NCVT & TEMP
  • 61-337 IDEAL 600V AUTO RANGE MULTIMETER W/NCVT & TEMP
  • 61-337 IDEAL 600V AUTO RANGE MULTIMETER W/NCVT & TEMP

Description: IDEAL® Digital Multimeter, Auto Ranging, 600 V AC/DC, 4000 m V AC/DC Measuring, 600 V AC/DC, 10 A, 10 to 9990 Hz Frequency, 40 MOhm Resistance, Safety Rating: Cat III 600 V, 4000 uF Capacitance, +/-1.3% + 5 Voltage, +/-2.5% + 5 Current Accuracy, 1 V, 0.01 A Resolution, Backlit LCD Display, (3) 1.5 V AAA Alkaline Battery, 0.5 to 0.8 V Diode Test, 6.54 in L x 3.23 in W x 1.89 in H Dimensions, -40 to 1832 deg F

Manufacturer PN: 61-337

UPC:  78325081051

Kendall Electric Inc PN: 4370627

Invoice Description:

61-337 IDEAL 600V AUTO RANGE MULTIMETER W/NCVT & TEMP


SPEC SHEET

▸ See All in Digital Multimeters


How Can We Make This Page Better?

IDEAL® 61-337 Auto Ranging Digital Multimeter With NCVT, Temp, 600 V AC/DC, 4000 m V AC/DC Measuring, 600 V AC/DC, 10 A, 40 MOhm, Backlit LCD Display

Log In for Pricing and Availability




Description

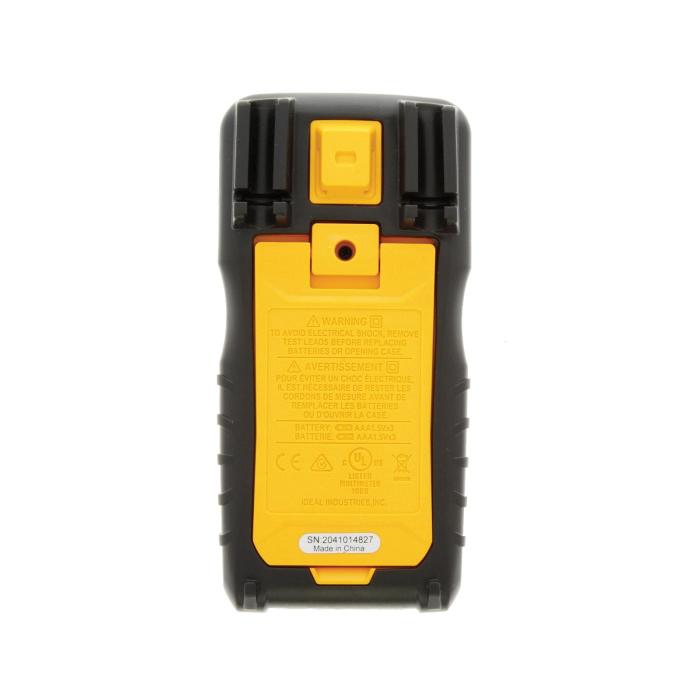

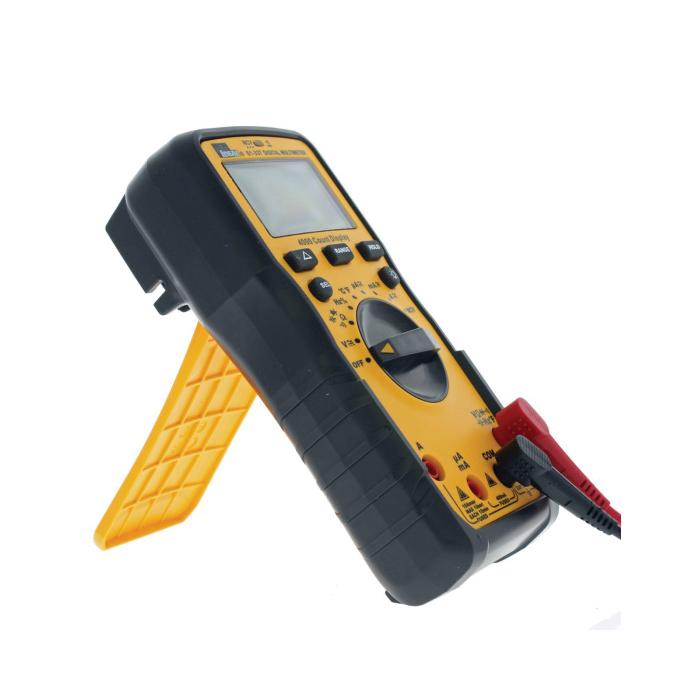

The IDEAL® 61-337 Digital Multi Meter is a Cat III 600 rated auto ranging digital multi meter that measures up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 600 VAC and DC, AC V, frequency, resistance, continuity, capacitance, and diodes via test leads (included) and measures temperature deg F/deg C via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40 to 600 V via a non-contact sensor in the top center of the meter. It's display can be backlit. The unit uses an illuminated red LED in the center of the meter and emits audible tones to notify when voltage is above 30 V, when continuity is detected and when the NCV senses voltage within its set range. The rubber boot has two probe storage points, has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL® meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. A rugged over molding enhances grip and drop protection. This meter features HOLD, Relative, Range, and selectable auto power Off functions. The meter comes with 3 1.5 V AAA Batteries and an easy open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.
IDEAL® Digital Multimeter, Auto Ranging, 600 V AC/DC, 4000 m V AC/DC Measuring, 600 V AC/DC, 10 A, 10 to 9990 Hz Frequency, 40 MOhm Resistance, Safety Rating: Cat III 600 V, 4000 uF Capacitance, +/-1.3% + 5 Voltage, +/-2.5% + 5 Current Accuracy, 1 V, 0.01 A Resolution, Backlit LCD Display, (3) 1.5 V AAA Alkaline Battery, 0.5 to 0.8 V Diode Test, 6.54 in L x 3.23 in W x 1.89 in H Dimensions, -40 to 1832 deg F

Specifications

 Accuracy +/-1.3% + 5 Voltage, +/-2.5% + 5 Current
 Amperage Rating 10 A
 Application Measures AC/DC Current, AC/DC Voltage, Frequency, Resistance, Continuity, Capacitance, Diodes, Temperature and Senses AC Voltage
 Battery Type (3) 1.5 V AAA Alkaline
 Brand Name IDEAL
 Capacitance 4000 uF
 Dimensions 6.54 in L x 3.23 in W x 1.89 in H
 Diode Test 0.5 to 0.8 V
 Frequency Rating 10 to 9990 Hz
 Includes Soft Case, Test Leads, Batteries and K-Type Thermocouple
 Manufacturer Part Number 61-337
 Measuring Range 600 V AC/DC, 4000 m V AC/DC
 PART NUMBER KEYWORDS 61-337 ; 61337 ; 17065483 ; 783250810512 ; 78325081051 ; 00783250810512 ; 0783250810512
 Resistance 40 MOhm
 Standards/Approvals RoHS Compliant|cULus Listed|CE Certified|RCM Certified|CISPR 22 3rd Edition. Class B/32/11|FCC 15. 107 Section 15.109 (g)|ICES-003|EN 61326-2-2 Sec 6.4.2.101/55032|47 CFR 15 B15.103|ANSI/UL/IEC EN 61010-1, Edition 3 (2015-07-15)|IEC 61010-2-032 (2019-06)/61010-2-033 (2019-06)/61010-1, Edition 3 (2010-06) +AMD1 (2016-12)
 Temperature Rating -40 to 1832 deg F
 Type Auto Ranging
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ LEAD Position Warning and Open FUSE indication
▪ Built-in probe tip holders and hanging strap clip allows safer, easier measurement (Hanging Strap sold separately)
▪ Backlit display, allows for safer/faster work in poorly lit environments
