ABB
  • 600ECS-G3 T-B POWER CABLE SEAL KIT
  • 600ECS-G3 T-B POWER CABLE SEAL KIT
  • 600ECS-G3 T-B POWER CABLE SEAL KIT
  • 600ECS-G3 T-B POWER CABLE SEAL KIT

Description: Elastimold® Cold Shrink Seal, Jacketed Copper Tape Shielding, 1.28 to 2.3 in Jacket Outside Diameter, Specifications: 2-3/4 in Dia Install, -40 to 65 deg C, Copper

Manufacturer PN: 600ECS-G3

UPC:  78378665337

Kendall Electric Inc PN: 3494204

Invoice Description:

600ECS-G3 T-B POWER CABLE SEAL KIT


SPEC SHEET

▸ See All in Utility UD Jacket Seals


How Can We Make This Page Better?

Elastimold® 600ECS-G3 Cold Shrink Seal With Copper Braid, Constant Force Spring, Jacketed Copper Tape Shielding, 1.28 to 2.3 in OD Jacket

Log In for Pricing and Availability




Description

The 600ECS-G3 jacketed cable sealing kits are designed for use on jacketed copper tape shield cables where a means of resealing the jacket is required on elbows or other terminating accessory installations. Using the field-proven reliability of retained memory cold shrink EPDM rubber, the damaging effects of moisture ingress can be prevented. The chemical, ultraviolet and ozone resistance of this material makes it very suitable for both indoor and outdoor applications. The rugged yet resilient nature of the 600ECS is superior to tape or heat shrinkable products.
Elastimold® Cold Shrink Seal, Jacketed Copper Tape Shielding, 1.28 to 2.3 in Jacket Outside Diameter, Specifications: 2-3/4 in Dia Install, -40 to 65 deg C, Copper

Specifications

 Application For medium voltage cables with copper tape shield
 Brand Name Elastimold®

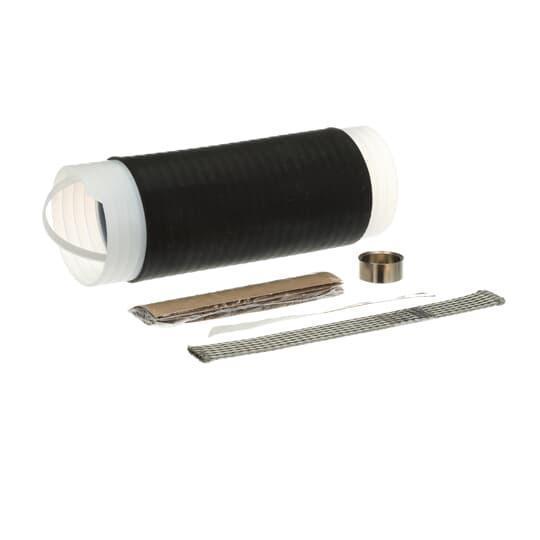

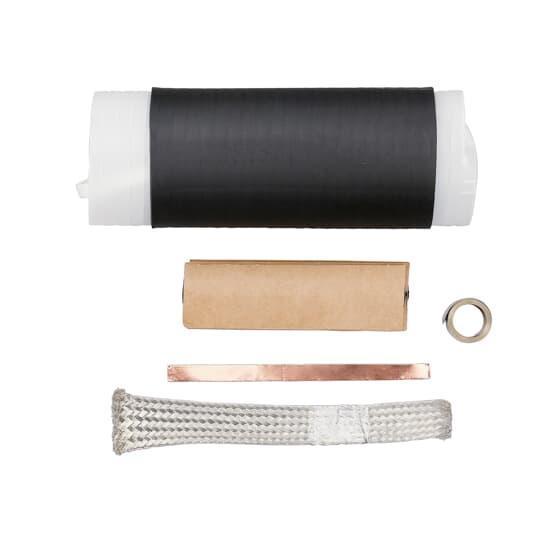

 Includes (3) 350-37-3 Mastics, (1) 600ECS Cold Shrink Tube, (1) 200-28-1 Conductive Copper Tape, (1) 200-27-2 Flat Copper Braid, (1) 200-30-2 Spring Coil and (1) IS-0460 Instruction Sheet
 Jacket Outside Diameter 1.28 to 2.3 in
 Manufacturer Part Number 600ECS-G3
 Material Copper
 Shielding Type Jacketed Copper Tape
 Specifications 2-3/4 in Dia Install
 Temperature Rating -40 to 65 deg C

Features

▪ Mastic strips for sealing purposes
