Eaton

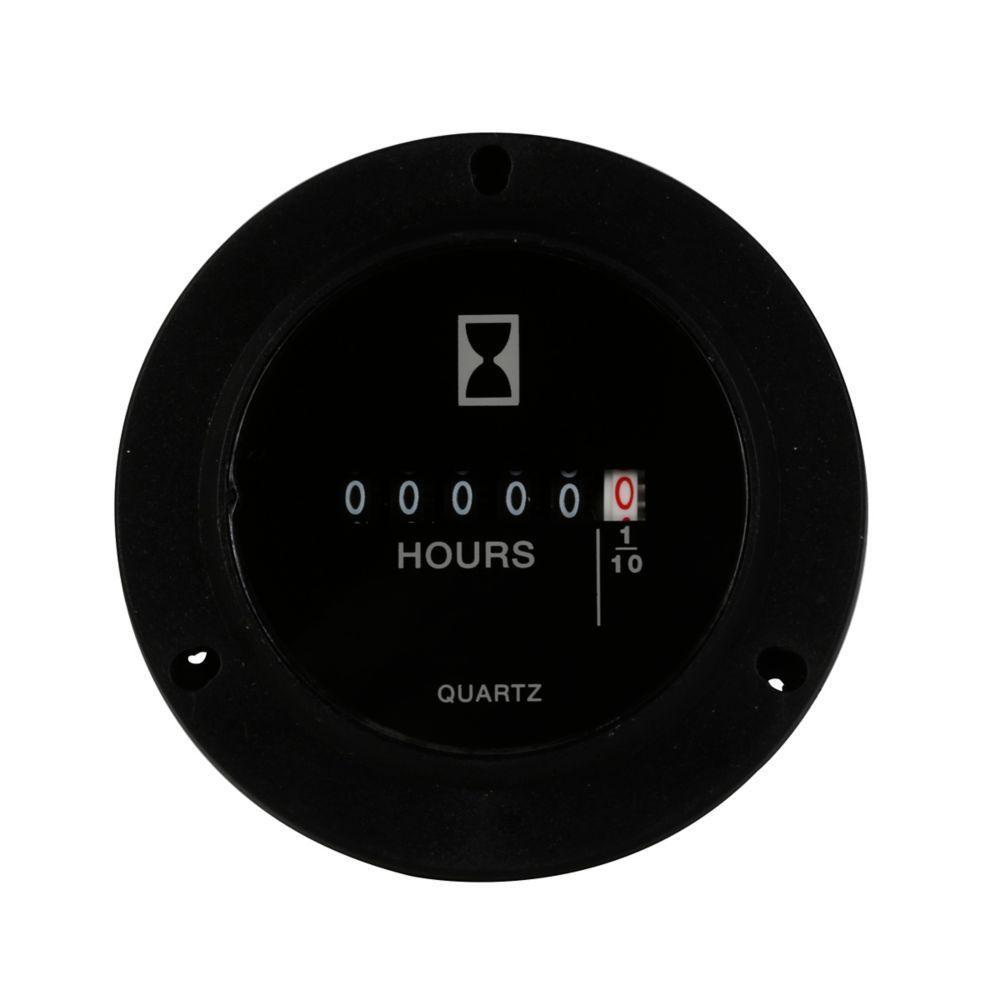

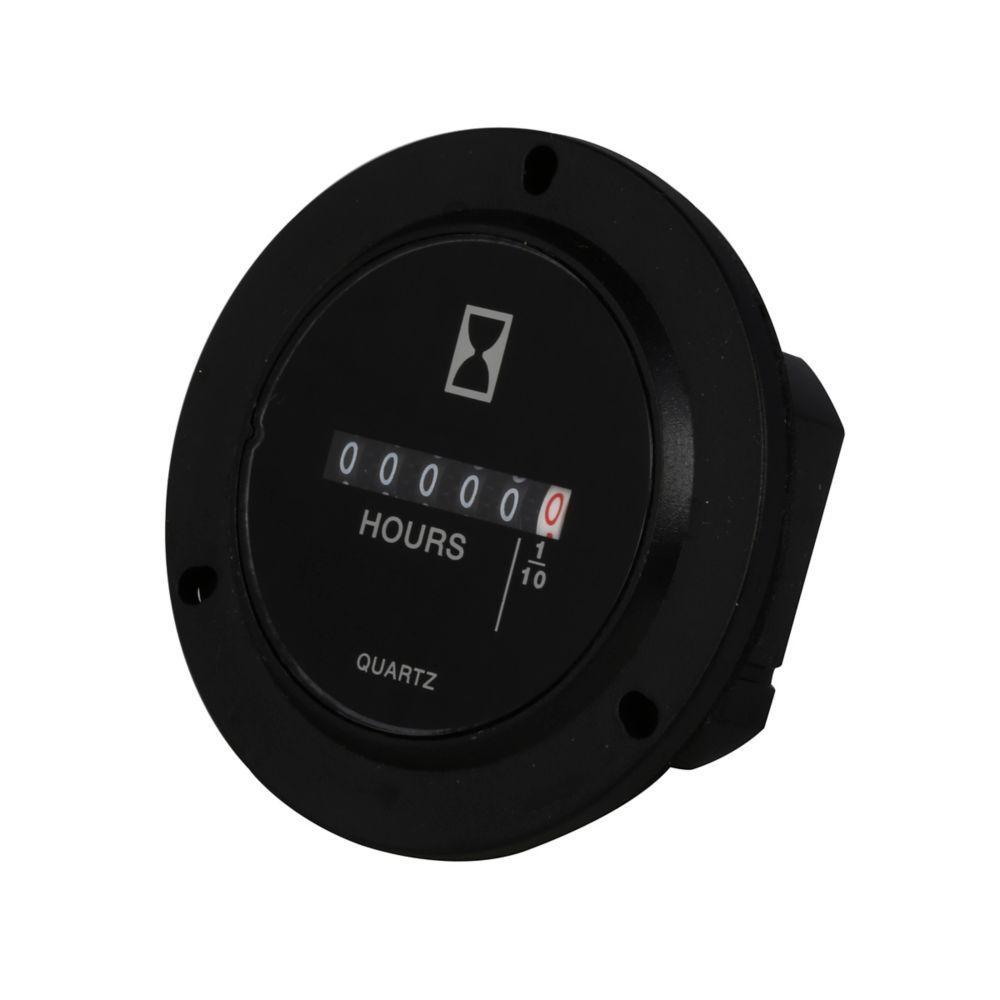

6-T-3H-508RPM-406 DUR ELECTRIC HOUR METER

Mouse over image to zoom, click to enlarge

  • 6-T-3H-508RPM-406 DUR ELECTRIC HOUR METER
  • 6-T-3H-508RPM-406 DUR ELECTRIC HOUR METER
  • 6-T-3H-508RPM-406 DUR ELECTRIC HOUR METER

Description: EATON Time Meter, Hour Model, 6 Digit, Round LCD, 115 V AC Input, NEMA 4X/IP65, -22 to 149 deg F, 50 to 60 Hz, Panel Mount, 3.5 in L x 1.94 in W x 2.42 in H

Manufacturer PN: 6-T-3H-508RPM-406

UPC:  78668511469

Kendall Electric Inc PN: 2570395

Invoice Description:

6-T-3H-508RPM-406 DUR ELECTRIC HOUR METER


SPEC SHEET

▸ See All in Hour Meters


How Can We Make This Page Better?

EATON 6-T-3H-508RPM-406 Hour Model Time Meter, 6 Digits, Round LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON Time Meter, Hour Model, 6 Digit, Round LCD, 115 V AC Input, NEMA 4X/IP65, -22 to 149 deg F, 50 to 60 Hz, Panel Mount, 3.5 in L x 1.94 in W x 2.42 in H

Specifications

 Application General Elapsed Time, Utility Vehicles, Construction Machines, Generators, Fork-Lift Trucks, Car Washes, Outside Areas, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Dimensions 3.5 in L x 1.94 in W x 2.42 in H
 Enclosure NEMA 4X/IP65
 Frequency Rating 50 to 60 Hz
 Input 115 V AC
 Manufacturer Part Number 6-T-3H-508RPM-406
 Mounting Type Panel
 Number Of Digits 6
 PART NUMBER KEYWORDS 6-T-3H-508RPM-406 ; 6T3H508RPM406 ; 9568066 ; 786685114699 ; 78668511469 ; 00786685114699
 Standards/Approvals UL Recognized
 Temperature Rating -22 to 149 deg F
 Type Hour Model

Features

▪ 6-digit hour meter for round panel cutout
▪ Low cost, waterproof, NEMA 4X protection
▪ 115 VAC input voltage

Resources

 Catalog Page
 Product Data Sheet
