United Technologies

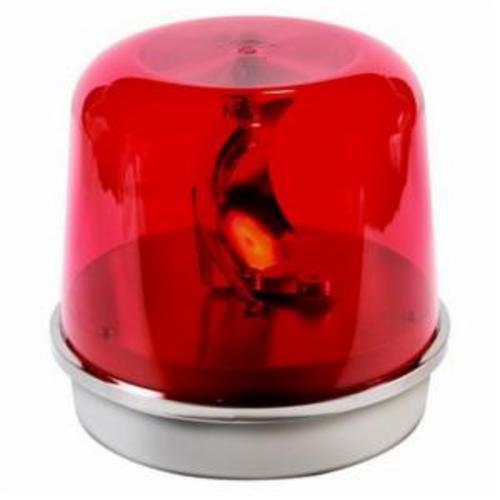

58R-N5-100WH EDW ROT RED 120AC

Mouse over image to zoom, click to enlarge

  • 58R-N5-100WH EDW ROT RED 120AC
  • 58R-N5-100WH EDW ROT RED 120AC

Description: Edwards Signaling™ Rotating Beacon, Heavy Duty High Profile, Series: 58 Series, 120 V AC, 1 A, 100 W Wattage, Cylindrical Shape, 8-1/16 in Diameter, Halogen Lamp, Red, 65 fpm Flash, 1620 cd Light Output, 1000 hr Average Life, Specifications Met: UL 1638, UL 1604, cUL Listed, Class I, Div 2, Groups A, B, C, D, Class II, Div 2, Groups F, G, Class III, Div 1, Screw Mounting, NEMA 4X, -31 to 150 deg F, Polycarbonate Dome Housing Material, 7-7/8 in H Dimensions

Manufacturer PN: 58R-N5-100WH

UPC:  78264030765

Kendall Electric Inc PN: 2125115

Invoice Description:

58R-N5-100WH EDW ROT RED 120AC

▸ See All in Rotating Beacons


How Can We Make This Page Better?

Edwards Signaling™ 58R-N5-100WH 58 Series Heavy Duty High Profile Rotating Beacon, 120 V AC, Halogen Lamp, 8-1/16 in Dia, Screw Mount, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Edwards 58 series rotating beacons are heavy duty visual signals suitable for use in hazardous indoor and outdoor applications where a corrosion-resistant NEMA type 4X enclosure is required.
Edwards Signaling™ Rotating Beacon, Heavy Duty High Profile, Series: 58 Series, 120 V AC, 1 A, 100 W Wattage, Cylindrical Shape, 8-1/16 in Diameter, Halogen Lamp, Red, 65 fpm Flash, 1620 cd Light Output, 1000 hr Average Life, Specifications Met: UL 1638, UL 1604, cUL Listed, Class I, Div 2, Groups A, B, C, D, Class II, Div 2, Groups F, G, Class III, Div 1, Screw Mounting, NEMA 4X, -31 to 150 deg F, Polycarbonate Dome Housing Material, 7-7/8 in H Dimensions

Specifications

 Amperage Rating 1 A
 Application For hazardous location requirements in industrial, commercial and institutional applications
 Average Life 1000 hr
 Brand Name Edwards Signaling™
 Color Red
 Dimensions 7-7/8 in H
 Flash Rate 65 fpm
 Housing Material Polycarbonate Dome
 Lamp Type Halogen
 Light Output 1620 cd
 Manufacturer Part Number 58R-N5-100WH
 Mounting Type Screw
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 58R-N5-100WH ; 58RN5100WH ; 782640307656 ; 78264030765 ; 00782640307656
 Series 58 Series
 Shape Cylindrical
 Specifications Met UL 1638, UL 1604, cUL Listed, Class I, Div 2, Groups A, B, C, D, Class II, Div 2, Groups F, G, Class III, Div 1
 Temperature Rating -31 to 150 deg F
 Type Heavy Duty High Profile
 Voltage Rating 120 V AC
 Wattage 100 W

Features

▪ Bayonet base
▪ Motor driven reflector
▪ It has a motor driven reflector and 100 W bayonet base halogen lamp
▪ For weatherproof applications, the unit must be mounted vertically, with the dome facing up
