3M

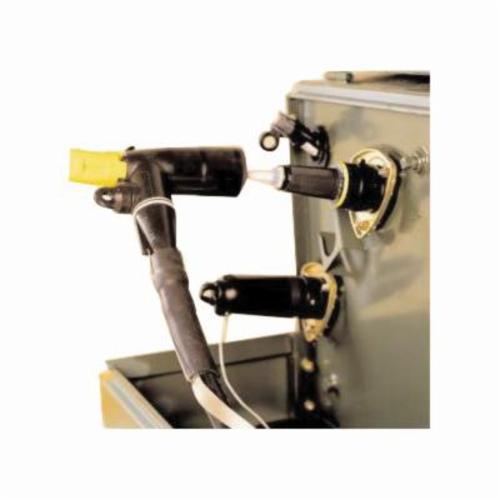

5810-C-4/0 3M 15KV-200A INDUSTRIAL LOADBREAK ELBOW CONNECTOR 05400704783 7000132802

Mouse over image to zoom, click to enlarge

  • 5810-C-4/0 3M 15KV-200A INDUSTRIAL LOADBREAK ELBOW CONNECTOR 05400704783 7000132802
  • 5810-C-4/0 3M 15KV-200A INDUSTRIAL LOADBREAK ELBOW CONNECTOR 05400704783 7000132802

Description: 3M™, 7000132802, Loadbreak Elbow, Series: 5810, 15 kV, 200 A, 4/0 AWG to 250 kcmil Conductor, 0.85 to 1.1 in Diameter Cable, Coppertop Compression Connection, Specifications: 100/133% Insulation, Compact/Solid/Stranded Cable, EPDM Rubber Insulation

Manufacturer PN: 5810-C-4/0

UPC:  05400704783

Kendall Electric Inc PN: 2228424

Invoice Description:

5810-C-4/0 3M 15KV-200A INDUSTRIAL LOADBREAK ELBOW CONNECTOR 05400704783 7000132802


SPEC SHEET

▸ See All in Loadbreak Connectors


How Can We Make This Page Better?

3M™ 7000132802 5810 Loadbreak Elbow, 15 kV, 200 A, 4/0 AWG to 250 kcmil Conductor, 0.85 to 1.1 in Dia Cable, EPDM Rubber Insulation

Log In for Pricing and Availability




Description

3M™ 200 a industrial loadbreak elbow 5810 series is a fully shielded and insulated plug-in separable connector for connecting 5 to 15 kV underground cable to transformers, switchgear and junctions equipped with loadbreak bushings. The elbow and the bushing insert comprise the essential components of all loadbreak connections. The 3M™ 200 a industrial loadbreak elbow 5810 series kits are designed for use on tape shield, wire shield, UniShield® and jacketed concentric neutral types of cables. The jacket seal for each of these cable types is accomplished by use of a specially designed cold shrink tube. This tube seals from the bottom of the elbow to the cable jacket. Also included in the kit are all the ground assemblies necessary to ground both the cable and the elbow. The loadbreak elbows are molded using high quality peroxide cured EPDM insulation. Standard features include a copper top connector, tin plated copper loadbreak probe with an ablative arc follower tip, stainless steel reinforced pulling eye and a capacitive test point. The copper top compression connector is a standard item to transition from the cable to the loadbreak probe. An aluminum crimp barrel is inertia welded to a copper lug. The aluminum barrel makes the connector easy to crimp on both aluminum and copper conductors and the copper lug ensures a reliable, tight, cool operating connection with the loadbreak probe. Meets requirements of ANSI/IEEE standard 386.
3M™, 7000132802, Loadbreak Elbow, Series: 5810, 15 kV, 200 A, 4/0 AWG to 250 kcmil Conductor, 0.85 to 1.1 in Diameter Cable, Coppertop Compression Connection, Specifications: 100/133% Insulation, Compact/Solid/Stranded Cable, EPDM Rubber Insulation

Specifications

 Amperage Rating 200 A
 Application For connecting 5 to 15 kV underground cable to transformers, switchgear and junctions equipped with loadbreak bushings and industrial applications
 Brand Name 3M
 Cable Diameter 0.85 to 1.1 in
 Conductor Size 4/0 AWG to 250 kcmil
 Connection Type Coppertop Compression
 Manufacturer Part Number 7000132802
 Material EPDM Rubber Insulation
 Series 5810
 Specifications 100/133% Insulation, Compact/Solid/Stranded Cable
 Standards/Approvals ANSI/IEEE 386
 Voltage Rating 15 kV

Features

▪ Elbow and the bushing insert comprise the essential components of all load break connections
▪ A copper top connector, tin plated copper load break probe with an ablative arc follower tip, stainless steel reinforced pulling eye and a capacitive test point
▪ An aluminum crimp barrel is inertia welded to a copper lug
▪ Specially designed for use on tape shield, wire shield, UniShield® and jacketed concentric neutral types of cables
▪ Cold shrink tube seals from the bottom of the elbow to the cable jacket
