Generac Power Systems

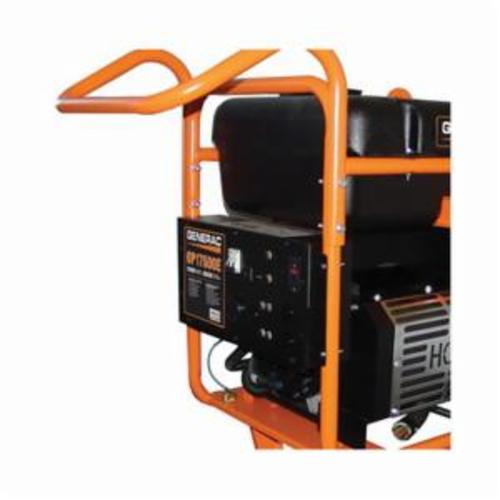

5735 PORTABLE GENERATOR 17,500 WATT ELECTRIC START GENERAC

Mouse over image to zoom, click to enlarge

  • 5735 PORTABLE GENERATOR 17,500 WATT ELECTRIC START GENERAC
  • 5735 PORTABLE GENERATOR 17,500 WATT ELECTRIC START GENERAC
  • 5735 PORTABLE GENERATOR 17,500 WATT ELECTRIC START GENERAC

Description: Generac® Portable Generator, Brushless, Series: GP17500E, 120/240 VAC, 145.8 A, 60 Hz, 26250 W Starting/17500 W Running, OHVI Engine, Engine Specifications: 992 cc Displacement, Electric Engine Starter, 3600 rpm, Gas, 16 gal Fuel Tank, 10 hr Run, 12.3 in Pneumatic Wheel Caster

Manufacturer PN: 5735

UPC:  69647105735

Kendall Electric Inc PN: 2680247

Invoice Description:

5735 PORTABLE GENERATOR 17,500 WATT ELECTRIC START GENERAC

▸ See All in Portable Generators


How Can We Make This Page Better?

Generac® 5735 GP17500E Brushless Portable Generator, 120/240 VAC, 145.8 A, 26250 W Starting/17500 W Running Power Rating, OHVI Engine, 3600 rpm Speed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The most powerful portable generator on the market is an exceptional value. Powerful enough to start many 5-ton air conditioning units and can provide power for up to 16 circuits.
Generac® Portable Generator, Brushless, Series: GP17500E, 120/240 VAC, 145.8 A, 60 Hz, 26250 W Starting/17500 W Running, OHVI Engine, Engine Specifications: 992 cc Displacement, Electric Engine Starter, 3600 rpm, Gas, 16 gal Fuel Tank, 10 hr Run, 12.3 in Pneumatic Wheel Caster

Specifications

 Amperage Rating 145.8 A
 Brand Name Generac
 Caster Type 12.3 in Pneumatic Wheel
 Engine Specifications 992 cc Displacement
 Engine Starter Type Electric
 Engine Type OHVI
 Frequency Rating 60 Hz
 Fuel Tank Capacity 16 gal
 Fuel Type Gas
 Includes Wheel Kit, Lifting Eye, Maintenance Kit and First Oil
 Manufacturer Part Number 5735
 PART NUMBER KEYWORDS 5735 ; 696471057355 ; 69647105735
 Power Rating 26250 W Starting/17500 W Running
 Run Time 10 hr
 Series GP17500E
 Speed 3600 rpm
 Standards/Approvals 49 State/EPA
 Type Brushless
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ 10W-30/SAE 30 recommended oil
▪ 48-1/2 in L x 31 in W x 39-1/2 in H
▪ 145.8 A/72.9 A rated/218.75 A/109.38 A maximum
▪ The Generac® OHVI® engine incorporates full pressure lubrication with automatic style spin-on oil filter for longer life engine
▪ Low-oil pressure shutdown automatically safeguards engine from damage
▪ Large capacity fuel tank with incorporated fuel gauge provides durability and extended run times
▪ Hardened 1-1/4 in steel tube cradle for added strength and durability
▪ Hour meter tracks maintenance intervals
▪ Heavy duty, pneumatic wheels for reliable portability
▪ Electric start, battery included, provides hassle-free start-up
▪ Idle control reduces noise and conserves fuel for extended run times
▪ Integrated lifting eye for easy transport and security on the jobsite
