569040 UD250A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 255AMP 600V UL INPUT (1) 6-250MCM OUTPUT (2) 10-1AWG (5) 14-4AWG (4) 14-6AWG

Mouse over image to zoom, click to enlarge

  • 569040 UD250A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 255AMP 600V UL INPUT (1) 6-250MCM OUTPUT (2) 10-1AWG (5) 14-4AWG (4) 14-6AWG
  • 569040 UD250A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 255AMP 600V UL INPUT (1) 6-250MCM OUTPUT (2) 10-1AWG (5) 14-4AWG (4) 14-6AWG

Description: nVent ERIFLEX Distribution Block, Series: ERI2, 600 V AC, 1000 V AC/DC, 250/255 A, 1 Pole, 1 Primary Connections/Pole, 11 Secondary Connection/Pole, (2) 8 to 1 AWG Wire, 100 kA Short Circuit Current Rating, Copper/Thermoplastic, Tin Plated, 1.93 in W x 1.99 in D x 3.79 in H

Manufacturer PN: 569040

UPC:  78285659420

Kendall Electric Inc PN: 2460620

Invoice Description:

569040 UD250A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 255AMP 600V UL INPUT (1) 6-250MCM OUTPUT (2) 10-1AWG (5) 14-4AWG (4) 14-6AWG


SPEC SHEET

▸ See All in Single Pole Distribution Blocks


How Can We Make This Page Better?

nVent ERIFLEX UD-250A ERI2 Distribution Block, 600 V AC, 1000 V AC/DC, 250/255 A, 1 Poles, (2) 8 to 1 AWG Wire, Copper/Thermoplastic

Log In for Pricing and Availability




Description

nVent ERIFLEX Distribution Block, Series: ERI2, 600 V AC, 1000 V AC/DC, 250/255 A, 1 Pole, 1 Primary Connections/Pole, 11 Secondary Connection/Pole, (2) 8 to 1 AWG Wire, 100 kA Short Circuit Current Rating, Copper/Thermoplastic, Tin Plated, 1.93 in W x 1.99 in D x 3.79 in H

Specifications

 Amperage Rating 250/255 A
 Brand Name nVent ERIFLEX
 Dimensions 1.93 in W x 1.99 in D x 3.79 in H
 Finish Tin Plated
 Includes 569040
 Manufacturer Part Number UD-250A
 Material Copper/Thermoplastic
 Number of Poles 1
 PART NUMBER KEYWORDS UD-250A ; UD250A ; 13747313 ; 569040 ; 782856594208 ; 78285659420 ; 8711893042672 ; 00782856594208
 Primary Connections Pole 1
 Secondary Connection Pole 11
 Series ERI2
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL 1059 E198301|cUL CSA C22.2 No. 158|E198301|UL 94V-0|CSA C22.2 No. 158-10, 70044370|IEC 60947-7-1|IEC 60529|IP20|EAC 0234267|RoHS Compliant
 Voltage Rating 600 V AC, 1000 V AC/DC

Features

▪ 24.5 kA short term withstand current (Icw) 1s
▪ 35 to 120 sq-mm and 6 AWG to 250 kcmil line side compact stranded wire size/(2) 6 to 35 sq-mm and (2) 8 to 1 AWG load side compact stranded wire size/(2) 6 to 25 sq-mm load side stranded wire size -ferrule
▪ Connects Eriflex flexibar on line side using FLG-250 flat terminal connection
▪ Tinned copper block allows for copper or aluminum conductor connections
▪ Screw retaining cover is hinged and removable
▪ Design allows for visual inspection of conductor and confirmation of connection

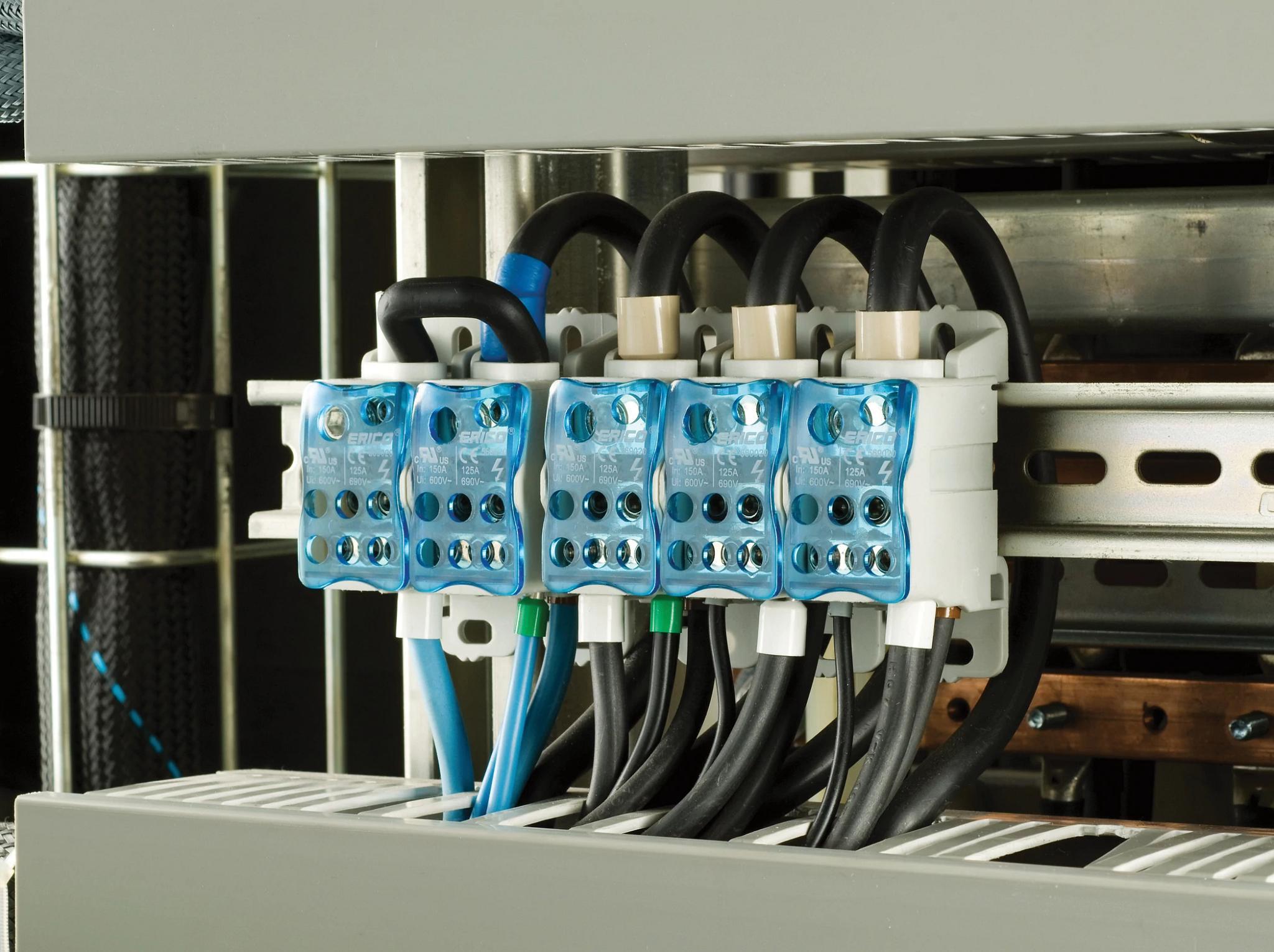

▪ Gangable for building multi-pole power blocks
▪ Easily clips onto Din rail or mounts to panel with screws
▪ 95% fill ratio
▪ Halogen free
▪ 51 kA peak short circuit current
