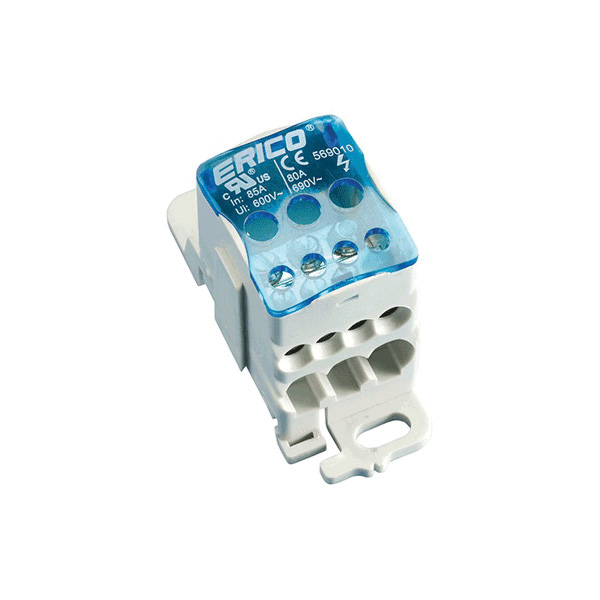

569010 UD80A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 85AMP 600V UL INPUT (1) 16-4AWG OUTPUT (4) 16-8AWG (2) 16-4AWG

Mouse over image to zoom, click to enlarge

  • 569010 UD80A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 85AMP 600V UL INPUT (1) 16-4AWG OUTPUT (4) 16-8AWG (2) 16-4AWG
  • 569010 UD80A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 85AMP 600V UL INPUT (1) 16-4AWG OUTPUT (4) 16-8AWG (2) 16-4AWG
  • 569010 UD80A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 85AMP 600V UL INPUT (1) 16-4AWG OUTPUT (4) 16-8AWG (2) 16-4AWG

Description: nVent ERIFLEX Distribution Block, Series: ERI2, 600 V AC, 1000 V AC/DC, 80/85 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, (2) 16 to 14 AWG Wire, 100 kA Short Circuit, Copper/Thermoplastic, Tin Plated, 2.72 in H x 1.18 in W x 1.82 in D Dimensions

Manufacturer PN: 569010

UPC:  78285659417

Kendall Electric Inc PN: 2456360

Invoice Description:

569010 UD80A ERICO DISTRIBUTION BLOCK DIN MOUNT 1POLE GANGABLE 85AMP 600V UL INPUT (1) 16-4AWG OUTPUT (4) 16-8AWG (2) 16-4AWG


SPEC SHEET

▸ See All in Single Pole Distribution Blocks


How Can We Make This Page Better?

nVent ERIFLEX UD-80A ERI2 Distribution Block, 600 V AC, 1000 V AC/DC, 80/85 A, 1 Poles, (2) 16 to 14 AWG Wire, Copper/Thermoplastic

Log In for Pricing and Availability




Description

nVent ERIFLEX Distribution Block, Series: ERI2, 600 V AC, 1000 V AC/DC, 80/85 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, (2) 16 to 14 AWG Wire, 100 kA Short Circuit, Copper/Thermoplastic, Tin Plated, 2.72 in H x 1.18 in W x 1.82 in D Dimensions

Specifications

 Amperage Rating 80/85 A
 Brand Name nVent ERIFLEX

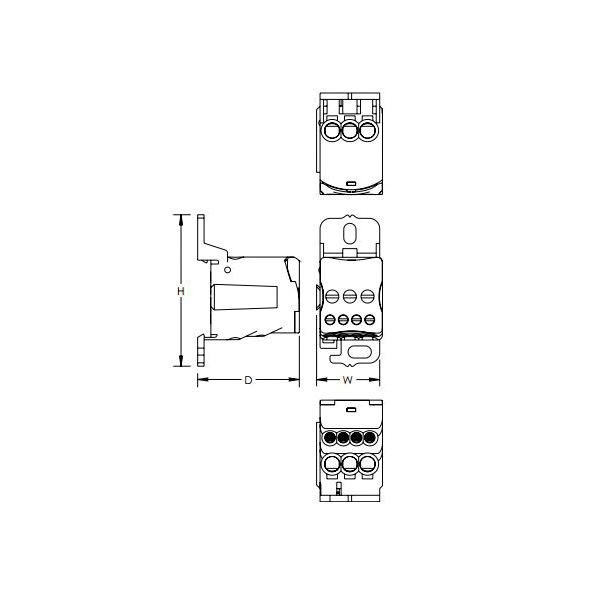

 Dimensions 2.72 in H x 1.18 in W x 1.82 in D
 Finish Tin Plated
 Includes 569010
 Manufacturer Part Number UD-80A
 Material Copper/Thermoplastic
 Number of Poles 1
 PART NUMBER KEYWORDS UD-80A ; UD80A ; 13747310 ; 569010 ; 782856594178 ; 78285659417 ; 8711893042641 ; 00782856594178
 Primary Connections Pole 1
 Secondary Connection Pole 6
 Series ERI2
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL 1059 E198301|cUL CSA C22.2 No. 158|E198301|UL 94V-0|CSA C22.2 No. 158-10, 70044370|IEC 60947-7-1|IEC 60529|IP20|EAC 0234267|RoHS Compliant
 Video Links
 Voltage Rating 600 V AC, 1000 V AC/DC

Features

▪ 3 kA short term withstand current (Icw) 1s
▪ 6 to 16 sq-mm and 16 to 4 AWG line side compact stranded wire size/(2) 2.5 to 16 sq-mm and 16 to 4 load side compact stranded wire size/(2) 2.5 to 16 sq-mm load side stranded wire size -ferrule
▪ Modular snap-together blocks for building multi-pole power blocks
▪ Increase the number of outputs with one input using a jumper wire
▪ Tinned copper block allows for copper or aluminum conductor connections
▪ Screw retaining cover is hinged and removable
▪ Design allows for visual inspection of conductor and confirmation of connection
▪ Gangable for building multi-pole power blocks
▪ Easily clips onto Din rail or mounts to panel with screws
▪ 95% fill ratio
▪ Halogen free
▪ 22 kA peak short circuit current
