Schneider Electric
  • 56370TD SQD RH99M GRD FLT RLY W/
  • 56370TD SQD RH99M GRD FLT RLY W/
  • 56370TD SQD RH99M GRD FLT RLY W/
  • 56370TD SQD RH99M GRD FLT RLY W/
  • 56370TD SQD RH99M GRD FLT RLY W/
  • 56370TD SQD RH99M GRD FLT RLY W/

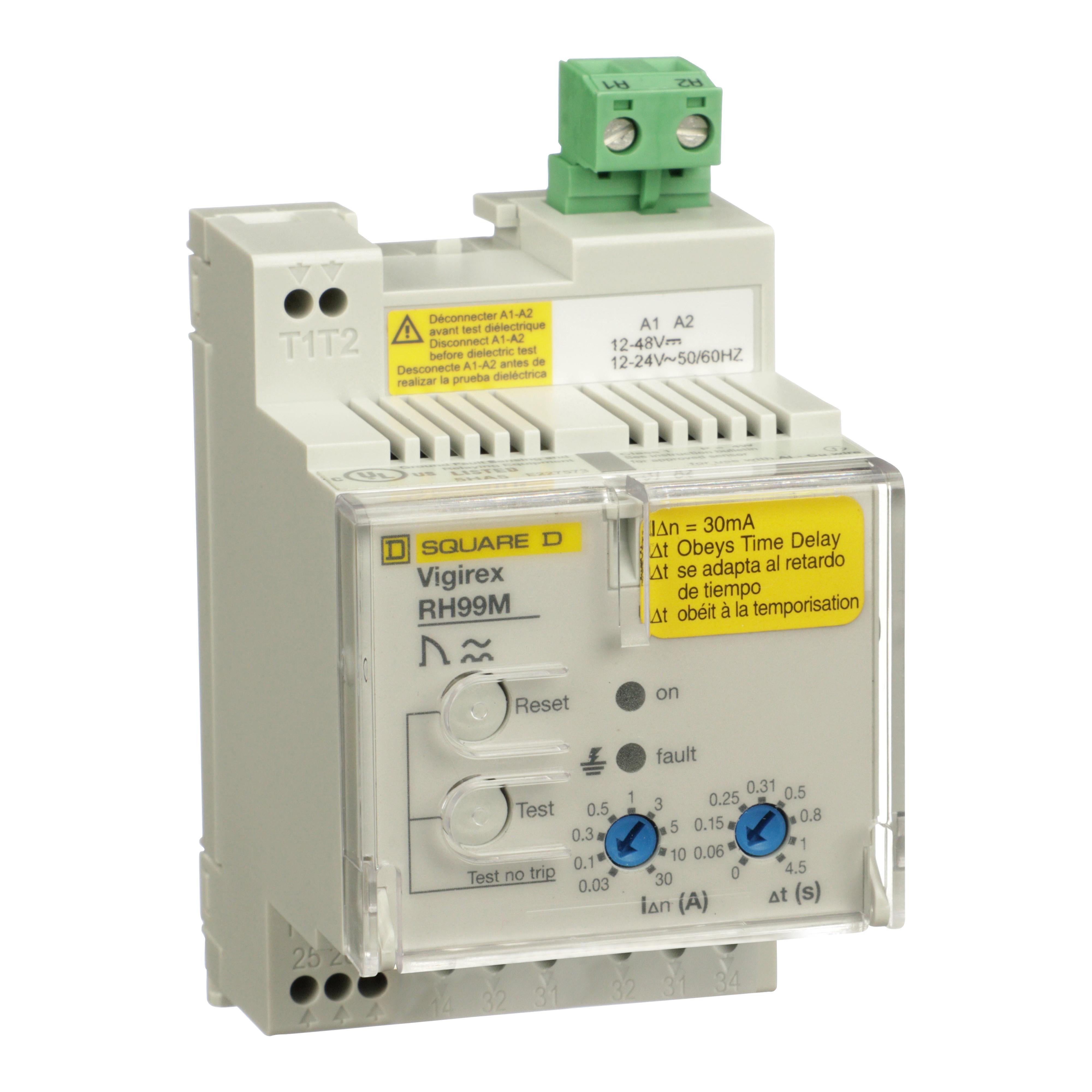

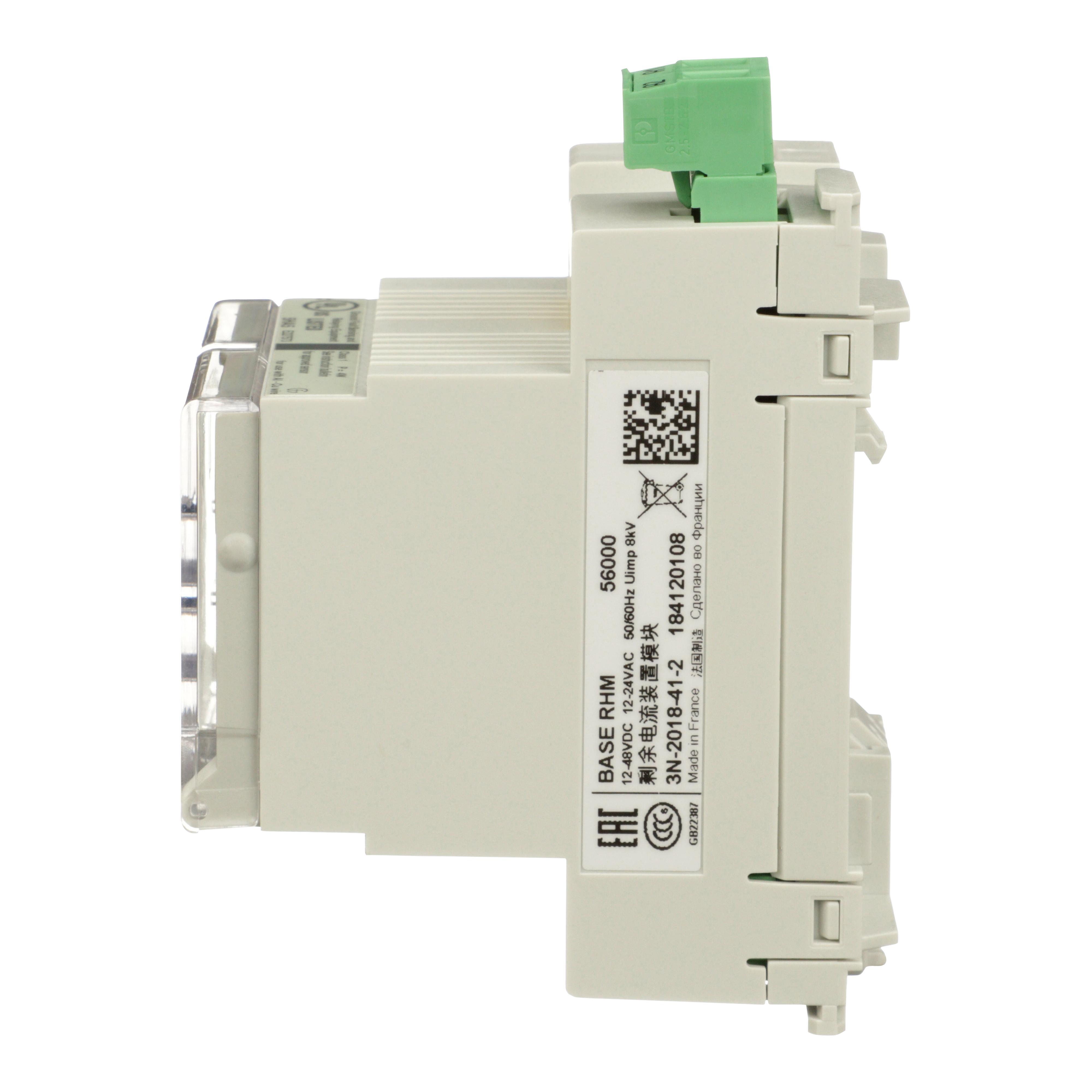

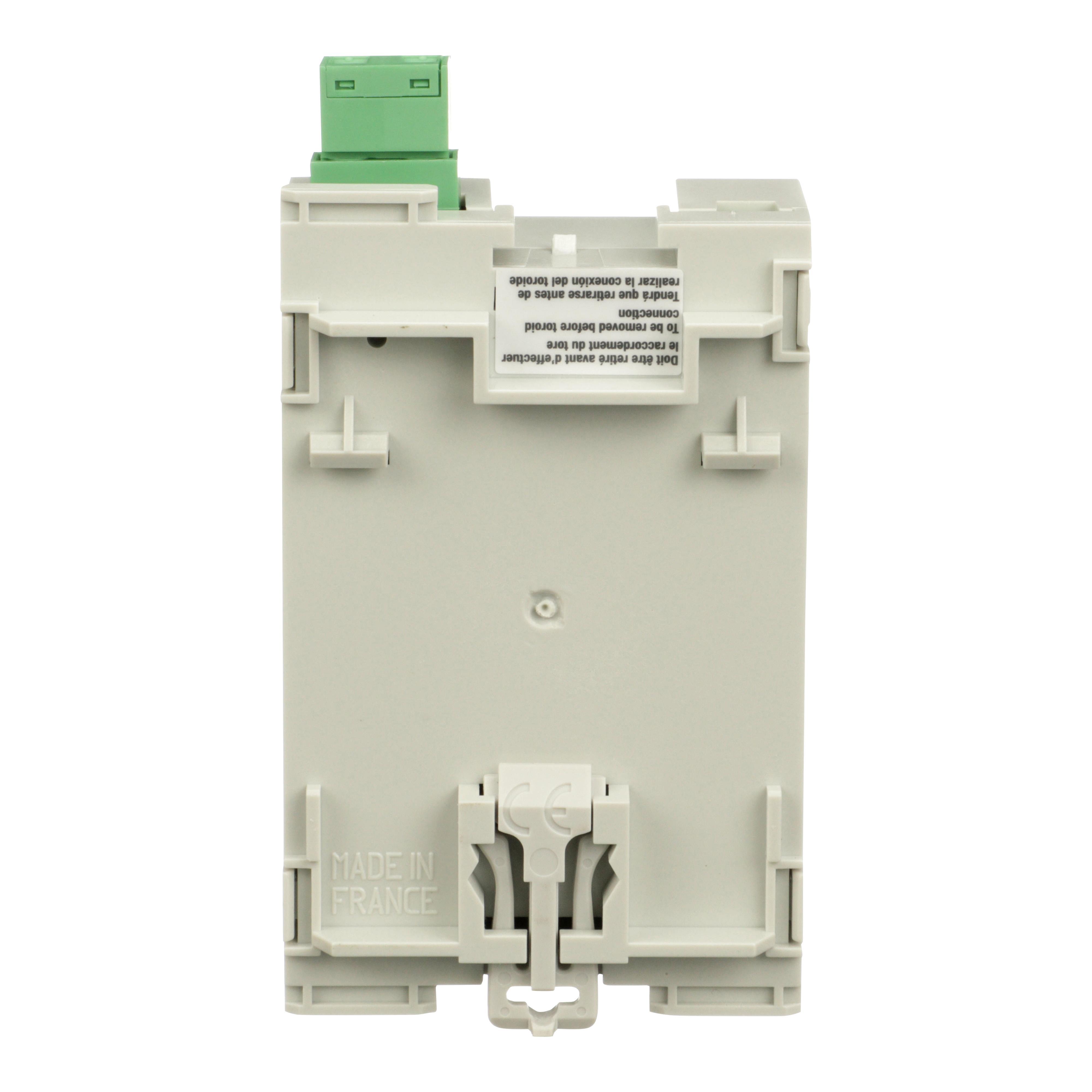

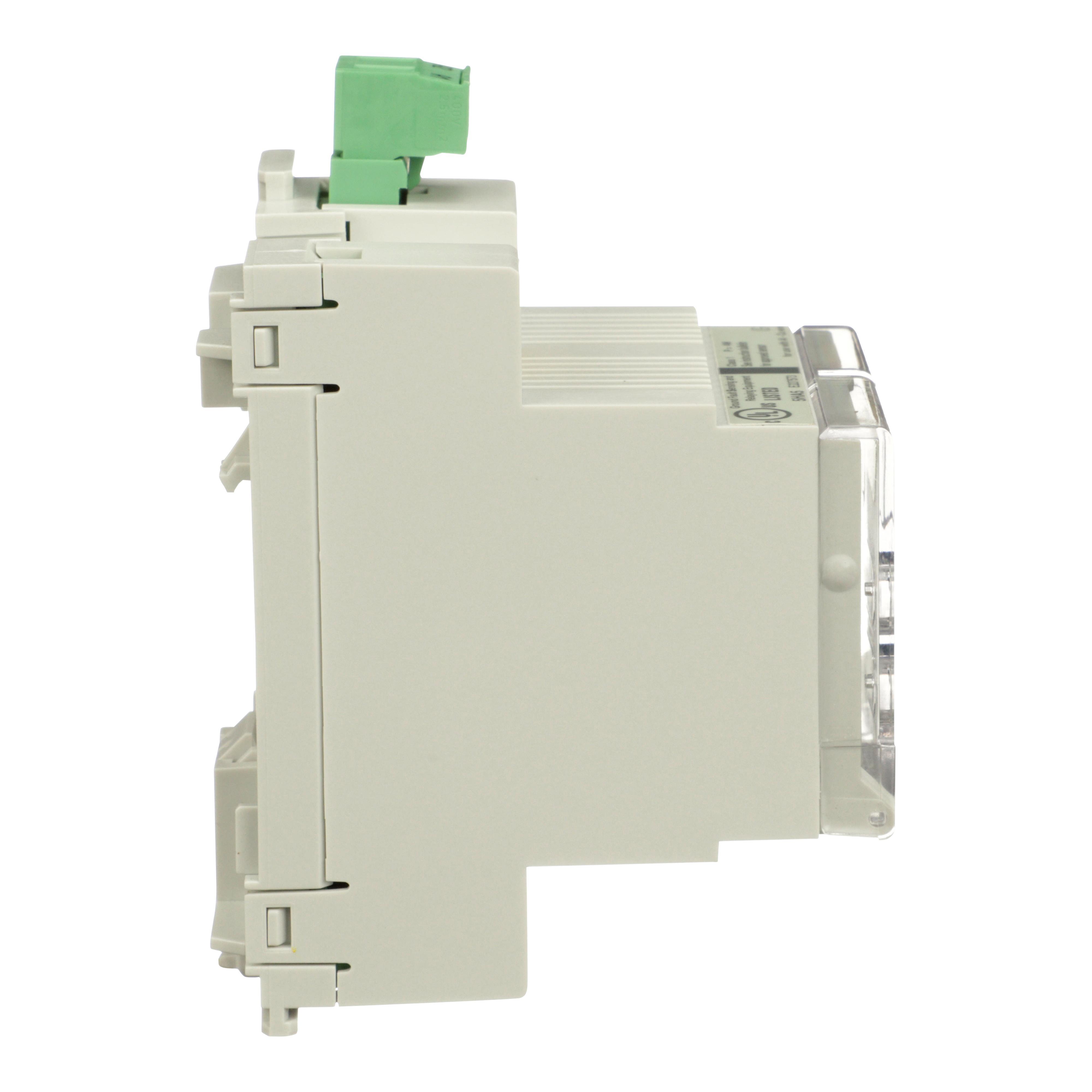

Description: Schneider Electric Square D™ Ground Fault Relay, Manual Reset, Series: Vigirex™ RH99M, 12 to 24 VAC, 0 s Instantaneous, 60/150/250/310/500/800 ms, 1/4.5 s Response Delay, Specifications: 9-User Selectable Thresholds: 30/100/300/500 mA, 1/3/5/10/30 A Sensitivity, DIN Rail Mounting

Manufacturer PN: 56370TD

UPC:  78590149650

Kendall Electric Inc PN: 4755047

Invoice Description:

56370TD SQD RH99M GRD FLT RLY W/


SPEC SHEET

▸ See All in Ground Fault Relay


How Can We Make This Page Better?

Schneider Electric Square D™ 56370TD Vigirex™ RH99M Manual Reset Ground Fault Relay, 12 to 24 VAC, 0 s Instantaneous, 60/150/250/310/500/800 ms, 1/4.5 s, 9-User Selectable Thresholds: 30/100/300/500 mA, 1/3/5/10/30 A Sensitivity, DIN Rail Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Vigirex™ ground fault relays, with associated sensors (current transformers), measure the leakage current in an electrical installation to detect levels that may be damaging. When used for protection, they cause an associated circuit breaker or switch to interrupt the supply of power to the protected system. They may also be used for monitoring only, with output to an alarm. Vigirex™ relays can be used at all levels of an installation power distribution, industrial control and final distribution, as well as with a variety of OEM equipment. There is a wide range of Vigirex™ models, mounting options and sensors to best suit your application.
Schneider Electric Square D™ Ground Fault Relay, Manual Reset, Series: Vigirex™ RH99M, 12 to 24 VAC, 0 s Instantaneous, 60/150/250/310/500/800 ms, 1/4.5 s Response Delay, Specifications: 9-User Selectable Thresholds: 30/100/300/500 mA, 1/3/5/10/30 A Sensitivity, DIN Rail Mounting

Specifications

 Application Automotive, Healthcare Facilities, Semiconductor Machines and Industrial Markets
 Brand Name Square D
 Manufacturer Part Number 56370TD
 Mounting Type DIN Rail
 Response Delay 0 s Instantaneous, 60/150/250/310/500/800 ms, 1/4.5 s
 Series Vigirex™ RH99M
 Specifications 9-User Selectable Thresholds: 30/100/300/500 mA, 1/3/5/10/30 A Sensitivity
 Standards/Approvals RoHS Compliant|REACH Compliant|UL 1053|Green Premium|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type Manual Reset
 Voltage Rating 12 to 24 VAC

Features

▪ DIN mount for easy installation
▪ Ground fault fixed sensitivities from 30 mA to 1 A and adjustable sensitivities up to 30 A
▪ Response from instantaneous (no intentional delay) to 4.5 s
▪ Outputs may be used for protection via shunt trip of a circuit breaker or switch or alarming via lights or annunciator for flexibility
▪ Compact size of relay and its sensor make it ideal for protection of OEM equipment as well as branch circuits
▪ 9-user selectable time delays - 0 s instantaneous, 60/150/250/310/500/800 ms, 1/4.5 s
