| ▪ UL 94V-1 Flammability rating |
| ▪ 20 to 50 mm stud connection conductor width |
| ▪ 42 kA peak short circuit current (Ipk) |
| ▪ 100 kA short circuit current rating |
| ▪ 14.4 kA short term withstand current (Icw) 1s |
| ▪ 10 to 120 sq-mm stud connection compact stranded wire size |
| ▪ 290/250 A maximum current rating, IEC/UL/CSA certified |
| ▪ Tinned copper block allows for copper or aluminum conductor connection |
| ▪ Halogen-free |
| ▪ SBLEC power terminals fixing accessory required for direct panel mount |

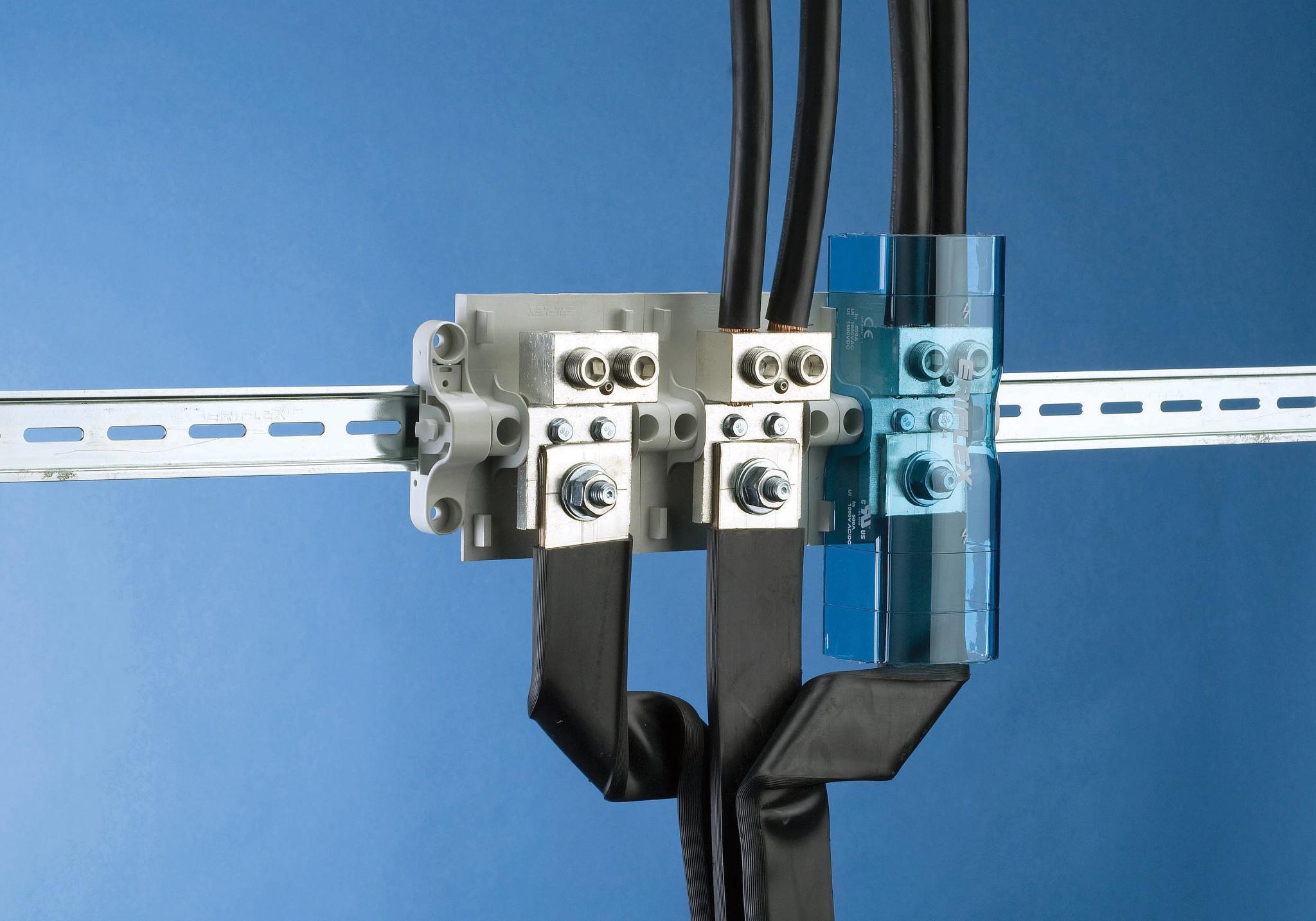

| ▪ Easily clips onto DIN rail or mounts to panel with screws |
| ▪ Gangable for building multi-pole power blocks |
| ▪ Adjustable transparent cover |
| ▪ Voltage detection and measurement connection (SBLT500 and 800) |
| ▪ Design allows for visual inspection of conductor and confirmation of connection |
| ▪ Accessible studs and tunnels allow for easy connection of ERIFLEX FLEXIBAR and other conductor |
