3M
558-BULK MMM SELF-STRIPPING CONN. 18-16AWG 221DEG F

Mouse over image to zoom, click to enlarge

  • 558-BULK MMM SELF-STRIPPING CONN. 18-16AWG 221DEG F
  • 558-BULK MMM SELF-STRIPPING CONN. 18-16AWG 221DEG F
  • 558-BULK MMM SELF-STRIPPING CONN. 18-16AWG 221DEG F

Description: 3M™, 7000005800, Connector, Run and Tap, Series: 558-BULK, Solid/Stranded Wire, Polypropylene Insulation, 600 V, Specifications: 2 Cores, 105 deg C, Brass, Red, Tin-Plated

Manufacturer PN: 7000005800

UPC:  05400714879

Kendall Electric Inc PN: 2371615

Invoice Description:

558-BULK MMM SELF-STRIPPING CONN. 18-16AWG 221DEG F


SPEC SHEET

▸ See All in Insulation Displacement Connectors


How Can We Make This Page Better?

3M™ 7000005800 558-BULK Run and Tap Connector, Solid/Stranded Wire, Polypropylene Insulation, Brass

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

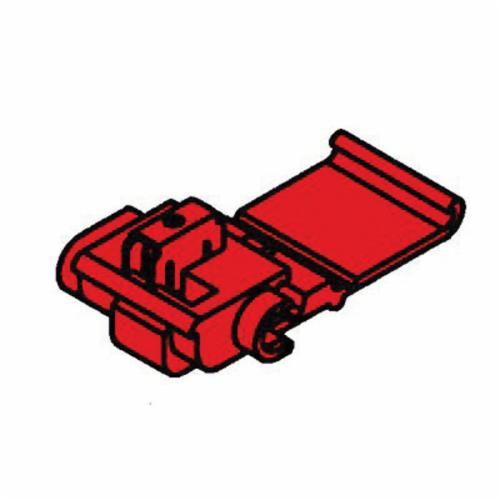

3M™ Scotchlok™ Insulation Displacement Connector 558 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. This connector is used for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping. The connector withstands temperatures of 221 °F (105 °C). UL Listed, CSA Certified and RoHS Compliant.
3M™, 7000005800, Connector, Run and Tap, Series: 558-BULK, Solid/Stranded Wire, Polypropylene Insulation, 600 V, Specifications: 2 Cores, 105 deg C, Brass, Red, Tin-Plated

Specifications

 Application Suitable for general purpose electrical connections on an auto, boat, van or trailer
 Brand Name 3M
 Color Red
 Finish Tin-Plated
 Manufacturer Part Number 7000005800
 Material Brass
 PART NUMBER KEYWORDS 7000005800 ; 054007148791 ; 05400714879 ; 54007148791 ; 00054007148791
 Series 558-BULK
 Specifications 2 Cores
 Standards/Approvals UL File Number E23438||CSA Certified|RoHS 2011/65/EU Compliant|RoHS Compliant
 Temperature Rating 105 deg C
 Type Run and Tap
 Voltage Rating 600 V

Features

▪ GENERAL PURPOSE - Used for general purpose electrical connections on an auto, boat, van or trailer
▪ WORKING VOLTAGE - 600V rated for building wire and 1000V rated for signs, fixtures and luminaires
▪ HEAT RESISTANT - Connector withstands temperatures of 221 deg F (105 deg C)
▪ STABILITY - 5-year shelf life (from date of manufacture)
▪ Red, polypropylene-insulated connector
▪ Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
