556750 ERICO BRAID MBJ 30-250-10

Mouse over image to zoom, click to enlarge

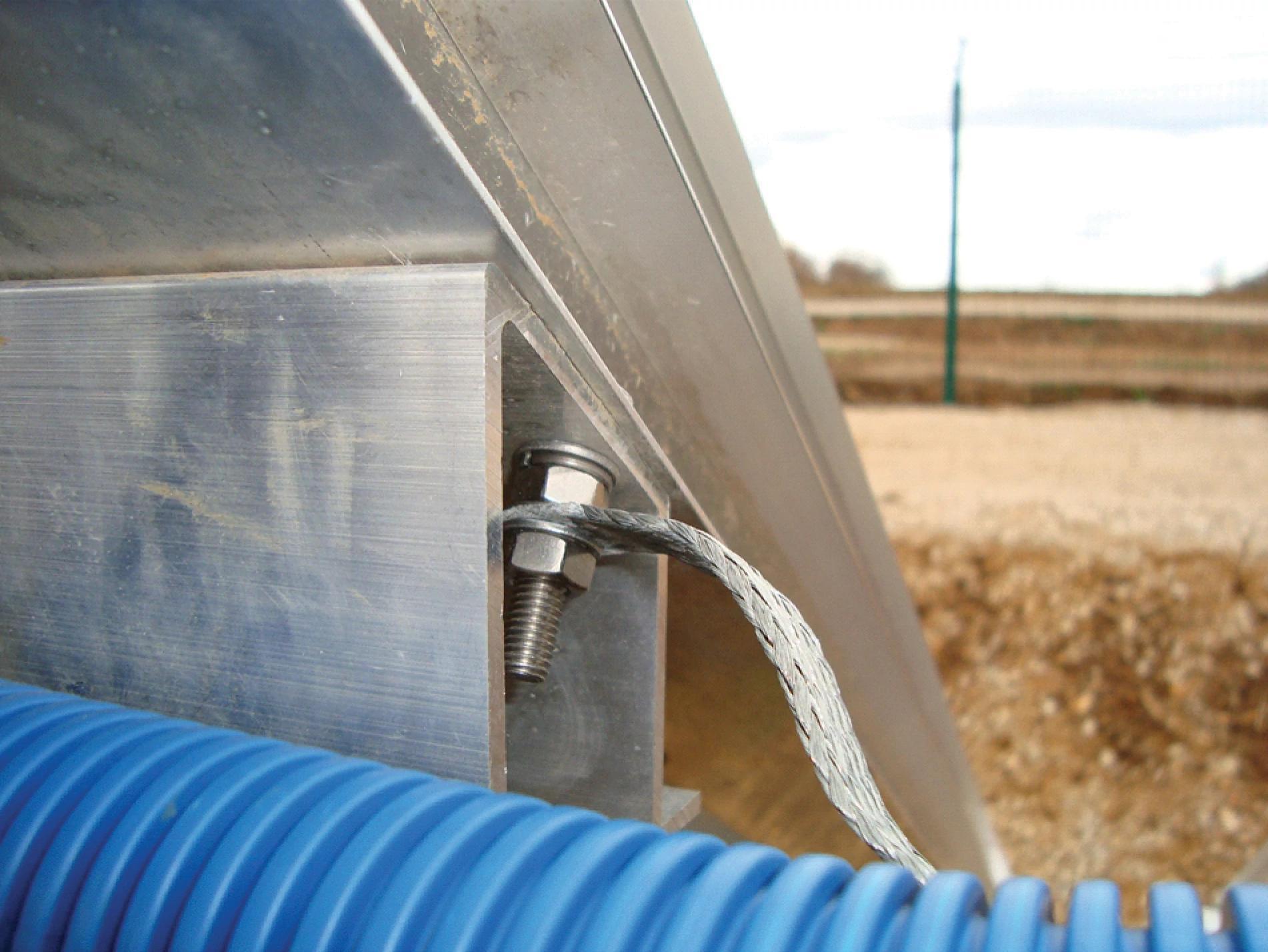

  • 556750 ERICO BRAID MBJ 30-250-10
  • 556750 ERICO BRAID MBJ 30-250-10

Description: nVent ERIFLEX Grounding and Bonding Braid, Series: ERI3, 180 A, 59.2 kcmil Nominal Cross Section Conductor, 0.866 in Cable Width, 9.843 in Cable Length, 0.413 in Mounting Hole, Copper, Tinned

Manufacturer PN: 556750

UPC:  78285644962

Kendall Electric Inc PN: 3982388

Invoice Description:

556750 ERICO BRAID MBJ 30-250-10


SPEC SHEET

▸ See All in Flexible Braids - w/Crimped Lugs


How Can We Make This Page Better?

nVent ERIFLEX MBJ30-250-10 ERI3 Grounding and Bonding Braid, 9.843 in L x 0.866 in W, 180 A, 0.413 in Mounting Hole

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

MBJ Grounding and Bonding Braids are a reliable and convenient grounding solution for applications that require flexibility and durability. The tinned copper ground braids with massivated palms come ready to install without any additional cutting, stripping, crimping or punching and do not require the addition of tin or crimped lugs. The proprietary manufacturing process optimizes the electrical contact between each wire and helps eliminate moisture issues in the palms, preventing corrosion and lengthening the useful life of the braid.
nVent ERIFLEX Grounding and Bonding Braid, Series: ERI3, 180 A, 59.2 kcmil Nominal Cross Section Conductor, 0.866 in Cable Width, 9.843 in Cable Length, 0.413 in Mounting Hole, Copper, Tinned

Specifications

 Amperage Rating 180 A
 Brand Name nVent ERIFLEX
 Cable Length 9.843 in
 Cable Width 0.866 in
 Finish Tinned
 Manufacturer Part Number MBJ30-250-10
 Material Copper
 Mounting Hole Size 0.413 in
 Nominal Cross Section Conductor 59.2 kcmil
 Series ERI3
 Standards/Approvals RoHS Compliant|CE Certified|UL 467|CSA C22.2 No. 41 E220029|EAC 7413000009|IEC 60439-1|IEC 61439-1
 Video Links

Features

▪ Complete range of earth/ground flexible connections from 6 - 100 mm sq (11.84 - 197.35 kcmil) cross section and from 100 - 500 mm (3.937 in - 19.685 in) length
▪ Integral palm, without tin or crimped lugs for superior electrical contact and tensile strength resistance
▪ Resistant to vibration and fatigue, reducing maintenance
▪ Provides weight savings, material savings and lower impedance when compared to similar lugged cables with insulation
▪ Ready to use out of the box, eliminates the need for cutting, stripping, crimping and punching
▪ Quick and easy to install
▪ Recommended by the EMC/EMI directives and less impedance than cables
