ABB

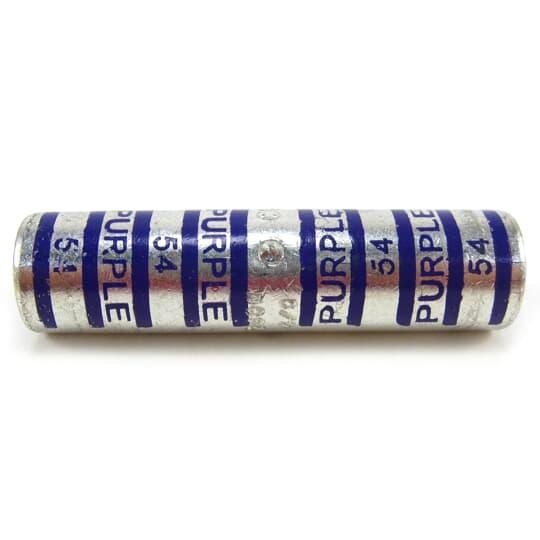

  • 54812 T&B 4/0 CU BUTT SPLICE
  • 54812 T&B 4/0 CU BUTT SPLICE
  • 54812 T&B 4/0 CU BUTT SPLICE
  • 54812 T&B 4/0 CU BUTT SPLICE
  • 54812 T&B 4/0 CU BUTT SPLICE
  • 54812 T&B 4/0 CU BUTT SPLICE

Description: Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 V AC, 0.72 in OD, 2-3/4 in Length, Specifications: Tin Plated, Copper, Purple Color Code

Manufacturer PN: 54812

UPC:  78621054812

Kendall Electric Inc PN: 128470

Invoice Description:

54812 T&B 4/0 CU BUTT SPLICE


SPEC SHEET

▸ See All in Two Way Compression Connectors


How Can We Make This Page Better?

Color-Keyed® 54812 2-Way Long Barrel Splice Connector, 4/0 AWG Copper Conductor, Die Code: 54, 2-3/4 in L, Copper

Log In for Pricing and Availability




Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 V AC, 0.72 in OD, 2-3/4 in Length, Specifications: Tin Plated, Copper, Purple Color Code

Specifications

 Brand Name Color-Keyed®
 Color Code Purple
 Conductor Size 4/0 AWG
 Conductor Type Copper
 Die Code 54
 Length 2-3/4 in
 Manufacturer Part Number 54812
 Material Copper
 PART NUMBER KEYWORDS 54812 ; 7TAH007510R0011 ; 10761418 ; 786210548128 ; 78621054812 ; 00786210548128 ; 5414363110804
 Specifications Tin Plated
 Standards/Approvals CSA No. 4503|UL File No. E9809
 Type 2-Way Long Barrel
 Voltage Rating 600 V AC

Features

▪ 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
▪ Color coded for correct matching of installing die and connector
▪ 35 kV voltage rating
▪ 450/24 = 182 kcmil wire size flex
