ABB

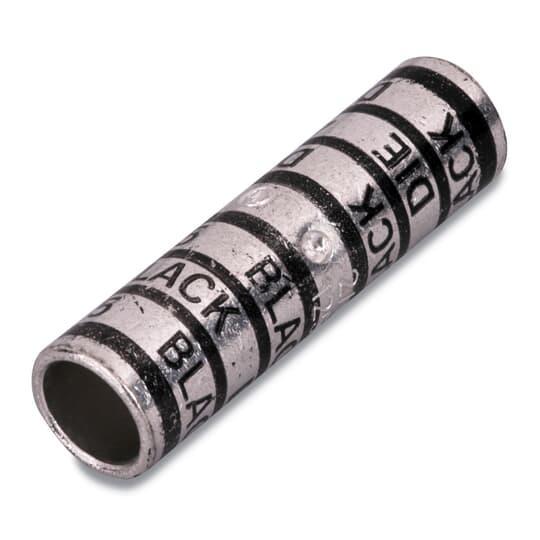

  • 54810 T&B 2/0 CU BUTT SPLICE
  • 54810 T&B 2/0 CU BUTT SPLICE
  • 54810 T&B 2/0 CU BUTT SPLICE
  • 54810 T&B 2/0 CU BUTT SPLICE
  • 54810 T&B 2/0 CU BUTT SPLICE

Description: Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 600 V AC, 0.59 in OD, 2.13 in Length, Specifications: Tin Plated, Copper, Black Color Code

Manufacturer PN: 54810

UPC:  78621054810

Kendall Electric Inc PN: 128466

Invoice Description:

54810 T&B 2/0 CU BUTT SPLICE


SPEC SHEET

▸ See All in Two Way Compression Connectors


How Can We Make This Page Better?

Color-Keyed® 54810 2-Way Long Barrel Splice Connector, 2/0 AWG Copper Conductor, Die Code: 45, 2.13 in L, Copper

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 600 V AC, 0.59 in OD, 2.13 in Length, Specifications: Tin Plated, Copper, Black Color Code

Specifications

 Brand Name Color-Keyed®
 Color Code Black
 Conductor Size 2/0 AWG
 Conductor Type Copper
 Die Code 45
 Length 2.13 in
 Manufacturer Part Number 54810
 Material Copper
 PART NUMBER KEYWORDS 54810 ; 7TAH007510R0009 ; 10761407 ; 786210548104 ; 78621054810 ; 00786210548104 ; 5414363110774
 Specifications Tin Plated
 Standards/Approvals CSA No. 4503|UL File No. E9809
 Type 2-Way Long Barrel
 Voltage Rating 600 V AC

Features

▪ 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
▪ Color coded for correct matching of installing die and connector
▪ 35 kV voltage rating
▪ 275/24 = 111 kcmil wire size flex
