Eaton

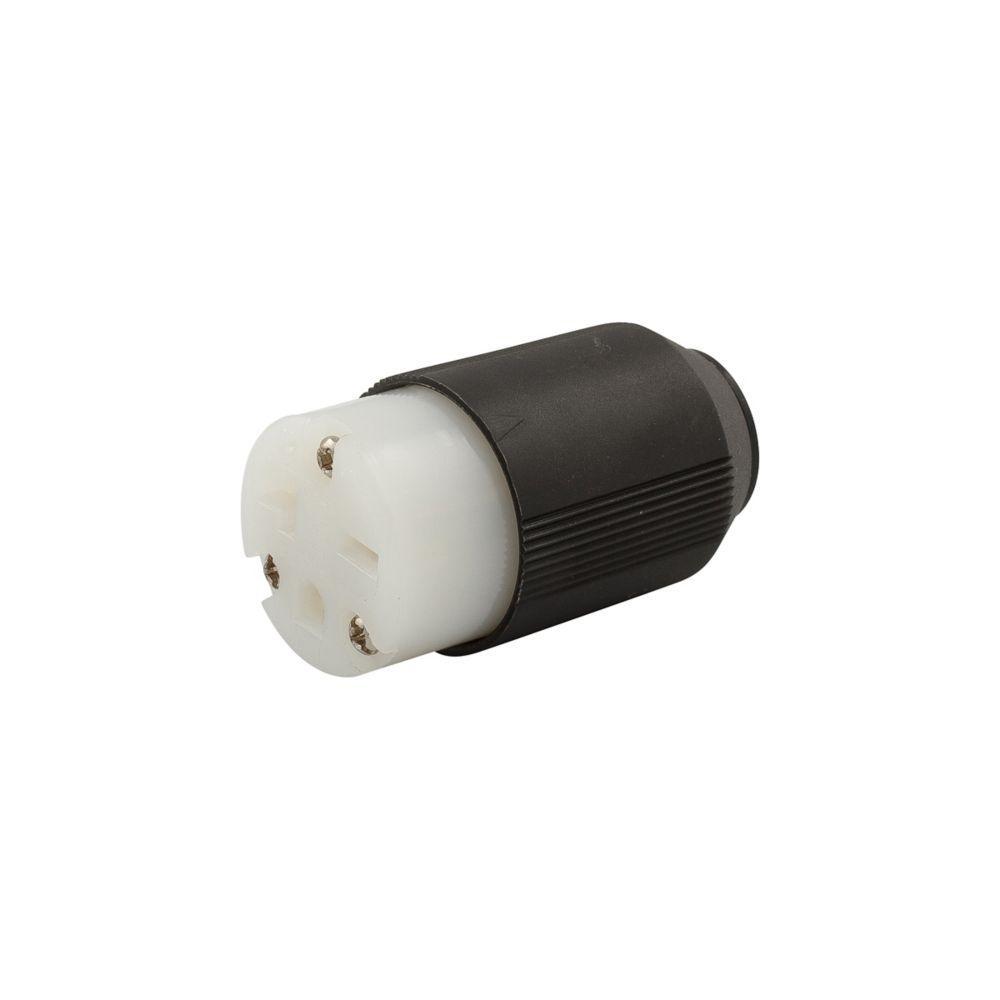

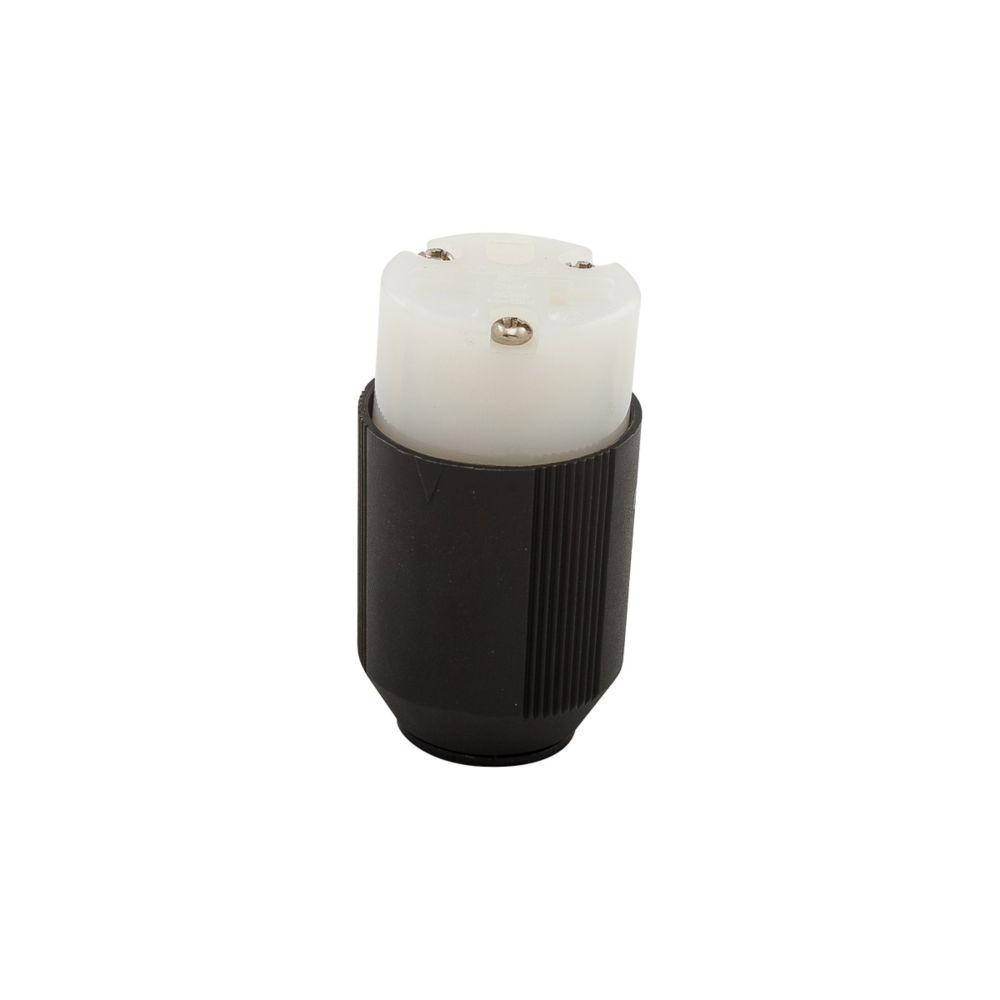

5469N CWD GRD CONN NEMA6-20R

Mouse over image to zoom, click to enlarge

  • 5469N CWD GRD CONN NEMA6-20R
  • 5469N CWD GRD CONN NEMA6-20R
  • 5469N CWD GRD CONN NEMA6-20R

Description: EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20 NEMA Rating, Industrial Grade, 0.25 to 0.69 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions

Manufacturer PN: 5469N

UPC:  04089301910

Kendall Electric Inc PN: 18805

Invoice Description:

5469N CWD GRD CONN NEMA6-20R


SPEC SHEET

How Can We Make This Page Better?

EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices 5469N Straight Blade Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

With a variety of styles including safety grip and auto grip, these devices are designed to install quickly and easily and provide reliable performance in tough industrial environments. Eaton's Arrow Hart hospital and specification grade plug and connectors are built to meet and exceed UL federal specification and hospital grade testing.
EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20 NEMA Rating, Industrial Grade, 0.25 to 0.69 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name EATON
 Color Black/White
 Cord Diameter 0.25 to 0.69 in
 Dimensions 1.51 in Dia
 Grade Industrial
 Manufacturer Part Number 5469N
 Material Nylon
 NEMA Rating NEMA 6-20
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 5469N ; 8201017 ; 040893019109 ; 40893019109 ; 04089301910 ; 00040893019109
 Standards/Approvals NOM,Federal Specification Classification 6221 02,UL
 Temperature Rating -40 to 75 deg C
 Terminal Type Back Wire/Screw
 Video Links
 Voltage Rating 250 V AC

Features

▪ AutoGrip™ clamp design secures cord during assembly, reducing installation time
▪ Rugged nylon body resists impact and exposure to chemicals
▪ Neoprene gasket seals around cord for added terminal protection from external elements
▪ Tapered, individual wire pockets guide stranded wire into contact area for ease of installation

Resources

 Catalog Page
 Product Data Sheet
