Eaton
5469 CWD CONN 20A 250V 2P3W STR POLY BW

Mouse over image to zoom, click to enlarge

  • 5469 CWD CONN 20A 250V 2P3W STR POLY BW
  • 5469 CWD CONN 20A 250V 2P3W STR POLY BW
  • 5469 CWD CONN 20A 250V 2P3W STR POLY BW

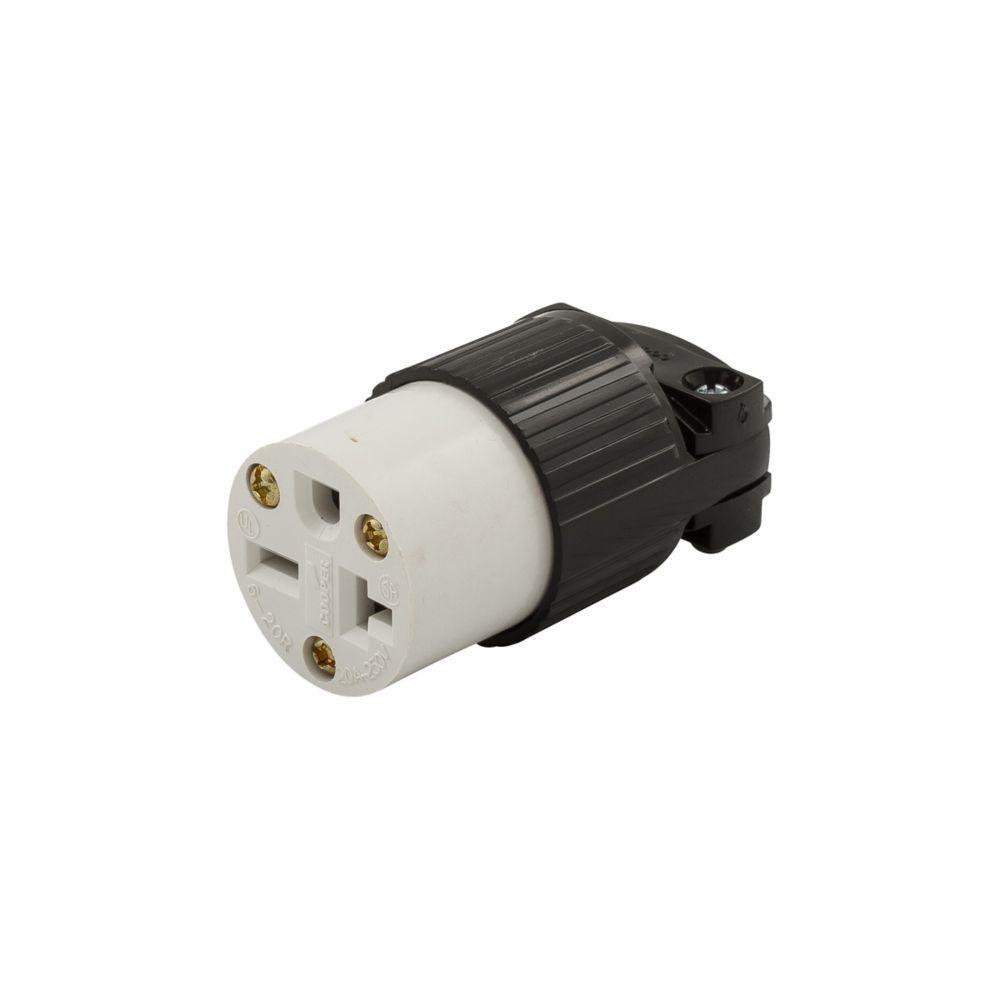

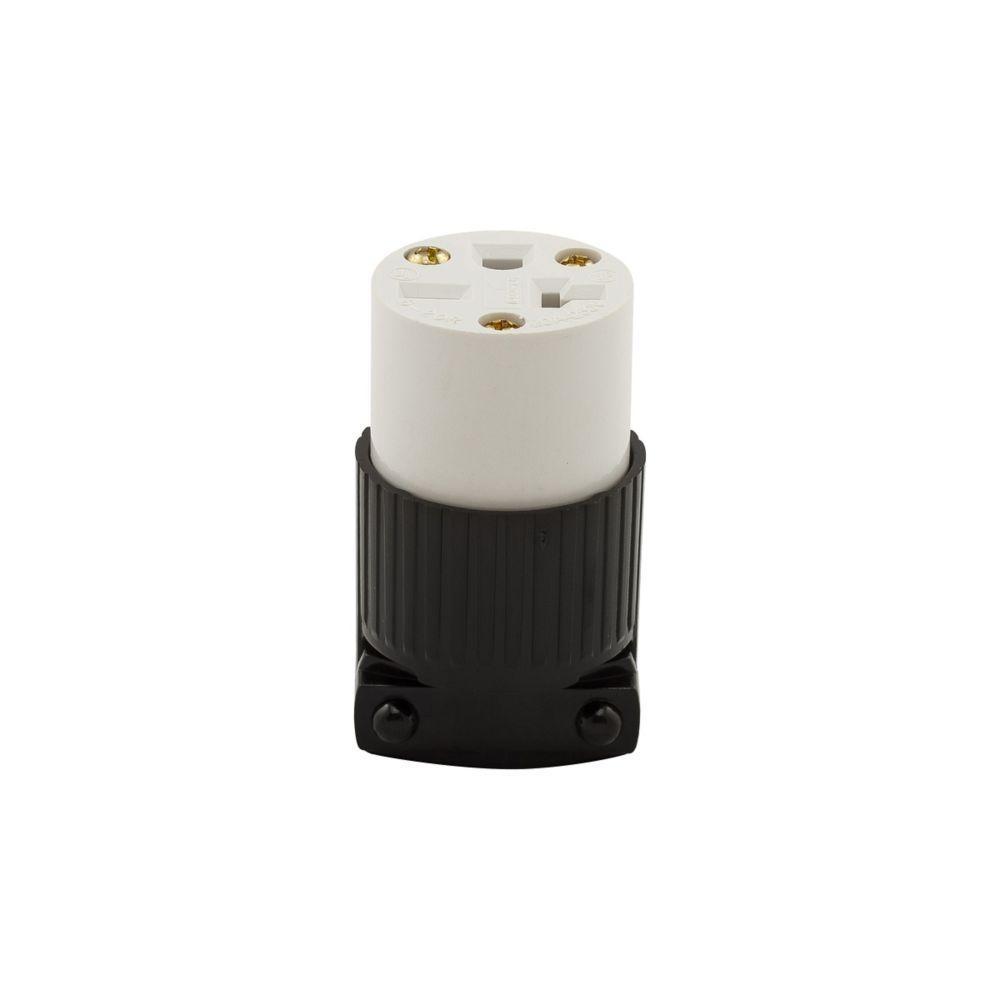

Description: EATON Arrow Hart™ Ultra Grip™ Straight Blade Connector, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20 NEMA Rating, Commercial/Industrial Grade, 0.25 to 0.69 in Diameter Cord, Back Wire/Screw Terminal, Polycarbonate, Black/White, 1.51 in Dia Dimensions

Manufacturer PN: 5469

UPC:  03266439070

Kendall Electric Inc PN: 3290491

Invoice Description:

5469 CWD CONN 20A 250V 2P3W STR POLY BW


SPEC SHEET

How Can We Make This Page Better?

EATON Arrow Hart™ Ultra Grip™ 5469 Straight Blade Connector, 250 V AC, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability. A dual dovetail design provides superior cord grip retention, and the grommet allows usage across a wide range of cord diameters. Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords.
EATON Arrow Hart™ Ultra Grip™ Straight Blade Connector, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20 NEMA Rating, Commercial/Industrial Grade, 0.25 to 0.69 in Diameter Cord, Back Wire/Screw Terminal, Polycarbonate, Black/White, 1.51 in Dia Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name EATON
 Color Black/White
 Cord Diameter 0.25 to 0.69 in
 Dimensions 1.51 in Dia
 Grade Commercial/Industrial
 Manufacturer Part Number 5469
 Material Polycarbonate
 NEMA Rating NEMA 6-20
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 5469 ; 9084414 ; 032664390708 ; 32664390708 ; 03266439070 ; 00032664390708
 Standards/Approvals Federal Specification Classification 6221 02,NOM,UL
 Terminal Type Back Wire/Screw
 Video Links
 Voltage Rating 250 V AC

Features

▪ AutoGrip™ clamp design secures cord during assembly, reducing installation time
▪ Rugged nylon body resists impact and exposure to chemicals
▪ Neoprene gasket seals around cord for added terminal protection from external elements
▪ Tapered, individual wire pockets guide stranded wire into contact area for ease of installation

Resources

 Catalog Page
 Product Data Sheet
