ABB

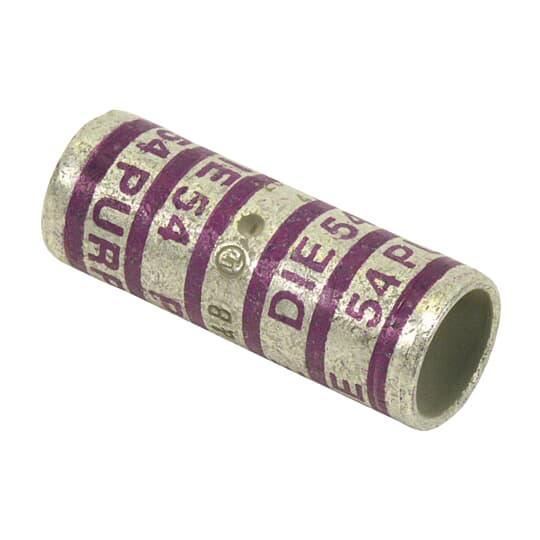

  • 54512 T&B CU BUTT SPLICE 4/0 PURPLE
  • 54512 T&B CU BUTT SPLICE 4/0 PURPLE
  • 54512 T&B CU BUTT SPLICE 4/0 PURPLE
  • 54512 T&B CU BUTT SPLICE 4/0 PURPLE
  • 54512 T&B CU BUTT SPLICE 4/0 PURPLE
  • 54512 T&B CU BUTT SPLICE 4/0 PURPLE

Description: Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 V AC, 0.7 in OD, 1.88 in Length, Specifications: Tin Plated, Copper, Purple Color Code

Manufacturer PN: 54512

UPC:  78621054512

Kendall Electric Inc PN: 58642

Invoice Description:

54512 T&B CU BUTT SPLICE 4/0 PURPLE


SPEC SHEET

▸ See All in Two Way Compression Connectors


How Can We Make This Page Better?

Color-Keyed® 54512 2-Way Standard Barrel Splice Connector, 4/0 AWG Copper Conductor, Die Code: 54, 1.88 in L, Copper

Log In for Pricing and Availability




Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 V AC, 0.7 in OD, 1.88 in Length, Specifications: Tin Plated, Copper, Purple Color Code

Specifications

 Brand Name Color-Keyed®
 Color Code Purple
 Conductor Size 4/0 AWG
 Conductor Type Copper
 Die Code 54
 Length 1.88 in
 Manufacturer Part Number 54512
 Material Copper
 PART NUMBER KEYWORDS 54512 ; 7TAH007500R0012 ; 10760411 ; 786210545127 ; 78621054512 ; 00786210545127 ; 5414363074328
 Specifications Tin Plated
 Standards/Approvals CSA Certified|UL File No. E9809
 Type 2-Way Standard Barrel
 Voltage Rating 600 V AC

Features

▪ 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
▪ Color coded for correct matching of installing die and connector
▪ 35 kV max voltage
▪ 450/24 = 182 kcmil, 3/0 Weld, 703/.0154 wire size flex
