ABB

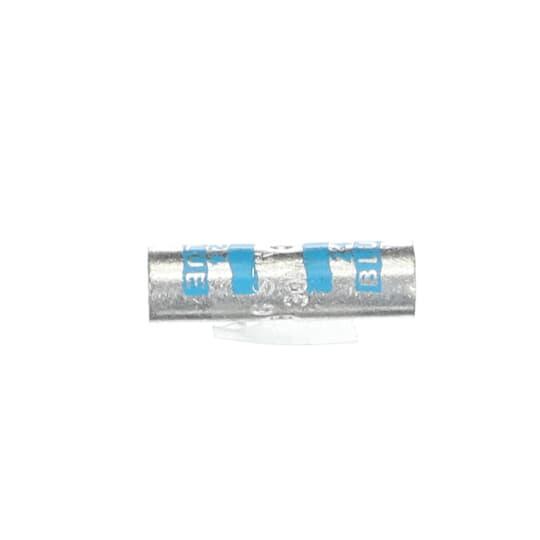

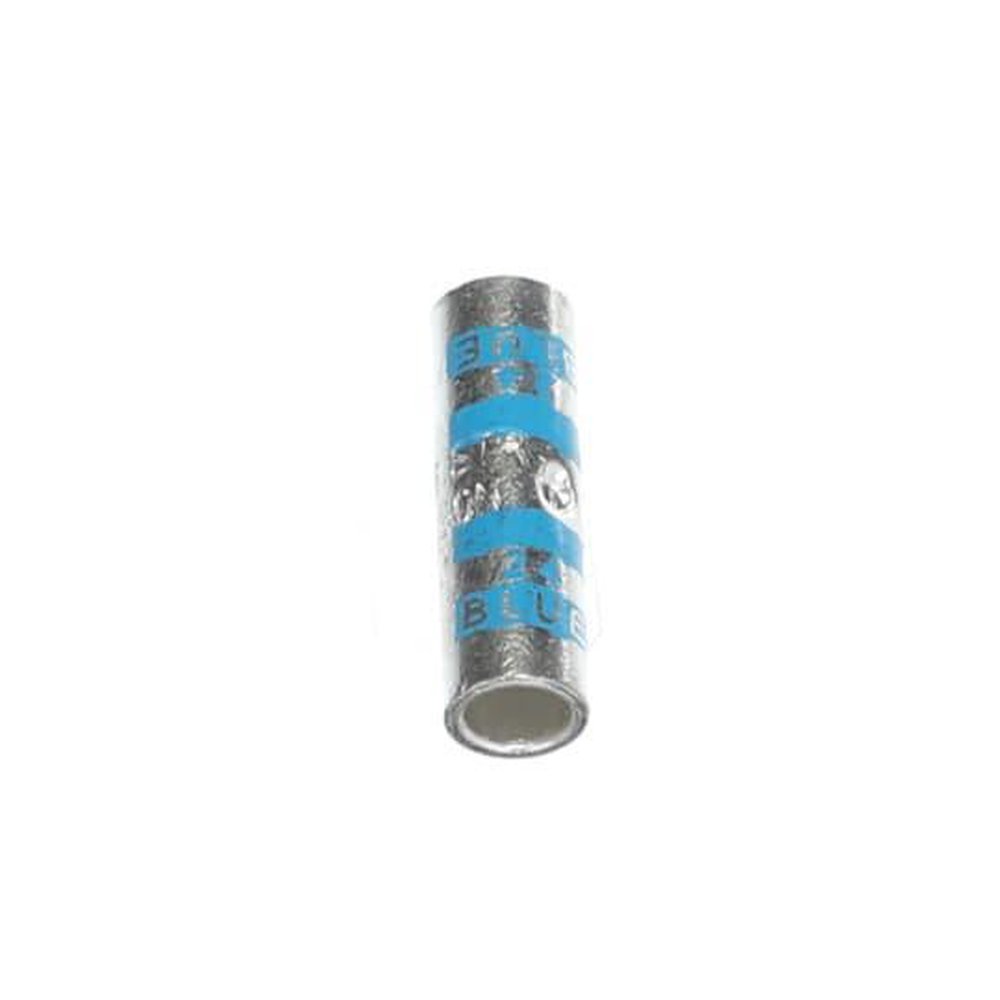

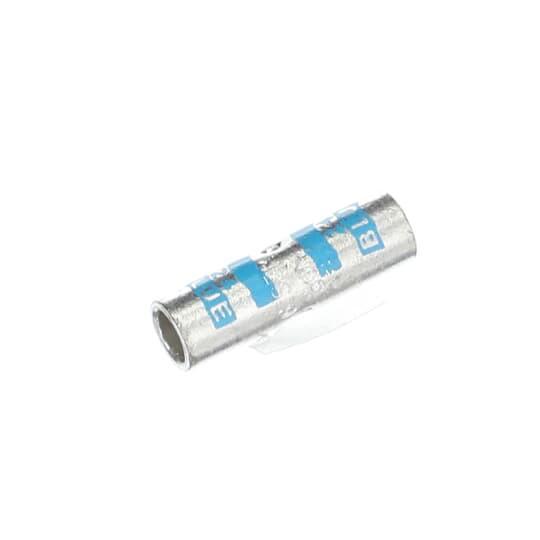

54505 T&B CU BUTT SPLICE #6STR BLUE

Mouse over image to zoom, click to enlarge

  • 54505 T&B CU BUTT SPLICE #6STR BLUE
  • 54505 T&B CU BUTT SPLICE #6STR BLUE
  • 54505 T&B CU BUTT SPLICE #6STR BLUE
  • 54505 T&B CU BUTT SPLICE #6STR BLUE

Description: Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 6 AWG Conductor, Die Code: 24, 600 V AC, 0.3 in OD, 1 in Length, Specifications: Tin Plated, Copper, Blue Color Code

Manufacturer PN: 54505

UPC:  78621054505

Kendall Electric Inc PN: 58635

Invoice Description:

54505 T&B CU BUTT SPLICE #6STR BLUE


SPEC SHEET

▸ See All in Two Way Compression Connectors


How Can We Make This Page Better?

Color-Keyed® 54505 2-Way Standard Barrel Splice Connector, 6 AWG Copper Conductor, Die Code: 24, 1 in L, Copper

Log In for Pricing and Availability




Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 6 AWG Conductor, Die Code: 24, 600 V AC, 0.3 in OD, 1 in Length, Specifications: Tin Plated, Copper, Blue Color Code

Specifications

 Brand Name Color-Keyed®
 Color Code Blue
 Conductor Size 6 AWG
 Conductor Type Copper
 Die Code 24
 Length 1 in
 Manufacturer Part Number 54505
 Material Copper
 PART NUMBER KEYWORDS 54505 ; 7TAH007500R0005 ; 10760403 ; 786210545059 ; 78621054505 ; 00786210545059 ; 5414363110576
 Specifications Tin Plated
 Standards/Approvals UL E9809 / UL E9809
 Type 2-Way Standard Barrel
 Voltage Rating 600 V AC

Features

▪ 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
▪ Color coded for correct matching of installing die and connector
▪ 35 kV max voltage
▪ 61/24 = 24.6 kcmil, NO 6 Weld, 133/.014 wire size flex
