ABB

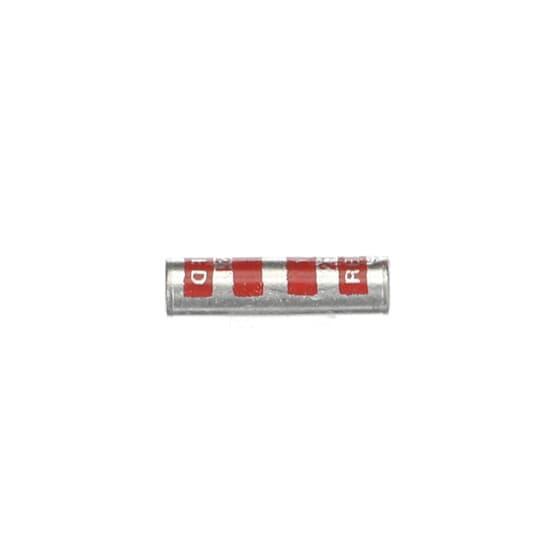

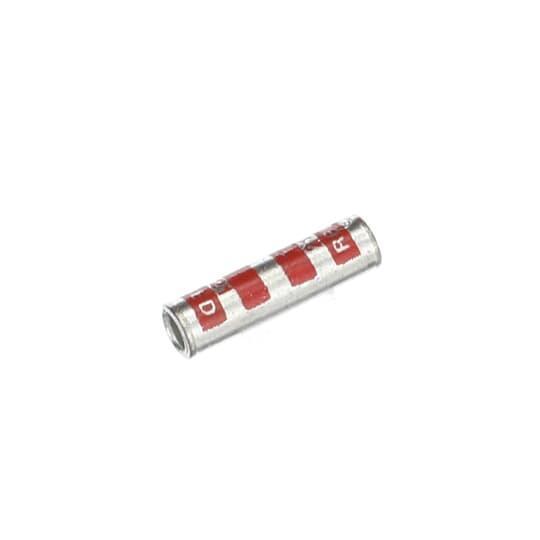

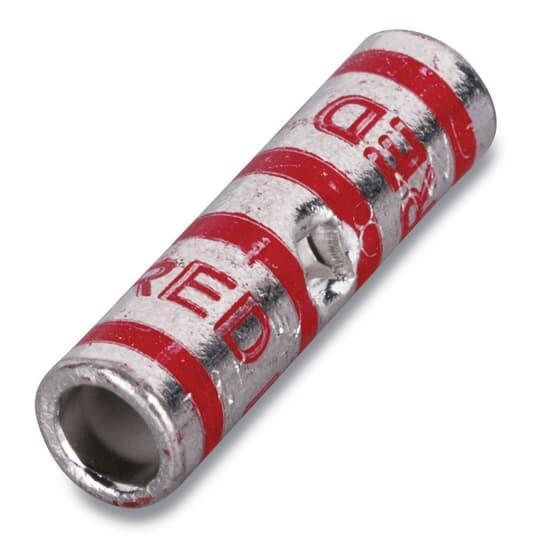

54504 T&B CU BUTT SPLICE #8STR RED

Mouse over image to zoom, click to enlarge

  • 54504 T&B CU BUTT SPLICE #8STR RED
  • 54504 T&B CU BUTT SPLICE #8STR RED
  • 54504 T&B CU BUTT SPLICE #8STR RED
  • 54504 T&B CU BUTT SPLICE #8STR RED

Description: Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 8 AWG Conductor, Die Code: 21, 600 V AC, 0.27 in OD, 1 in Length, Specifications: Tin Plated, Copper, Red Color Code

Manufacturer PN: 54504

UPC:  78621054504

Kendall Electric Inc PN: 58634

Invoice Description:

54504 T&B CU BUTT SPLICE #8STR RED


SPEC SHEET

▸ See All in Butt Splices


How Can We Make This Page Better?

Color-Keyed® 54504 2-Way Standard Barrel Splice Connector, 8 AWG Copper Conductor, Die Code: 21, 1 in L, Copper

Log In for Pricing and Availability




Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 8 AWG Conductor, Die Code: 21, 600 V AC, 0.27 in OD, 1 in Length, Specifications: Tin Plated, Copper, Red Color Code

Specifications

 Brand Name Color-Keyed®
 Color Code Red
 Conductor Size 8 AWG
 Conductor Type Copper
 Die Code 21
 Length 1 in
 Manufacturer Part Number 54504
 Material Copper
 PART NUMBER KEYWORDS 54504 ; 7TAH007500R0004 ; 10760401 ; 786210545042 ; 78621054504 ; 00786210545042 ; 5414363110569
 Specifications Tin Plated
 Standards/Approvals UL E9809 / UL E9809
 Type 2-Way Standard Barrel
 Voltage Rating 600 V AC

Features

▪ 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
▪ Color coded for correct matching of installing die and connector
▪ 35 kV max voltage
▪ 37/24 = 14.9 kcmil, NO 8 Weld wire size flex
