United Technologies

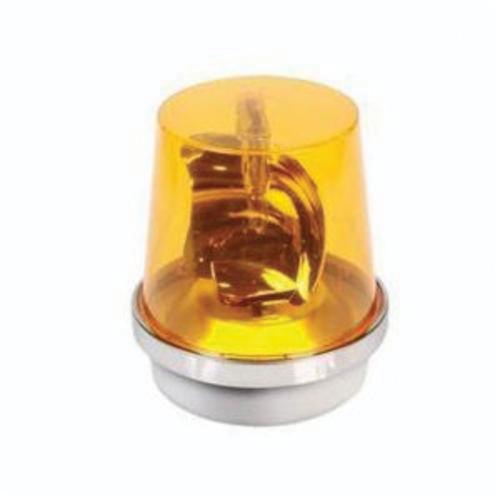

53A-E1 EDW 12VDC AMBER BEACON

Mouse over image to zoom, click to enlarge

  • 53A-E1 EDW 12VDC AMBER BEACON
  • 53A-E1 EDW 12VDC AMBER BEACON

Description: Edwards Signaling™ Rotating Beacon, Weatherproof, Series: 53 Series, 12 V DC, 1.8 A, 25 W Wattage, Cylindrical Shape, 6 in Diameter, Incandescent Lamp, Amber, 65 fpm Flash, 5049 cd Light Output, 200 hr Average Life, Screw Mounting, -31 to 150 deg F, Cast Metal Base/Polycarbonate Dome Housing Material, 8-1/2 in H Dimensions

Manufacturer PN: 53A-E1

UPC:  78264021312

Kendall Electric Inc PN: 26957

Invoice Description:

53A-E1 EDW 12VDC AMBER BEACON


How Can We Make This Page Better?

Edwards Signaling™ 53A-E1 53 Series Weatherproof Rotating Beacon, 12 V DC, Incandescent Lamp, 6 in Dia, Screw Mount, Amber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Edwards 52, 53 and 53D series rotating beacons are visual signals suitable for use in indoor or outdoor applications to provide maximum brilliance and long-term durability with minimum maintenance. The polycarbonate dome allows for easy cleaning.
Edwards Signaling™ Rotating Beacon, Weatherproof, Series: 53 Series, 12 V DC, 1.8 A, 25 W Wattage, Cylindrical Shape, 6 in Diameter, Incandescent Lamp, Amber, 65 fpm Flash, 5049 cd Light Output, 200 hr Average Life, Screw Mounting, -31 to 150 deg F, Cast Metal Base/Polycarbonate Dome Housing Material, 8-1/2 in H Dimensions

Specifications

 Amperage Rating 1.8 A
 Application Indoor and Outdoor Applications
 Average Life 200 hr
 Brand Name Edwards Signaling™
 Color Amber
 Dimensions 8-1/2 in H
 Flash Rate 65 fpm
 Housing Material Cast Metal Base/Polycarbonate Dome
 Lamp Type Incandescent
 Light Output 5049 cd
 Manufacturer Part Number 53A-E1
 Mounting Type Screw
 PART NUMBER KEYWORDS 53A-E1 ; 53AE1 ; 782640213124 ; 78264021312 ; 00782640213124
 Series 53 Series
 Shape Cylindrical
 Standards/Approvals ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Type Weatherproof
 Voltage Rating 12 V DC
 Wattage 25 W

Features

▪ Bayonet lamp socket for easy replacement
▪ Cast base can be utilized as a junction box
▪ May be mounted vertically, facing up or down in 3 days
▪ Light intensifying reflector
▪ The polycarbonate dome allows for easy cleaning
