Leviton

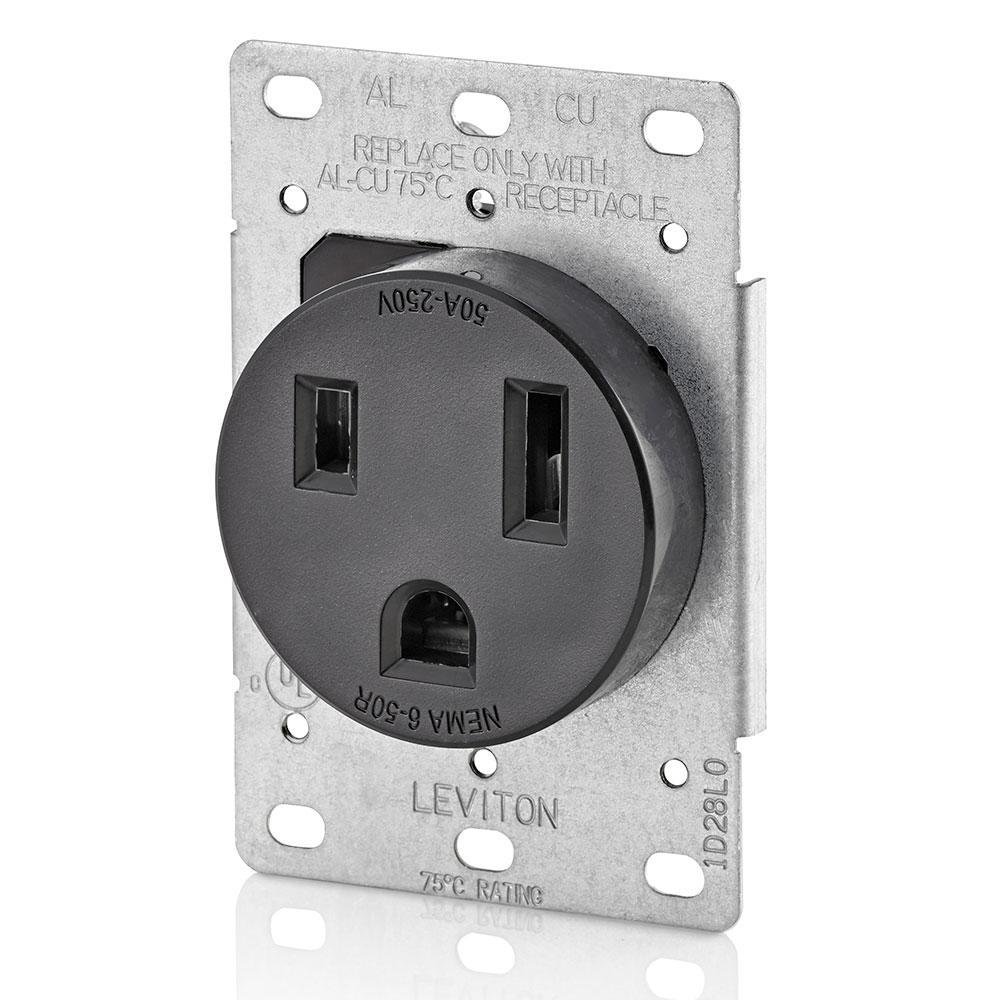

5374-S00 LEVITON FLUSH RECEPT

Mouse over image to zoom, click to enlarge

Description: Leviton® Straight Blade Receptacle, Grounding, 250 V AC, 50 A, 7-1/2 hp, 2 Pole, 3 Wires, NEMA 6-50R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 3.75 in H x 2.42 in W x 1.57 in D Dimensions

Manufacturer PN: 5374-S00

UPC:  07847769540

Kendall Electric Inc PN: 3679511

Invoice Description:

5374-S00 LEVITON FLUSH RECEPT


SPEC SHEET

How Can We Make This Page Better?

Leviton® 5374-S00 Grounding Straight Blade Receptacle, 250 V AC, 50 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability




Description

Leviton® Straight Blade Receptacle, Grounding, 250 V AC, 50 A, 7-1/2 hp, 2 Pole, 3 Wires, NEMA 6-50R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, White, 3.75 in H x 2.42 in W x 1.57 in D Dimensions

Specifications

 Amperage Rating 50 A
 Brand Name Leviton®
 Color White
 Dimensions 3.75 in H x 2.42 in W x 1.57 in D
 Grade Industrial
 Horsepower 7-1/2 hp
 Manufacturer Part Number 5374-S00
 Material Thermoplastic
 NEMA Rating NEMA 6-50R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 5374-S00 ; 5374S00 ; 13921906 ; 078477695401 ; 78477695401 ; 07847769540 ; 00078477695401
 Standards/Approvals NEMA WD6|UL 498
 Temperature Rating -40 to 60 deg C
 Terminal Type Side Wire
 Type Grounding
 Voltage Rating 250 V AC
