Eaton

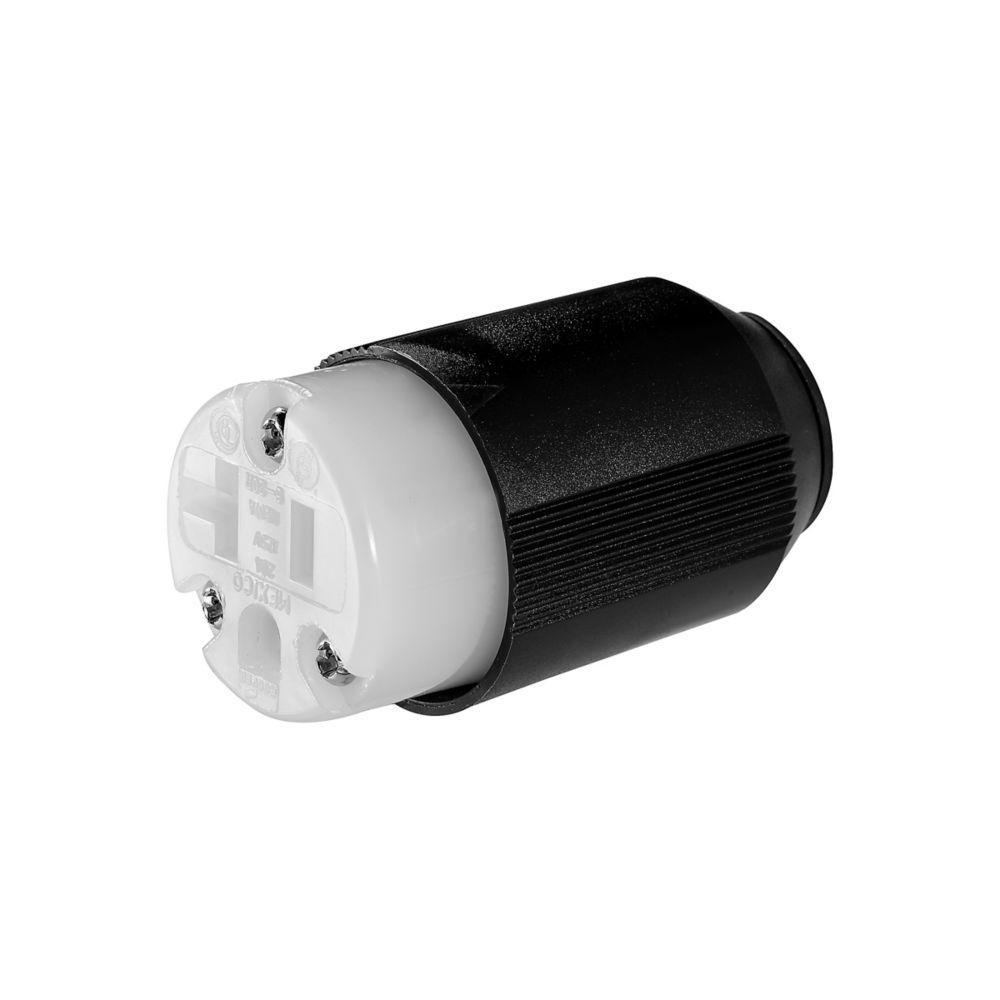

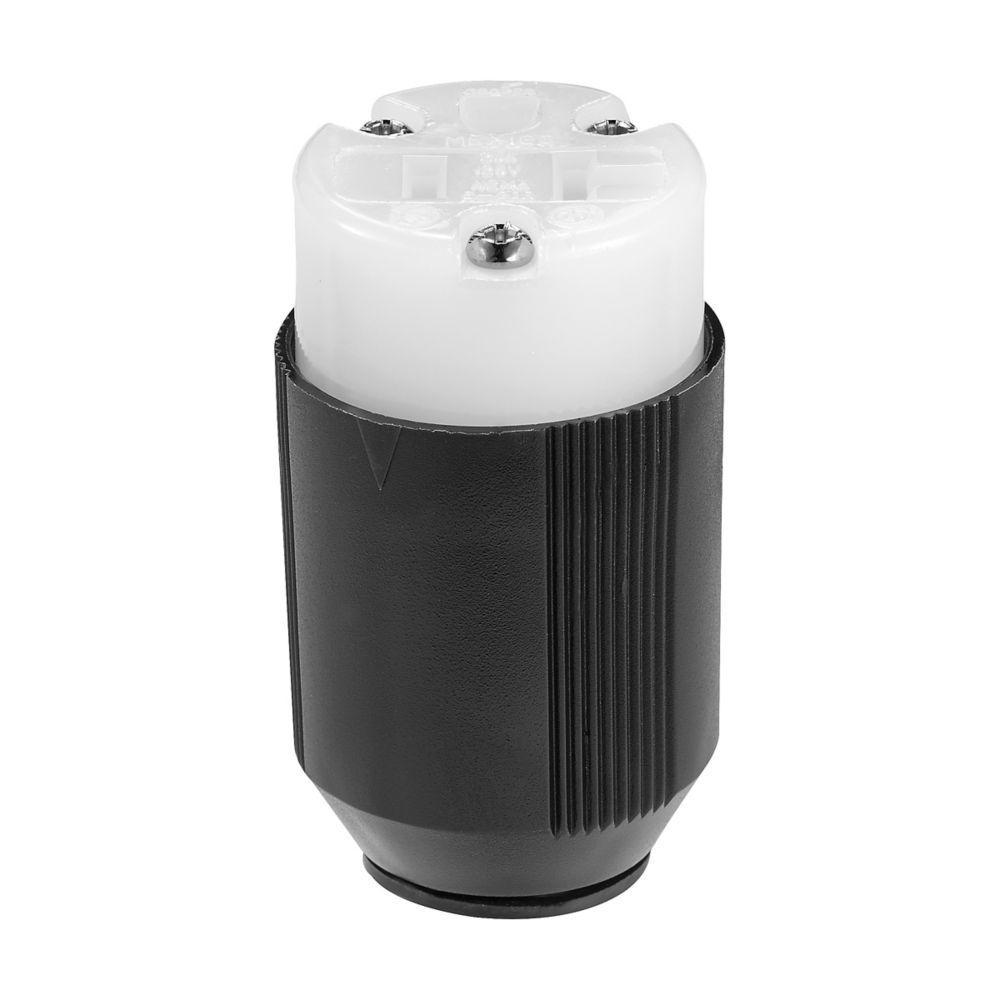

5369N CWD IND. CONN. 2P3W 20A125V AUTOGRIP.25-.656"

Mouse over image to zoom, click to enlarge

  • 5369N CWD IND. CONN. 2P3W 20A125V AUTOGRIP.25-.656"
  • 5369N CWD IND. CONN. 2P3W 20A125V AUTOGRIP.25-.656"
  • 5369N CWD IND. CONN. 2P3W 20A125V AUTOGRIP.25-.656"

Description: EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20 NEMA Rating, Industrial Grade, 0.25 to 0.656 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions

Manufacturer PN: 5369N

UPC:  04089301825

Kendall Electric Inc PN: 18792

Invoice Description:

5369N CWD IND. CONN. 2P3W 20A125V AUTOGRIP.25-.656"


SPEC SHEET

How Can We Make This Page Better?

EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices 5369N Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

With a variety of styles including safety grip and auto grip, these devices are designed to install quickly and easily and provide reliable performance in tough industrial environments. Eaton's Arrow Hart hospital and specification grade plug and connectors are built to meet and exceed UL federal specification and hospital grade testing.
EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20 NEMA Rating, Industrial Grade, 0.25 to 0.656 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name EATON
 Color Black/White
 Cord Diameter 0.25 to 0.656 in
 Dimensions 1.51 in Dia
 Grade Industrial
 Manufacturer Part Number 5369N
 Material Nylon
 NEMA Rating NEMA 5-20
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 5369N ; 8200877 ; 040893018256 ; 40893018256 ; 04089301825 ; 00040893018256
 Standards/Approvals cULus Listed
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Video Links
 Voltage Rating 125 V AC

Features

▪ AutoGrip™ clamp design secures cord during assembly, reducing installation time
▪ Rugged nylon body resists impact and exposure to chemicals
▪ Neoprene gasket seals around cord for added terminal protection from external elements
▪ Tapered, individual wire pockets guide stranded wire into contact area for ease of installation

Resources

 Catalog Page
 Product Data Sheet
