nVent
534517 ERICO IBS ADV 120-630-10 2/BOX

Mouse over image to zoom, click to enlarge

  • 534517 ERICO IBS ADV 120-630-10 2/BOX
  • 534517 ERICO IBS ADV 120-630-10 2/BOX

Description: nVent ERIFLEX Braided Conductor, Advanced Round Insulated, Series: IBS, 236.82 kcmil Cable, 1.06 in Dia, 24.8 in Length, 400 A, 20 kV/mm Tensile, 0.41 in Mounting Hole, Copper/Thermoplastic Elastomer, Tin Plated

Manufacturer PN: 534517

UPC:  78285696143

Kendall Electric Inc PN: 4130627

Invoice Description:

534517 ERICO IBS ADV 120-630-10 2/BOX


SPEC SHEET

How Can We Make This Page Better?

nVent ERIFLEX IBSADV120-630 IBS Advanced Round Insulated Braided Conductor, 236.82 kcmil, 0.41 in Mounting Hole, Copper/Thermoplastic Elastomer, Tin Plated

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

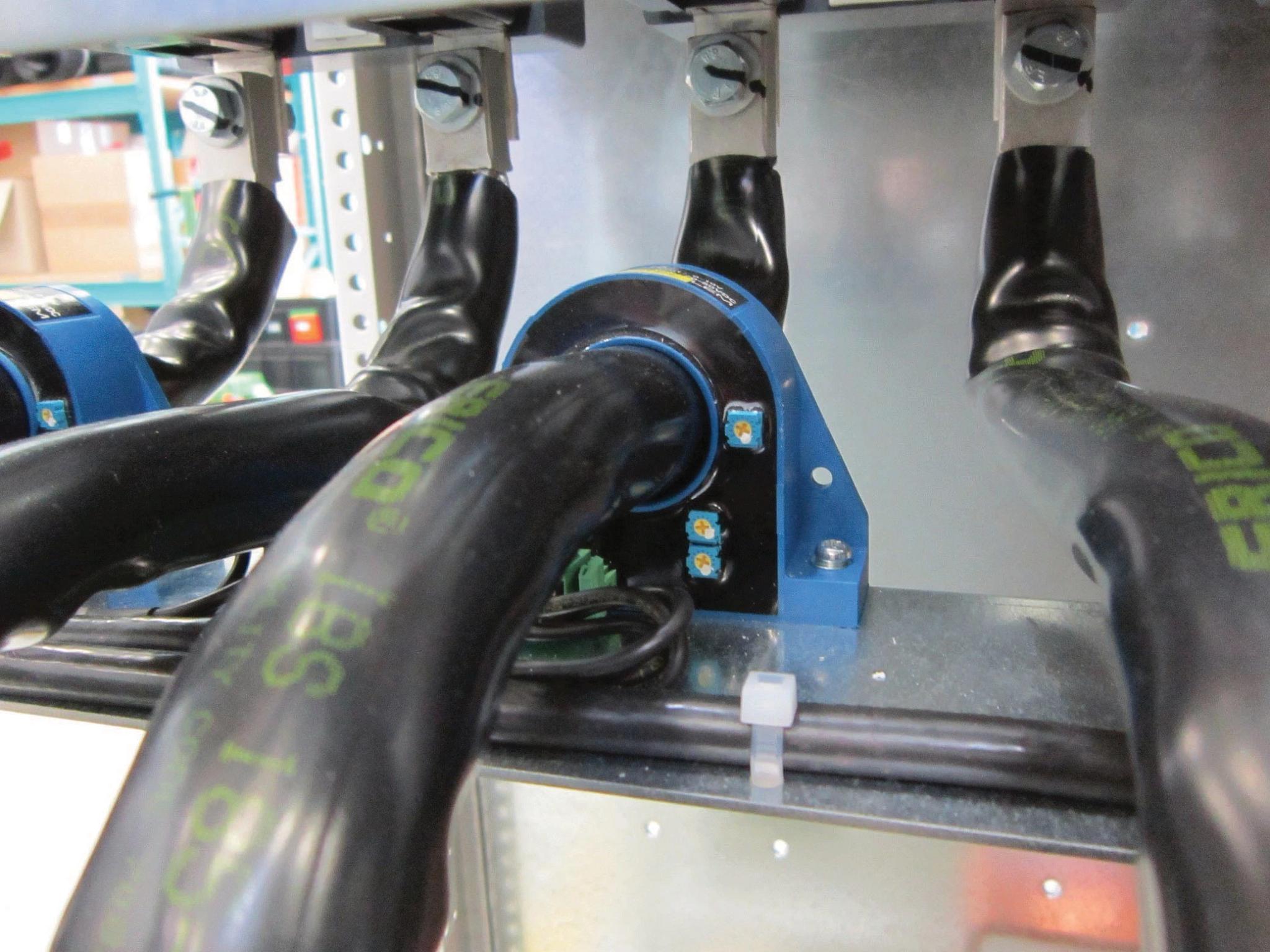

IBS Advanced Round Insulated Braided Conductor, Halogen Free are the ideal ready-to-install flexible wire replacement solution. Round IBS Advanced connect to the terminals of an electrical device without the need for additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. Round IBS Advanced are available in cross sections of 120, 185 and 240 mm² (236.82, 365.10, and 473.65 kcmil), lengths from 330 to 1,030 mm (9.06" to 40.55"), and amperages ranging from 420 to 630 A.
nVent ERIFLEX Braided Conductor, Advanced Round Insulated, Series: IBS, 236.82 kcmil Cable, 1.06 in Dia, 24.8 in Length, 400 A, 20 kV/mm Tensile, 0.41 in Mounting Hole, Copper/Thermoplastic Elastomer, Tin Plated

Specifications

 Amperage Rating 400 A
 Application Power Connection, Circuit Breakers, Marine and Offshore Applications
 Brand Name nVent ERIFLEX
 Cable Size 236.82 kcmil
 Finish Tin Plated
 Length 24.8 in
 Manufacturer Part Number IBSADV120-630
 Material Copper/Thermoplastic Elastomer
 Mounting Hole Size 0.41 in
 PART NUMBER KEYWORDS IBSADV120-630 ; IBSADV120630 ; 14844739 ; 534517 ; 782856961437 ; 78285696143 ; 0782856961437 ; 00782856961437
 Series IBS
 Standards/Approvals RoHS Compliant|CE Certified|cULus Listed|cURus Recognized|UL 67/758/854/2885/2556|IEC 60439-1/60695-2-1/60754-1/61034-2/61439-1/61439-1 Class II/62821-1/61439-1 Class II/60695-2-12 CC11418 FADV|ISO 5659-2 CC11518 FADV/5659-2|Bureau Veritas 41939|CSA File No. 90005/70173298|DNV GL TAE00003B8|EN 45545-2|UL (IEC) AVLV2 File No. E316390|UL 94 V-0 Flammability Rating
 Type Advanced Round Insulated
 Video Links

Features

▪ Resistant to vibration, improving reliability and performance
▪ Insulated by high-resistance, halogen free, flame retardant and low smoke material
▪ Improves assembly flexibility and aesthetics
▪ Quick and easy installation
▪ No additional cutting, stripping, crimping and punching needed
▪ Small wire diameter provides maximum flexibility
▪ Dramatically smaller and more flexible than comparable cable based on ampacity
▪ Better power density than cable with lower skin effect ratio
