5322 3M MOTOR LEAD SPLICING KIT (3 SPLICES/KIT) 05400712272

Mouse over image to zoom, click to enlarge

  • 5322 3M MOTOR LEAD SPLICING KIT (3 SPLICES/KIT) 05400712272
  • 5322 3M MOTOR LEAD SPLICING KIT (3 SPLICES/KIT) 05400712272
  • 5322 3M MOTOR LEAD SPLICING KIT (3 SPLICES/KIT) 05400712272

Description: 3M™, 5322, Motor Lead Pigtail Splice kit, Series: 5300, 5/8 kV, Tape Shield/Unshielded/Wire Shield Cable, 4 to 1/0 AWG Conductor, 0.43 to 0.65 in OD Insulation, 8 to 9 in Splice Length, Pigtail Connector, 90 deg C, EPDM Rubber, Black, 9 in L Dimensions

Manufacturer PN: 5322

UPC:  05400712272

Kendall Electric Inc PN: 2219012

Invoice Description:

5322 3M MOTOR LEAD SPLICING KIT (3 SPLICES/KIT) 05400712272


SPEC SHEET

▸ See All in Motor Lead Splices


How Can We Make This Page Better?

3M™ 5322 5300 Motor Lead Pigtail Splice kit, 5/8 kV, 4 to 1/0 AWG Conductor, 8 to 9 in L Splice, EPDM Rubber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

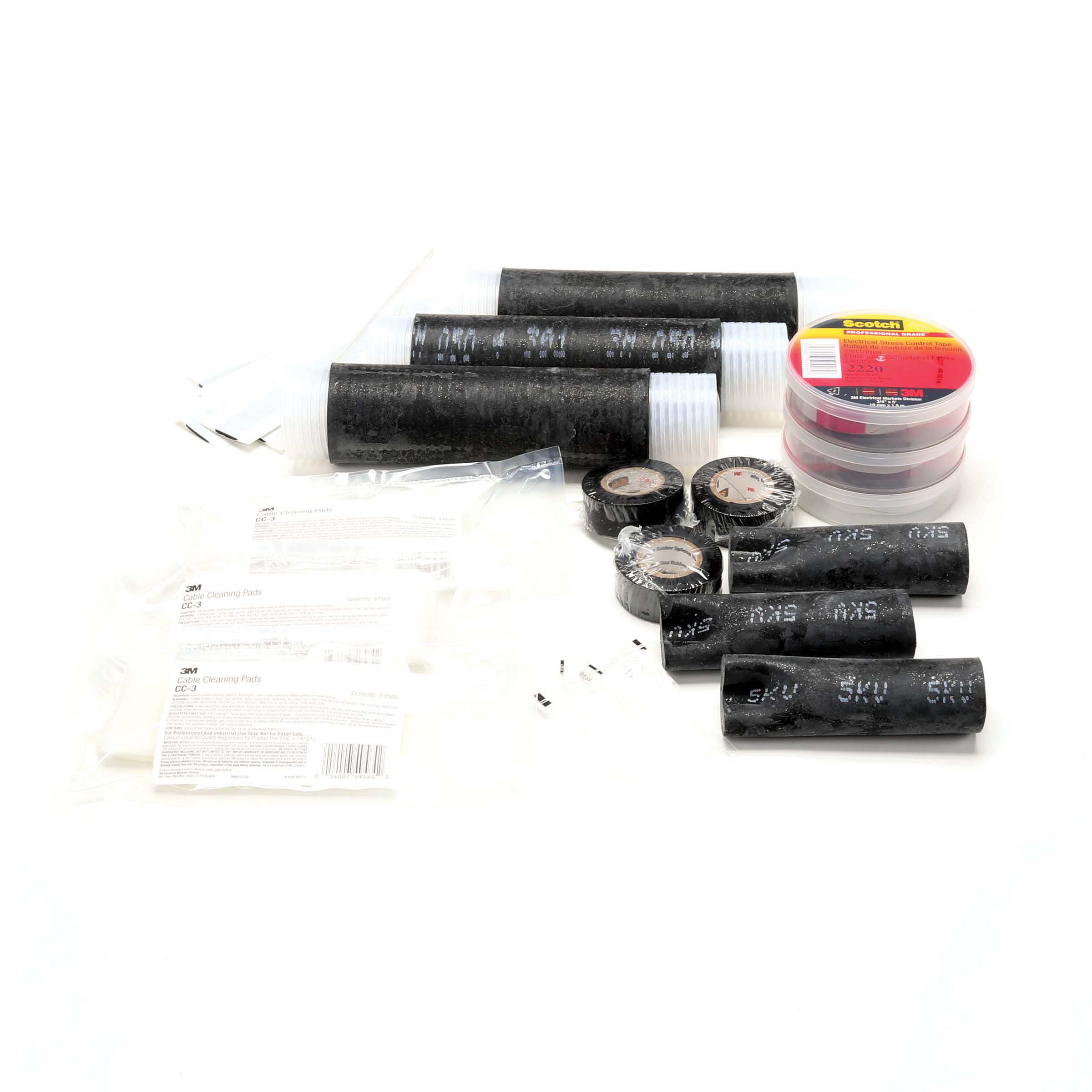

3M™ 5300 series motor lead pigtail splice kit contains 3 each of pigtail lug covers, cold shrink tubes, silicone grease tubes, solvent cleaning cloths, splicing tape 130C and more. This shielded and non-shielded splice kit features a slip on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture seal applications. It includes high dielectric constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross linked cable, ethylene propylene rubber cable, copper conductors and more. RoHS 2011/65/EU Compliant.
3M™, 5322, Motor Lead Pigtail Splice kit, Series: 5300, 5/8 kV, Tape Shield/Unshielded/Wire Shield Cable, 4 to 1/0 AWG Conductor, 0.43 to 0.65 in OD Insulation, 8 to 9 in Splice Length, Pigtail Connector, 90 deg C, EPDM Rubber, Black, 9 in L Dimensions

Specifications

 Application Splicing Motor Lead Cables to Incoming Feeder Cable Applications
 Brand Name 3M
 Cable Type Tape Shield/Unshielded/Wire Shield
 Color Black
 Conductor Size 4 to 1/0 AWG
 Connector Type Pigtail
 Dimensions 9 in L
 Fitting Type Pigtail
 Includes (9) Mastic Sealing Strips, (3) Pigtail Lug Covers, (3) Cold Shrink Tubes, (3) Rolls Scotch® 2200 Stress Control Tapes, (3) Bags of Solvent Cleaning Cloths, (3) Tubes of Silicone Grease, (3) Rolls Scotch® 130C Linerless Rubber Splicing Tape and (3) Instruction Sheets
 Insulation Size 0.43 to 0.65 in OD
 Manufacturer Part Number 5322
 Material EPDM Rubber
 Series 5300
 Splice Length 8 to 9 in
 Standards/Approvals CSA Certified|RoHS Compliant
 Temperature Rating 90 deg C
 Voltage Rating 5/8 kV

Features

▪ 1400 psi tensile strength
▪ 1 in L maximum bolt
▪ Polyethylene cable
▪ Fast and simple installation
▪ No torches or heat source required
▪ No special tool required to install splice
▪ THK walls to resist puncture and abrasion damage
▪ High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress
▪ Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connection for 1000 VAC and less cables sized 16 AWG to 500 kcmil
▪ Suitable for use with 30000 series copper compression lugs or other UL listed copper lug
▪ 365 V mil dielectric strength
▪ 750% elongation
