3M
5317 3M SPLICE KIT

Mouse over image to zoom, click to enlarge

  • 5317 3M SPLICE KIT
  • 5317 3M SPLICE KIT
  • 5317 3M SPLICE KIT

Description: 3M™, 5317, Motor Lead Splice Kit, In-Line, Series: 5300, 5/8 kV, Non-Shielded Cable, 2 to 1/0 AWG, 4 to 1/0 AWG Conductor, 0.43 to 0.65 in OD Insulation, 9-1/2 in Splice Length, 1 Conductors, Pigtail Connector, 90 deg C, EPDM Rubber, Black, 9-1/2 in L Dimensions

Manufacturer PN: 5317

UPC:  05400708314

Kendall Electric Inc PN: 2221733

Invoice Description:

5317 3M SPLICE KIT


SPEC SHEET

▸ See All in Motor Lead Splices


How Can We Make This Page Better?

3M™ 5317 5300 In-Line Motor Lead Splice Kit, 5/8 kV, 2 to 1/0 AWG, 4 to 1/0 AWG Conductor, 9-1/2 in L Splice, EPDM Rubber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

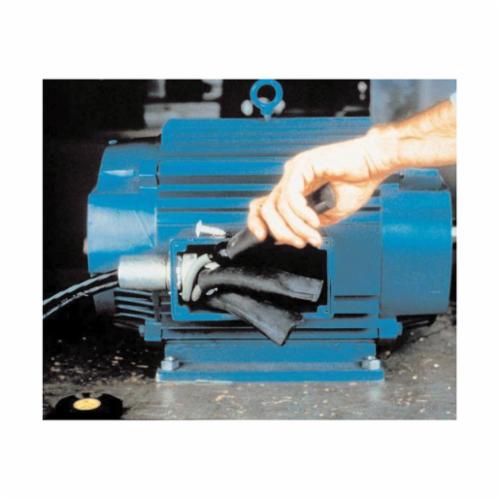

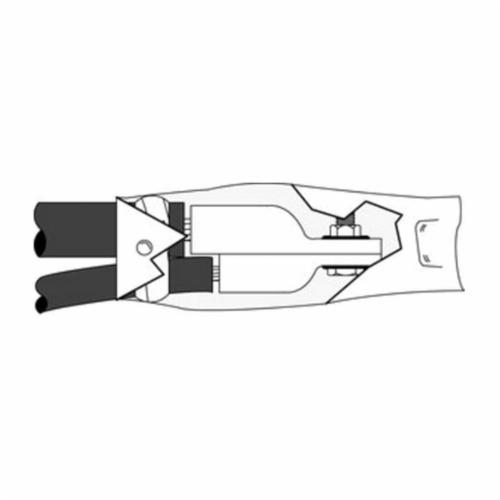

3M™ motor lead in-line splicing kits 5316/5319 series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of in-line connections at 1000 V and less. The splice's main component, the slip on splice cover is made from EPDM rubber. A mastic strip is used for the moisture seal.
3M™, 5317, Motor Lead Splice Kit, In-Line, Series: 5300, 5/8 kV, Non-Shielded Cable, 2 to 1/0 AWG, 4 to 1/0 AWG Conductor, 0.43 to 0.65 in OD Insulation, 9-1/2 in Splice Length, 1 Conductors, Pigtail Connector, 90 deg C, EPDM Rubber, Black, 9-1/2 in L Dimensions

Specifications

 Application For splicing motor lead cables to incoming feeder cables, copper compression, 1 or 2 hole lugs applications
 Brand Name 3M™
 Cable Type Non-Shielded
 Color Black
 Conductor Size 2 to 1/0 AWG, 4 to 1/0 AWG
 Connector Type Pigtail
 Dimensions 9-1/2 in L
 Fitting Type Pigtail
 Includes (3) Pigtail Lug Covers, (3) Locking Pins, (3) Tubes of Silicone Grease, (3) Bags of Solvent Cleaning Cloths, (3) Mastic Sealing Strips, (3) Scotch® Linerless Rubber Splicing Tape 130C Strips and (3) Instruction Sheets
 Insulation Size 0.43 to 0.65 in OD
 Manufacturer Part Number 5317
 Material EPDM Rubber
 Number of Conductors 1
 Series 5300
 Splice Length 9/1/2002 in
 Standards/Approvals CSA Certified|RoHS Compliant
 Temperature Rating 90 deg C
 Type In-Line
 Voltage Rating 8-May kV

Features

▪ 1400 psi tensile strength
▪ 3/4 in L maximum bolt
▪ Polyethylene cable
▪ 2 to 1/0 AWG feeder cable, 4 to 1/0 AWG motor lead conductor
▪ Fast and simple installation
▪ No torches or heat source required
▪ No special tool required to install splice
▪ THK walls to resist puncture and abrasion damage
▪ High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress
▪ Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connection for 1000 VAC and less cables sized 16 AWG to 500 kcmil
▪ Suitable for use with 30000 series copper compression lugs or other UL listed copper lug
▪ 365 V mil dielectric strength
▪ 750% elongation
