Eaton
5278C CWD FLANGED INLET 2P-3W 15A 125V 5-15 AH5278C

Mouse over image to zoom, click to enlarge

  • 5278C CWD FLANGED INLET 2P-3W 15A 125V 5-15 AH5278C
  • 5278C CWD FLANGED INLET 2P-3W 15A 125V 5-15 AH5278C
  • 5278C CWD FLANGED INLET 2P-3W 15A 125V 5-15 AH5278C

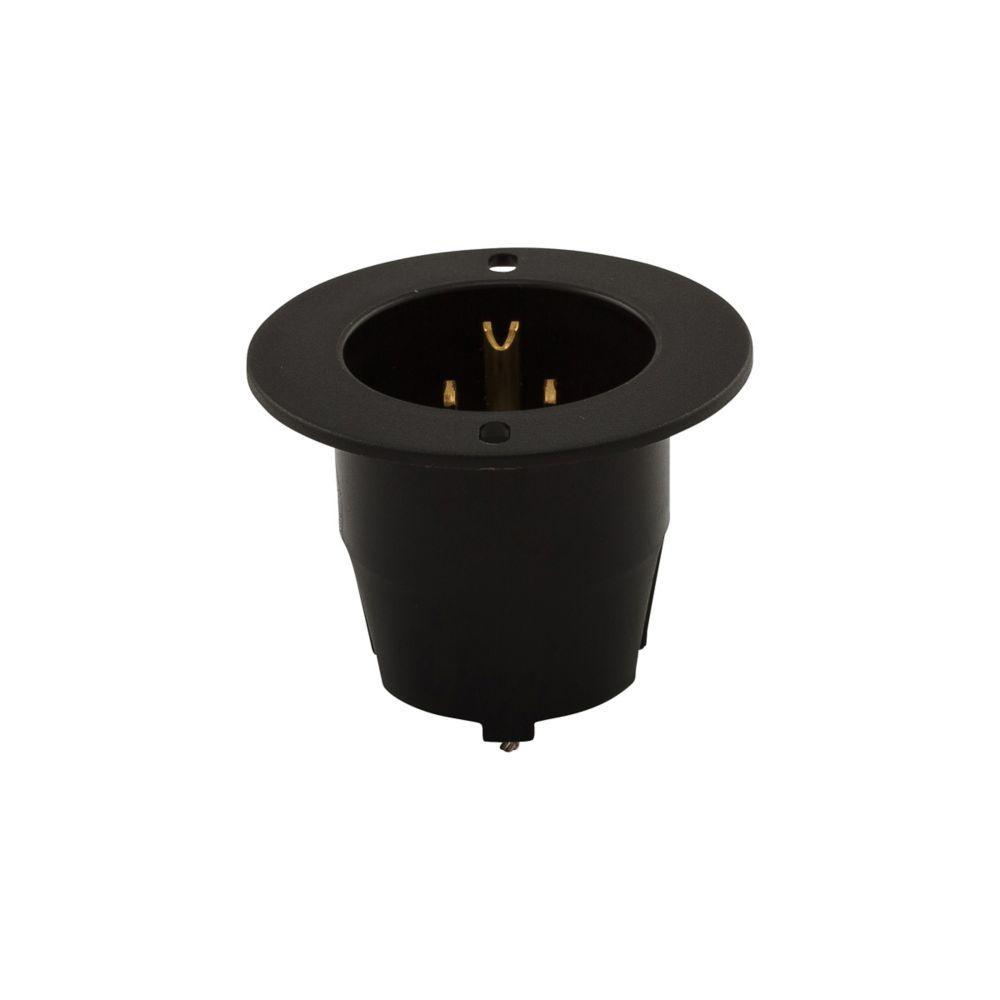

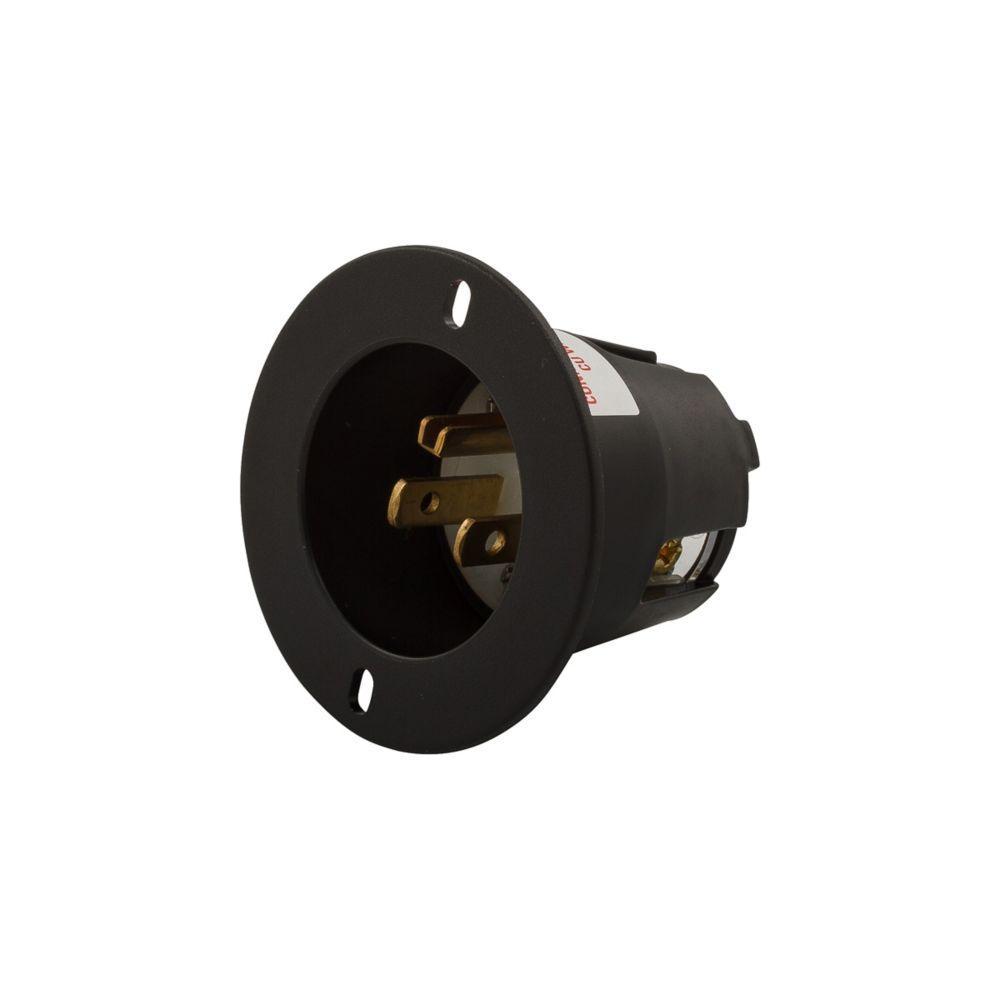

Description: EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Flanged Inlet, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 105 deg C, Screw Terminal, Lexan®/Nylon, Black/White, 2.56 in Dia x 1.84 in H Dimensions

Manufacturer PN: 5278C

UPC:  04089313335

Kendall Electric Inc PN: 18764

Invoice Description:

5278C CWD FLANGED INLET 2P-3W 15A 125V 5-15 AH5278C


SPEC SHEET

▸ See All in Straight Blade Flanged Inlets & Outlets


How Can We Make This Page Better?

EATON Arrow Hart™ Eaton Wiring Devices 5278C Straight Blade Flanged Inlet, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability




Description

Industrial grade flanged inlets and outlets - NEMA 5-15, 2-pole 3-wire designed to install quickly and easily and provide reliable performance in tough industrial environments.
EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Flanged Inlet, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 105 deg C, Screw Terminal, Lexan®/Nylon, Black/White, 2.56 in Dia x 1.84 in H Dimensions

Specifications

 Amperage Rating 15 A
 Brand Name EATON
 Color Black/White
 Cord Diameter 0.33 to 0.66 in
 Dimensions 2.56 in Dia x 1.84 in H
 Grade Industrial
 Manufacturer Part Number 5278C
 Material Lexan®/Nylon
 NEMA Rating NEMA 5-15
 Number of Poles 2
 Number of Wires 3
 Temperature Rating -40 to 105 deg C
 Terminal Type Screw
 Video Links
 Voltage Rating 125 VAC

Features

▪ Removable inserts allow for optimal cord retention over a full range of cord diameters
▪ Grommet helps prevent debris from entering wire terminal chamber
▪ Longer bosses on cord grip allow for excellent clamp force on large diameter cords
▪ Double dovetail provides for superior cord grip alignment and retention
▪ Terminal body assembly screws backed out for fast wiring and assembly
▪ Nylon outer shell, Lexan® interior body, terminal retainer

Resources

 Catalog Page
 Product Data Sheet
