ABB

Mouse over image to zoom, click to enlarge

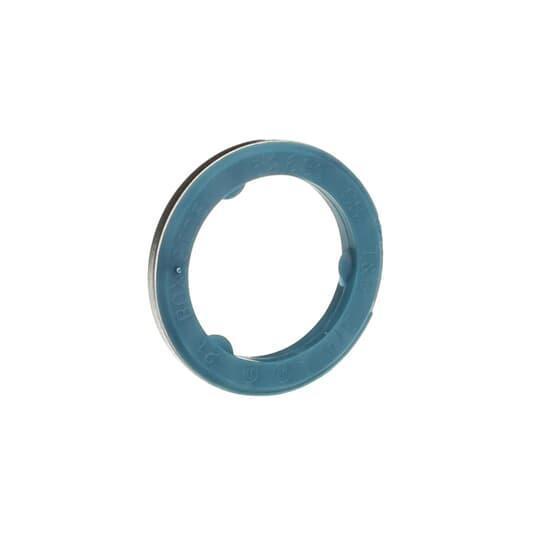

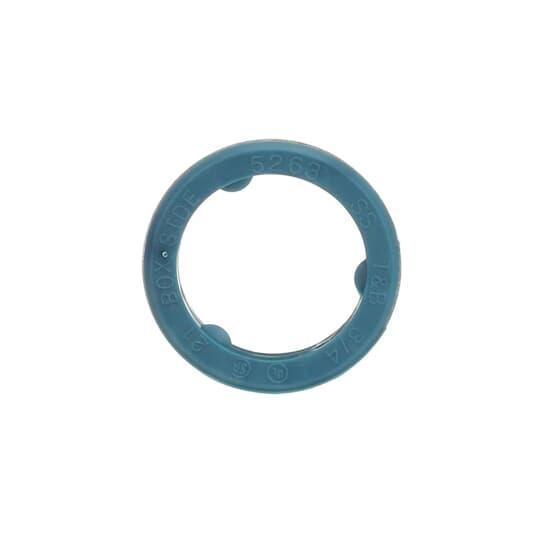

Description: T&B® Sealing Gasket, 3/4 in, For Use With: Liquid Tight Flexible Metal Conduits, 316 Stainless Steel, Gray, 1-1/2 in OD x 3/16 in THK

Manufacturer PN: 5263

UPC: 78621005263

Kendall Electric Inc PN: 58540

Invoice Description:

5263 T&B 3/4 LT O-RING ASSEM..

SPEC SHEET

T&B® 5263 Sealing Gasket With Retainer, Santoprene™ Sealing, 3/4 in, For Use With Liquid Tight Flexible Metal Conduits, 316 Stainless Steel

Description Specifications Features Resources

T&B® Sealing Gasket, 3/4 in, For Use With: Liquid Tight Flexible Metal Conduits, 316 Stainless Steel, Gray, 1-1/2 in OD x 3/16 in THK

Brand Name	T&B®
Color	Gray
Dimensions	1-1/2 in OD x 3/16 in THK
Manufacturer Part Number	5263
Material	316 Stainless Steel
Size	3/4 in
Standards/Approvals	CSA Certified\|UL File No. E13938
Suitable For Use With	Liquid Tight Flexible Metal Conduits

▪ Design locks resilient sealing material in stainless steel

▪ Steel retainer protects seal from extruding out under torque and limits compression to an optimum predetermined value, provides high quality seal

▪ Resilient material flows and seals rough edges

▪ When used with an externally threaded connector provides a tight seal against oil, fumes or moisture at the knockout opening

▪ NEMA 3R/4/6/13 enclosure

▪ Rubber seal
