Leviton

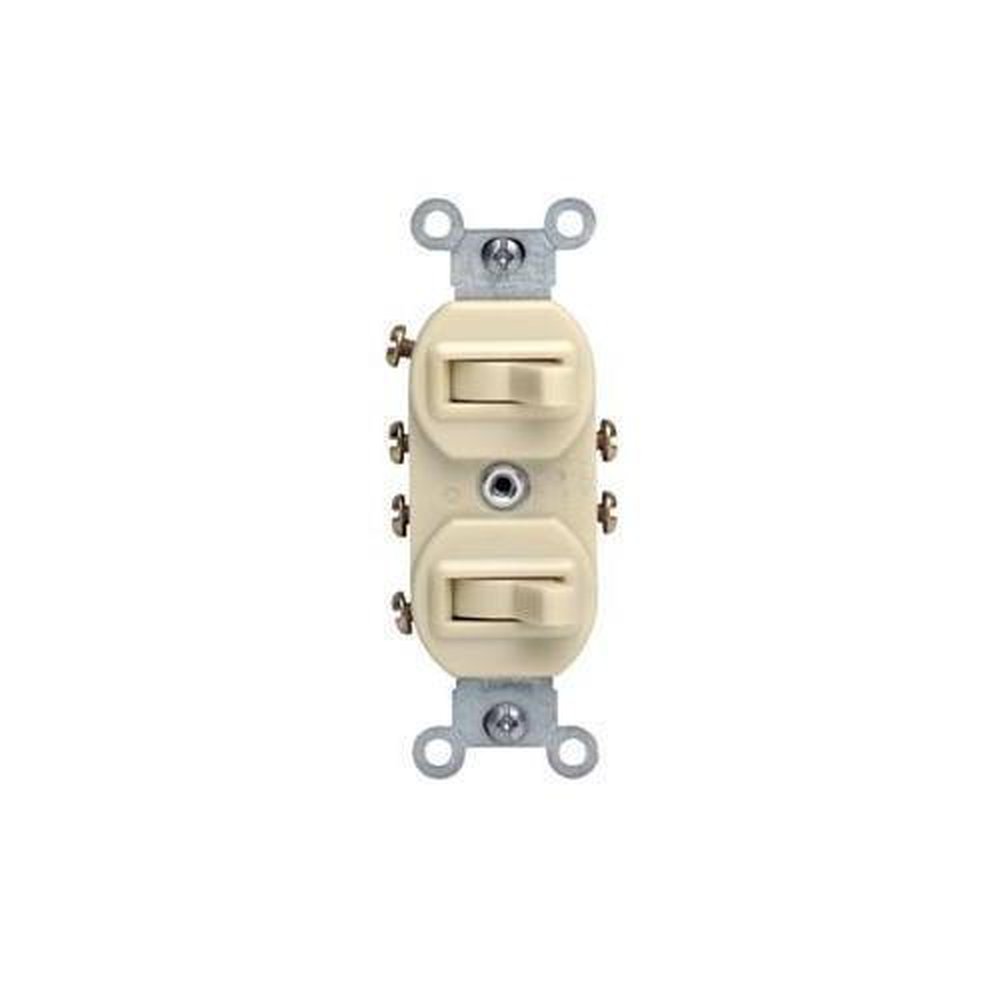

5243-W LEV 15A/120-277V COMB 2- 3WAY SWITCHES WHITE

Mouse over image to zoom, click to enlarge

Description: Leviton® AC Combination Switch, 3-Way Duplex Non-Grounding, 15 A, 125 V AC, 1800 W Electrical Rating, 3 Pole, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface/Wall Plate Mounting, 4.2 in H x 1.62 in W x 16 in D Size, 100 Operating Cycles, Environmental Conditions: -40 to 120 deg C Operating Temperature, Thermoplastic, White

Manufacturer PN: 5243-W

UPC:  07847722960

Kendall Electric Inc PN: 42395

Invoice Description:

5243-W LEV 15A/120-277V COMB 2- 3WAY SWITCHES WHITE


SPEC SHEET

▸ See All in Switches & Receptacles


How Can We Make This Page Better?

Leviton® 5243-W 3-Way Duplex Non-Grounding AC Combination Switch, 15 A, 125 V AC, 1800 W, 3 Poles

Log In for Pricing and Availability




Description

With Leviton® extensive assortment of combination devices, you can fill a 1-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited 2-years warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Leviton® AC Combination Switch, 3-Way Duplex Non-Grounding, 15 A, 125 V AC, 1800 W Electrical Rating, 3 Pole, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface/Wall Plate Mounting, 4.2 in H x 1.62 in W x 16 in D Size, 100 Operating Cycles, Environmental Conditions: -40 to 120 deg C Operating Temperature, Thermoplastic, White

Specifications

 Application Commercial Applications
 Brand Name Leviton®
 Color White
 Contact Rating 15 A at 120/277 V AC
 Electrical Ratings 15 A, 125 V AC, 1800 W
 Enclosure NEMA 5-15R
 Environmental Conditions -40 to 120 deg C Operating Temperature
 Manufacturer Part Number 5243-W
 Material Thermoplastic
 Mounting Surface/Wall Plate
 Number of Poles 3
 Operating Cycles 100
 PART NUMBER KEYWORDS 5243-W ; 5243W ; 7365569 ; 078477229606 ; 78477229606 ; 07847722960 ; 00078477229606
 Size 4.2 in H x 1.62 in W x 16 in D
 Standards/Approvals ANSI C-73|CSA C22.2 NO 111 File NO 152105/LR3413|NOM 057|NEMA WD-1/WD-6|UL94 V-2 Flammability Rating|UL File NO E7458/20
 Type 3-Way Duplex Non-Grounding
 Video Links

Features

▪ AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
▪ Terminal screw accept up to #12 AWG copper or copper clad wire
▪ Fits standard wallboxes
▪ Break-OFF tabs on devices with switches permit conversion to separate feeds
▪ Steel strap and thermoplastic toggle actuator
▪ Side wired terminal
▪ Dielectric voltage withstands 1500 VAC for 1 min
