ABB
52171MSX STC 4IN BOX SQ STL 30CU 1/23/4E-KO MS ARM..

Mouse over image to zoom, click to enlarge

  • 52171MSX STC 4IN BOX SQ STL 30CU 1/23/4E-KO MS ARM..
  • 52171MSX STC 4IN BOX SQ STL 30CU 1/23/4E-KO MS ARM..
  • 52171MSX STC 4IN BOX SQ STL 30CU 1/23/4E-KO MS ARM..
  • 52171MSX STC 4IN BOX SQ STL 30CU 1/23/4E-KO MS ARM..

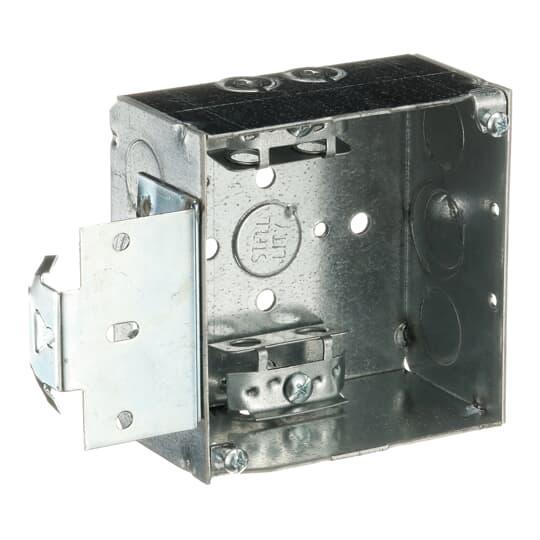

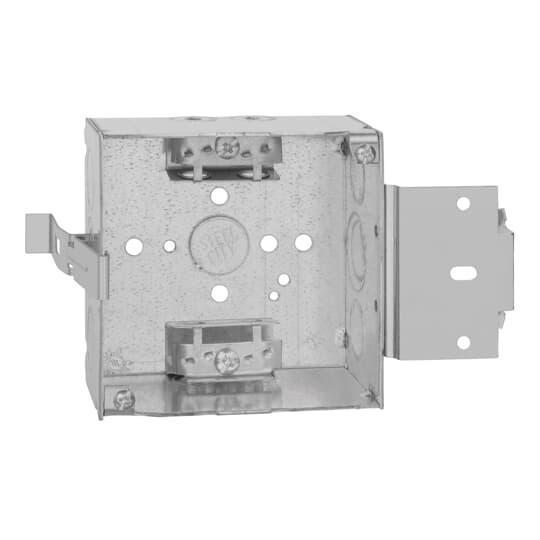

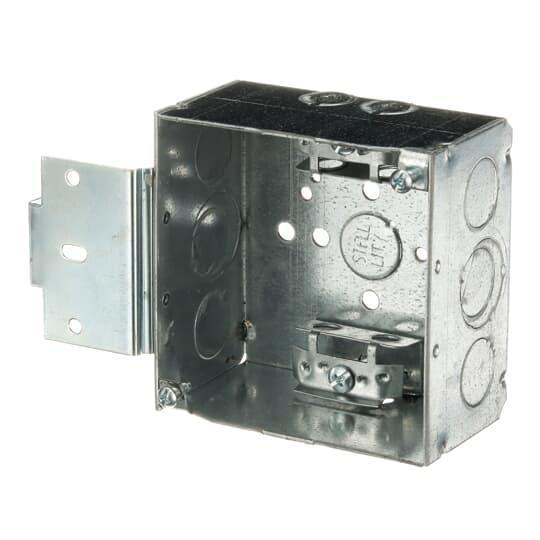

Description: Steel City®, 52171-MSX, Outlet Box, 1 Outlets, 11 Knockouts, 1/2, 3/4 in Knockout, Square Shape, Ceiling Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions

Manufacturer PN: 52171MSX

UPC:  78599116737

Kendall Electric Inc PN: 2506683

Invoice Description:

52171MSX STC 4IN BOX SQ STL 30CU 1/23/4E-KO MS ARM..


SPEC SHEET

▸ See All in Square Boxes


How Can We Make This Page Better?

Steel City® 52171-MSX Outlet Box, Steel, 30.3 cu-in Capacity, (1) Outlets, (11) Knockouts, 4 in H x 4 in W x 2-1/8 in D

Log In for Pricing and Availability




Description

Steel City® metallic outlet boxes and accessories provide innovative and efficient solutions for electrical rough-in. Save time and labor by shipping prefabricated, ready-to-install assemblies of Steel City® boxes, covers, fittings and brackets directly to the job site. Steel City® innovative bracket designs simplify the process of positioning and mounting electrical outlet boxes.
Steel City®, 52171-MSX, Outlet Box, 1 Outlets, 11 Knockouts, 1/2, 3/4 in Knockout, Square Shape, Ceiling Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions

Specifications

 Application For armored and metal clad cables
 Brand Name Steel City
 Color Silver
 Dimensions 4 in H x 4 in W x 2-1/8 in D
 Finish Pre-Galvanized
 Includes Metal Stud Bracket and C-3 Armored Cable Clamp
 Knockout Size 1/2, 3/4 in
 Manufacturer Part Number 52171-MSX
 Material Steel
 Mounting Type Ceiling
 Number of Knockouts 11
 Number of Outlets 1
 PART NUMBER KEYWORDS 52171-MSX ; 52171MSX ; 7TAA001040R0015 ; 10722893 ; 785991167375 ; 78599116737 ; 00785991167375
 Shape Square
 Standards/Approvals UL File No. E2969

Features

▪ Welded construction
▪ Accepts all standard device covers and tile rings
▪ Center mark locator window enables accurate positioning
▪ Patented bracket design has teeth that sink into the stud for a secure installation and mounts to open and closed side of stud, providing flexibility
▪ MS bracket boxes are the fastest metal stud install in the industry

Resources

 Catalog Page
 Product Data Sheet
