Leviton

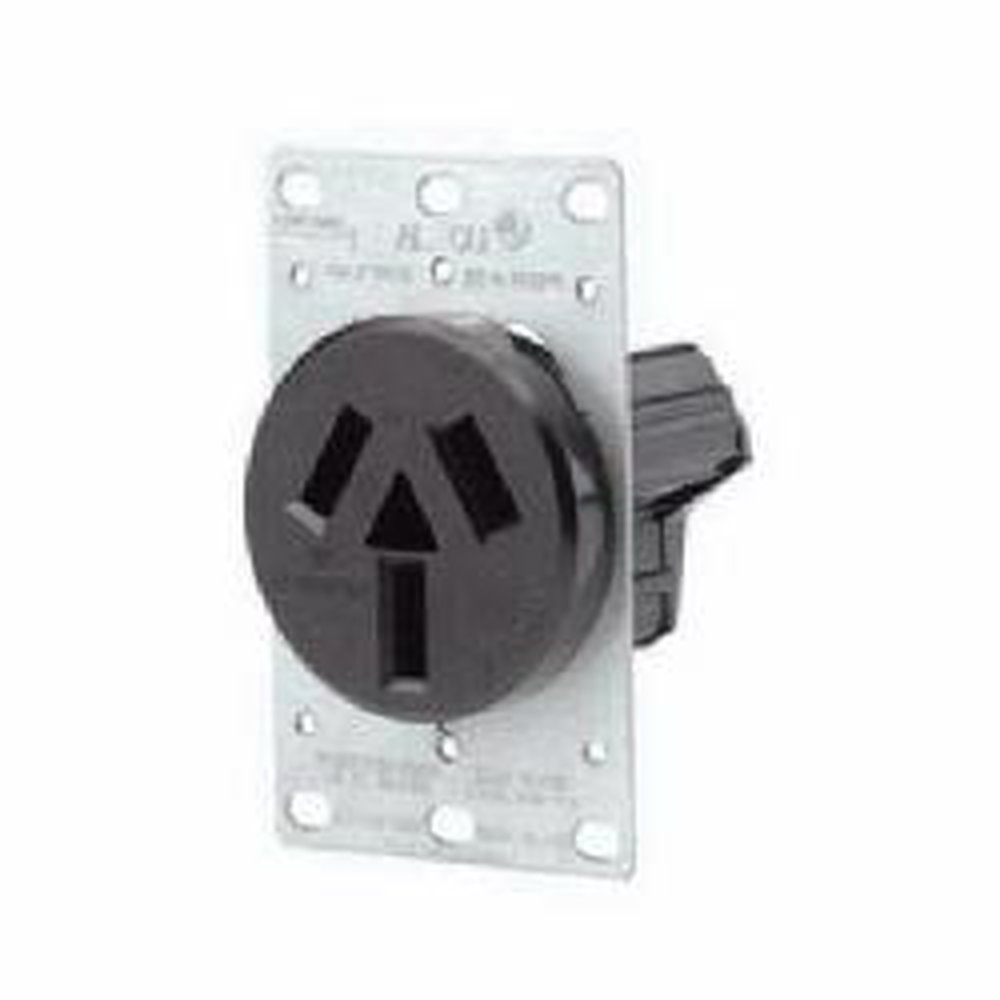

5206-S10 LEVITON 50A RECPT

Mouse over image to zoom, click to enlarge

Description: Leviton® Straight Blade Receptacle, 125/250 V AC, 50 A, 3 hp, 3 Pole, 3 Wires, NEMA 10-50R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Black

Manufacturer PN: 5206-S10

UPC:  07847790573

Kendall Electric Inc PN: 3708534

Invoice Description:

5206-S10 LEVITON 50A RECPT


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Leviton® 5206-S10 Straight Blade Receptacle, 125/250 V AC, 50 A, 3 Poles, 3 Wires, Black

Log In for Pricing and Availability




Description

Built of durable thermoplastic, Leviton® range and Dryer power outlets - in flush mount, surface mount and panel mount versions - come equipped with heavy gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton® wide range of 2.15"-diameter wallplates and mounting hardware is included.
Leviton® Straight Blade Receptacle, 125/250 V AC, 50 A, 3 hp, 3 Pole, 3 Wires, NEMA 10-50R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Black

Specifications

 Amperage Rating 50 A
 Application Industrial Applications
 Brand Name Leviton®
 Color Black
 Grade Industrial
 Horsepower 3 hp
 Manufacturer Part Number 5206-S10
 Material Nylon
 NEMA Rating NEMA 10-50R
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS 5206-S10 ; 5206S10 ; 14073946 ; 078477905739 ; 78477905739 ; 07847790573 ; 00078477905739
 Standards/Approvals ANSI C73|CSA C22.2 No. 42 File No. 152105|NOM 057|NEMA WD6|UL 498 File No. E13399
 Temperature Rating -40 to 60 deg C
 Terminal Type Side Wire
 Voltage Rating 125/250 V AC

Features

▪ Heavy gauge, double wipe copper alloy contacts
▪ Easy-to-wire terminals accept up to #4 AWG conductors
▪ Terminals marked for easy identification and fast wiring
▪ Flush mount devices fit single or two gang outlet boxes
