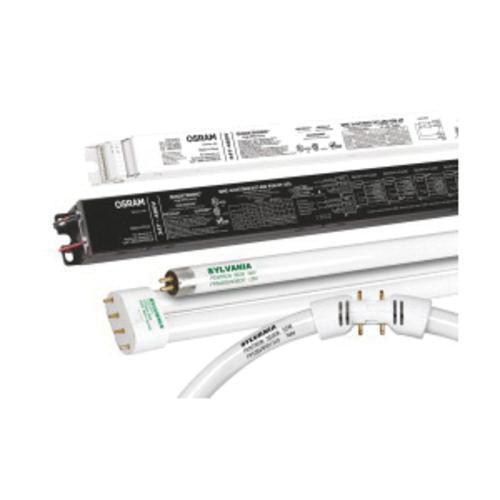

51486 QHE 2x54T5HO/347-480 PSN HT SYLVANIA HIGH EFFICIENCY BALLAST..

Mouse over image to zoom, click to enlarge

  • 51486 QHE 2x54T5HO/347-480 PSN HT SYLVANIA HIGH EFFICIENCY BALLAST..
  • 51486 QHE 2x54T5HO/347-480 PSN HT SYLVANIA HIGH EFFICIENCY BALLAST..

Description: Sylvania QUICKTRONIC® Electronic Ballast, High Efficiency, 54 W Lamp, 118/117 W Wattage, 347 to 480 VAC, 0.35/0.25 A, 50/60 Hz Frequency, Programmed/Rapid Start, -20 deg F Minimum Starting, Total Harmonic Distortion: <10 %, Power Factor: >0.98, 2 Lamps, Ballast Factor: 1, 70 deg C, 16.693 in L x 1.157 in W x 0.945 in H Dimensions

Manufacturer PN: 51486

Kendall Electric Inc PN: 4621212

Invoice Description:

51486 QHE 2x54T5HO/347-480 PSN HT SYLVANIA HIGH EFFICIENCY BALLAST..


SPEC SHEET

▸ See All in Electronic Fluorescent Ballasts


How Can We Make This Page Better?

Sylvania QUICKTRONIC® 51486 High Efficiency Electronic Ballast, 54 W Lamp, 347 to 480 VAC, Programmed/Rapid, 1 Ballast Factor

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Sylvania QUICKTRONIC® Electronic Ballast, High Efficiency, 54 W Lamp, 118/117 W Wattage, 347 to 480 VAC, 0.35/0.25 A, 50/60 Hz Frequency, Programmed/Rapid Start, -20 deg F Minimum Starting, Total Harmonic Distortion: <10 %, Power Factor: >0.98, 2 Lamps, Ballast Factor: 1, 70 deg C, 16.693 in L x 1.157 in W x 0.945 in H Dimensions

Specifications

 Amperage Rating 0.35/0.25 A
 Ballast Factor 1
 Brand Name Sylvania
 Dimensions 16.693 in L x 1.157 in W x 0.945 in H
 Frequency Rating 50/60 Hz
 Lamp Wattage 54 W
 Manufacturer Part Number 51486
 Minimum Starting Temperature -20 deg F
 Number of Lamps 2
 PART NUMBER KEYWORDS 51486 ; QHE-2x54T5HO-347-480-PSN-HT-(N ; QHE2x54T5HO347480PSNHTN ; 11915964 ; 046135514869 ; 46135514869 ; 04613551486 ; 00046135514869
 Power Factor >0.98
 Standards/Approvals RoHS Compliant|UL Listed|CSA Certified|FCC CFR 47 Part 18
 Start Type Programmed/Rapid
 Temperature Range 70 deg C
 Total Harmonic Distortion <10 %
 Type High Efficiency
 Video Links
 Voltage Rating 347 to 480 V AC
 Wattage 118/117 W

Features

▪ QUICKSENSE® ballast technology
▪ Operates at >42 kHz to reduce potential interference with infrared control systems
▪ Low harmonic distortion
▪ Lead-free solder and manufacturing process

Resources

 Product Data Sheet
