CANTEX

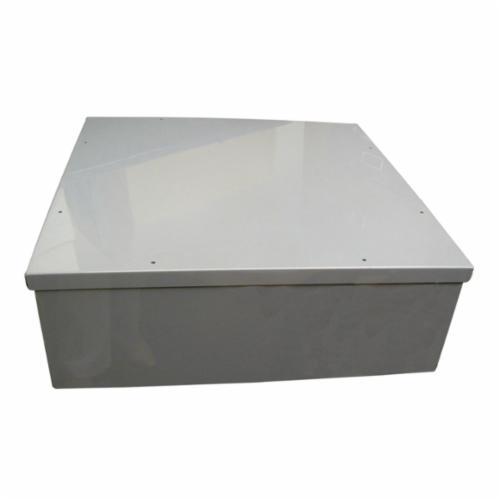

5133163 CANTEX PVC JUNCTION BOX 16X14X6 W/ SCREW COVER & GASKET NO KO'S

Mouse over image to zoom, click to enlarge

  • 5133163 CANTEX PVC JUNCTION BOX 16X14X6 W/ SCREW COVER & GASKET NO KO'S
  • 5133163 CANTEX PVC JUNCTION BOX 16X14X6 W/ SCREW COVER & GASKET NO KO'S

Description: CANTEX® Conduit Junction Box, Fabricated, 1310 cu-in Capacity, 16 x 14 x 6 in Size, Surface Mounting, For Use With: SCH 40/80 Conduit, PVC, Gray, 6-1/4 in H x 16 in W x 16-7/8 in D Dimensions

Manufacturer PN: 5133163

UPC:  08870051718

Kendall Electric Inc PN: 2488270

Invoice Description:

5133163 CANTEX PVC JUNCTION BOX 16X14X6 W/ SCREW COVER & GASKET NO KO'S


SPEC SHEET

▸ See All in Conduit Junction Boxes


How Can We Make This Page Better?

CANTEX® 5133163 Fabricated Conduit Junction Box, 16 x 14 x 6 in, 1310 cu-in Capacity, For Use With SCH 40/80 Conduit, PVC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

CANTEX® is a leading producer of PVC products, with eight manufacturing facilities located strategically from east to west across the country. These facilities feature some of the most modern production equipment and advanced process technology found anywhere in the industry. Production facilities include extrusion, injection molding and fabrication processes to produce the broad lines of PVC Products which serve the power, utility, building construction and communications markets.
CANTEX® Conduit Junction Box, Fabricated, 1310 cu-in Capacity, 16 x 14 x 6 in Size, Surface Mounting, For Use With: SCH 40/80 Conduit, PVC, Gray, 6-1/4 in H x 16 in W x 16-7/8 in D Dimensions

Specifications

 Application For allowing multiple conduits to be connected and wire splices made within
 Brand Name CANTEX
 Color Gray
 Dimensions 6-1/4 in H x 16 in W x 16-7/8 in D
 Manufacturer Part Number 5133163
 Material PVC
 Mounting Type Surface
 Size 16 x 14 x 6 in
 Standards/Approvals ARRA Compliant|RoHS Compliant|UL File No. E205935 (QCUP)|UL Control 92CM|Marine Listed|CSA Certified
 Suitable For Use With SCH 40/80 Conduit
 Type Fabricated

Features

▪ Appropriate round hole for conduit entrance must be cut
▪ May be concrete encased or buried but not warranted or listed to be watertight for all circumstances
▪ It is surface mounted and uses male/box adapters to secure multiple conduits to box
▪ Rust and corrosion resistant and easy to install
▪ Belled end eliminates the need for special coupling
▪ May be used in underground applications
▪ Schedule 40 can be used in walls, floors and ceilings, schedule 80 is for above ground and entrance applications
▪ Zinc plated steel screw, neoprene gasket
