United Technologies
50SING-N5-40WH EDWARDS GREEN ADAPTABEACON 120V

Mouse over image to zoom, click to enlarge

  • 50SING-N5-40WH EDWARDS GREEN ADAPTABEACON 120V
  • 50SING-N5-40WH EDWARDS GREEN ADAPTABEACON 120V

Description: Edwards Signaling™ Steady-On Beacon, Series: 50 Series, 120 VAC, 0.29 A, 40 W Wattage, 6 in Diameter, Halogen Lamp, Green, 65 fpm Flash, 3328 cd Light Output, 20000 hr Average Life, Specifications Met: UL Listed, Panel Mounting, -31 to 150 deg F, Aluminum Housing Material, 5-7/8 in H

Manufacturer PN: 50SING-N5-40WH

UPC:  78264026566

Kendall Electric Inc PN: 2130322

Invoice Description:

50SING-N5-40WH EDWARDS GREEN ADAPTABEACON 120V


SPEC SHEET

▸ See All in Steady Beacons


How Can We Make This Page Better?

Edwards Signaling™ 50SING-N5-40WH Steady-On Beacon, 120 VAC, Halogen Lamp, 6 in Dia, Panel Mounting, Green, Specifications Met: UL Listed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

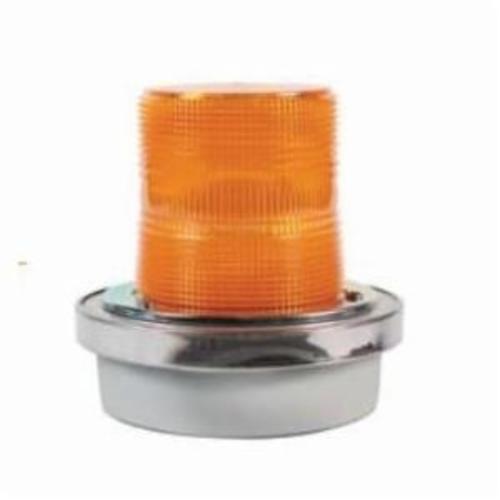

Edwards 50SIN series steady-on halogen beacons are signaling devices, designed for indoor or outdoor applications where a continuous (steady-on) light source is required. The base is cast aluminum and can function as a junction box. The double fresnel lens is made of Shatter-resistant polycarbonate and optically engineered to maximize light distribution and viewing distance.
Edwards Signaling™ Steady-On Beacon, Series: 50 Series, 120 VAC, 0.29 A, 40 W Wattage, 6 in Diameter, Halogen Lamp, Green, 65 fpm Flash, 3328 cd Light Output, 20000 hr Average Life, Specifications Met: UL Listed, Panel Mounting, -31 to 150 deg F, Aluminum Housing Material, 5-7/8 in H

Specifications

 Amperage Rating 0.29 A
 Application Indoor and Outdoor Applications
 Average Life 20000 hr
 Brand Name Edwards Signaling™
 Color Green
 Dimensions 5-7/8 in H
 Flash Rate 65 fpm
 Housing Material Aluminum
 Lamp Type Halogen
 Light Output 3328 cd
 Manufacturer Part Number 50SING-N5-40WH
 Mounting Type Panel
 Series 50 Series
 Specifications Met UL Listed
 Standards/Approvals ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Voltage Rating 120 VAC
 Wattage 40 W

Features

▪ Shatter-resistant double fresnel polycarbonate lens
▪ Cast aluminum base can function as a junction box
▪ Designed for 4 in octagonal box

Resources

 Catalog Page
 Product Data Sheet
