Leviton
4S089-2IP LEVITON HOUSING S/M 2PT SHLD IV 07847745055

Mouse over image to zoom, click to enlarge

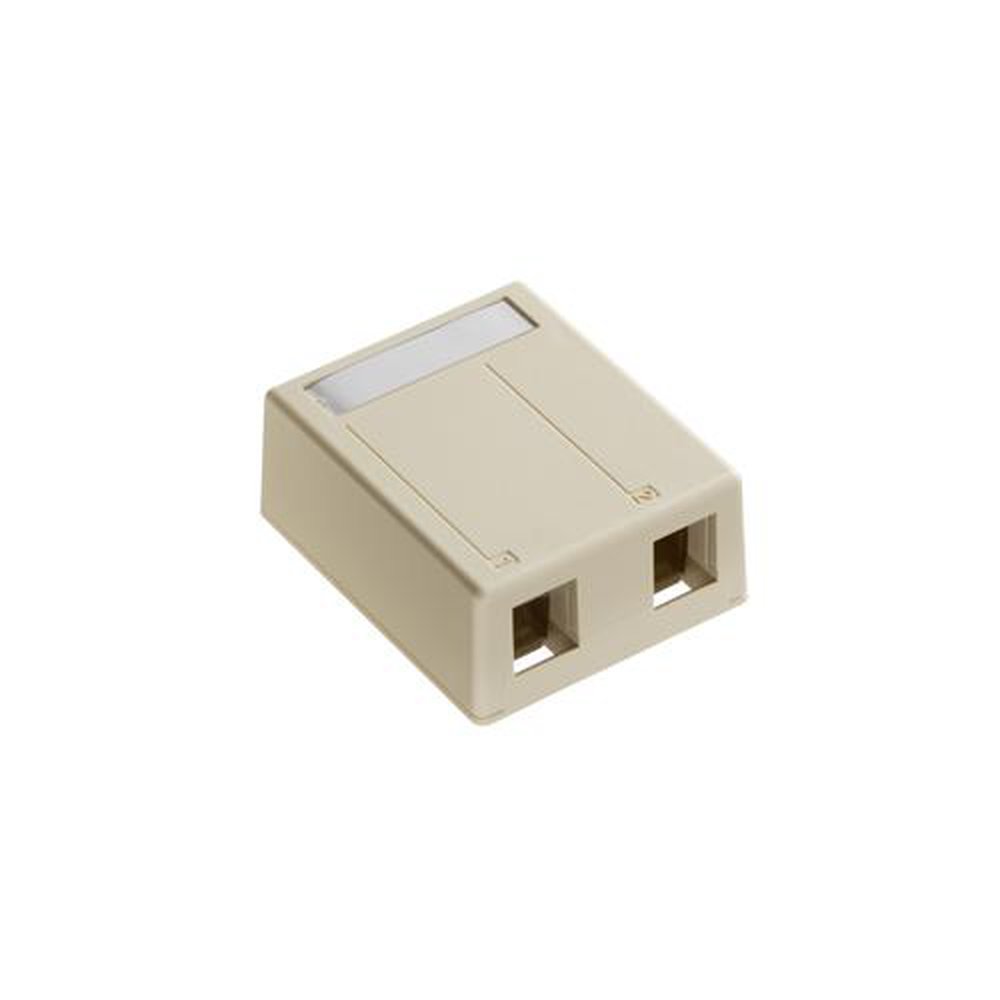

Description: Leviton®, 4S089-2IP, Outlet Box, 2-Port, Snap-In Module, For Use With: QuickPort® Shielded Connector, Surface Mounting, 1.22 in Length, 2.-1/2 in Width, 3 in Height, ABS, Ivory

Manufacturer PN: 4S089-2IP

UPC:  07847745055

Kendall Electric Inc PN: 2840855

Invoice Description:

4S089-2IP LEVITON HOUSING S/M 2PT SHLD IV 07847745055


SPEC SHEET

How Can We Make This Page Better?

Leviton® 4S089-2IP 2-Port Outlet Box, Snap-In Module, For Use With QuickPort® Shielded Connector, Surface Mounting, ABS

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Surface-Mount Housing accepts two or four QuickPort shielded connectors (sold separately). Use to support voice/data applications in open office, retrofit, and other surface-mount environments. Surface-mount housings are compatible with all QuickPort snap-in modules and connectors, and are available in two colors (white and ivory).
Leviton®, 4S089-2IP, Outlet Box, 2-Port, Snap-In Module, For Use With: QuickPort® Shielded Connector, Surface Mounting, 1.22 in Length, 2.-1/2 in Width, 3 in Height, ABS, Ivory

Specifications

 Application Commercial Applications
 Brand Name Leviton®
 Color Ivory
 Height 3 in
 Includes (2) Self-Tapping Screws, (2) 1 in Double Back Adhesive Tape
 Length 1.22 in
 Manufacturer Part Number 4S089-2IP
 Material ABS
 Module Type Snap-In
 Mounting Type Surface
 PART NUMBER KEYWORDS 4S089-2IP ; 4S0892IP
 Standards/Approvals TIA/EIA-568-B|UL Listed|UL94 V-0 Flammability Rating
 Suitable For Use With QuickPort® Shielded Connector
 Type 2-Port
 Width 2.-1/2 in

Features

▪ Flammability rated UL94 V-0, fire retardant ABS plastic
▪ 1.22 in depth
▪ All ports are on one side, the housing mounts horizontally or vertically
▪ Designation label provided for identification purposes
▪ Knockouts in cover are compatible with major raceway brands
▪ Accept 2 to 4 QuickPort® snap-in connector module
▪ Tie wrap anchor points are provided at all cable entry areas
▪ Cover has knockouts for raceway
▪ Side or rear cable entry
▪ Specially designed for use with Leviton® shielded connectors
▪ Compatible with all QuickPort® connectors
