Leviton
49990-MSC LEVITON CONN FCURE SC MULTI 2BT 07847708581

Mouse over image to zoom, click to enlarge

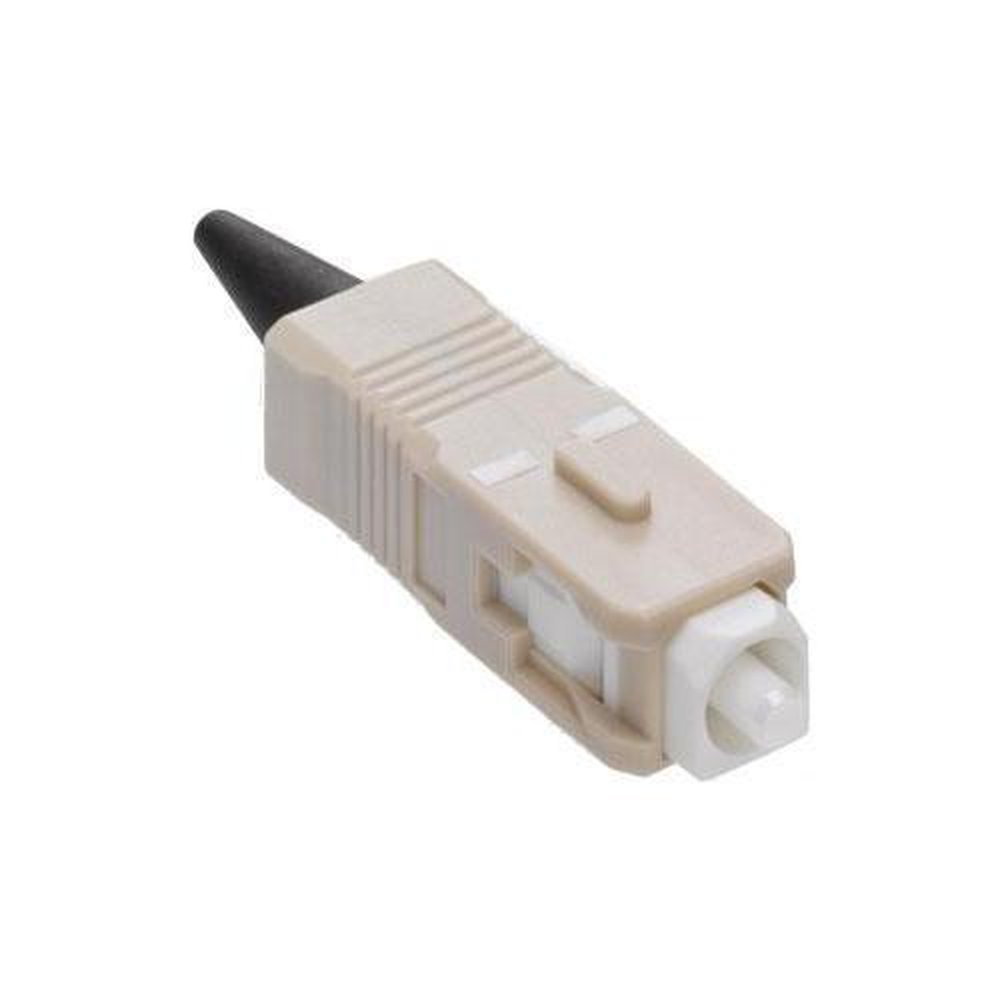

Description: Leviton®, 49990-MSC, Connector, Anaerobic Adhesive, Series: 49990, SC Connector, Multi-Mode Fiber, Beige

Manufacturer PN: 49990-MSC

UPC:  07847708581

Kendall Electric Inc PN: 2278559

Invoice Description:

49990-MSC LEVITON CONN FCURE SC MULTI 2BT 07847708581


SPEC SHEET

▸ See All in Fiber Optic Connectors


How Can We Make This Page Better?

Leviton® 49990-MSC 49990 Anaerobic Adhesive Connector, SC Connector, Multi-Mode Fiber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Levitons Fast-Cure anaerobic adhesive-style connectors are designed for quick and easy termination in the field. Fast-Cure connectors are available in single-mode and multimode versions in ST, SC, FC and LC styles. Fast-Cure connectors are designed for indoor and outdoor applications where reliability, durability and ease of installation are an important consideration. Typical installations are in premise LAN environments or anywhere adhesive-style connectors are specified.
Leviton®, 49990-MSC, Connector, Anaerobic Adhesive, Series: 49990, SC Connector, Multi-Mode Fiber, Beige

Specifications

 Application Commercial, Inside and Outside Plant Applications
 Brand Name Leviton®
 Color Beige
 Connector Type SC
 Fiber Type Multi-Mode
 Fitting Type SC
 Manufacturer Part Number 49990-MSC
 PART NUMBER KEYWORDS 49990-MSC ; 49990MSC ; 7339358 ; 49990MSC ; 078477085813 ; 78477085813 ; 07847708581 ; 00078477085813
 Series 49990
 Standards/Approvals ANSI/TIA-568-C.3/604-3|GR-326
 Type Anaerobic Adhesive

Features

▪ High cable retention crimp for jacketed fiber
▪ Recommended for indoor and outdoor usage
▪ Body of ST connectors are metal
▪ 0.2 dB typical and < 0.3 dB insertion loss
▪ > 25 dB typical return loss
▪ -40 to 85 deg C operating temperature
▪ Typical termination in <3 min
▪ Low insertion loss connection
▪ Higher fiber retention than mechanical connectors
▪ No curing oven or proprietary tool required
▪ Compatible with MOS, QuickPort®, SDX and LightSpace® adapter plates
▪ Most robust connection
▪ 25 dB return loss
▪ -40 to 85 deg C temperature rating
▪ Precision pre-radiused zirconia ferrules
