United Technologies

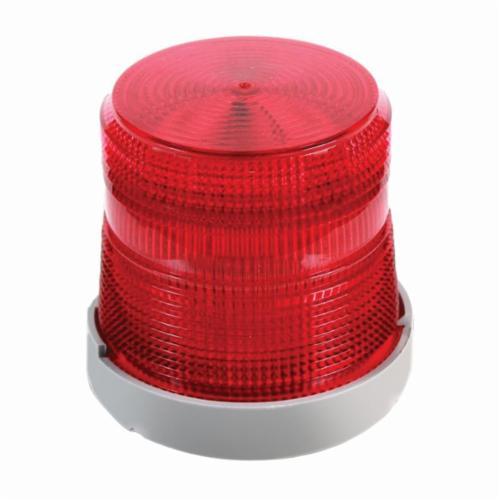

48FINR-G1-20WH EDWARDS FLASH RED 24DC 78264025439

Mouse over image to zoom, click to enlarge

  • 48FINR-G1-20WH EDWARDS FLASH RED 24DC 78264025439
  • 48FINR-G1-20WH EDWARDS FLASH RED 24DC 78264025439
  • 48FINR-G1-20WH EDWARDS FLASH RED 24DC 78264025439

Description: Edwards Signaling™ Flashing Beacon, Weatherproof, Series: 48FIN, 24 V DC, 0.8 A, 4-9/32 in Dia, Halogen Lamp, Red Lens, 65 fpm Flash Rate, 25000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, ABS Base/Polycarbonate Dome Housing, 4-7/32 in H

Manufacturer PN: 48FINR-G1-20WH

UPC:  78264025439

Kendall Electric Inc PN: 2211610

Invoice Description:

48FINR-G1-20WH EDWARDS FLASH RED 24DC 78264025439


SPEC SHEET

▸ See All in Flashing Beacons


How Can We Make This Page Better?

Edwards Signaling™ 48FINR-G1-20WH Weatherproof Flashing Beacon, 24 V DC, Halogen Lamp, 4-9/32 in Dia, Panel Mount, Red Lens

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Edwards 48 Series AdaptaBeacon® flashing lights incorporate a unique double fresnel lens that has been optically engineered to maximize brilliance. This is accomplished with a series of complementing fresnels that cause the dome to "fill" when the light is operating. Beam distance is also increased with fresnel lenses. The incandescent lights are available in six colors: red, amber, blue, green, magenta and clear.
Edwards Signaling™ Flashing Beacon, Weatherproof, Series: 48FIN, 24 V DC, 0.8 A, 4-9/32 in Dia, Halogen Lamp, Red Lens, 65 fpm Flash Rate, 25000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, ABS Base/Polycarbonate Dome Housing, 4-7/32 in H

Specifications

 Amperage Rating 0.8 A
 Application Indoor/Outdoor Applications
 Average Life 25000 hr
 Brand Name Edwards Signaling™
 Dimensions 4-7/32 in H
 Flash Rate 65 fpm
 Housing Material ABS Base/Polycarbonate Dome
 Lamp Type Halogen
 Lens Color Red
 Manufacturer Part Number 48FINR-G1-20WH
 Mounting Type Panel
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 48FINR-G1-20WH ; 48FINRG120WH ; 782640254394 ; 78264025439 ; 00782640254394
 Series 48FIN
 Standards/Approvals UL 1638|UL/cUL Listed|ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Type Weatherproof
 Voltage Rating 24 V DC

Features

▪ For outdoor use, lens should face up
▪ Weatherproof
▪ Snap-on high impact polycarbonate/ABS base, shatter resistant polycarbonate lens
