United Technologies
48FINA-N5-25WH EDW FLASH HALOGEN BEACON 120V AC AMB

Mouse over image to zoom, click to enlarge

  • 48FINA-N5-25WH EDW FLASH HALOGEN BEACON 120V AC AMB
  • 48FINA-N5-25WH EDW FLASH HALOGEN BEACON 120V AC AMB
  • 48FINA-N5-25WH EDW FLASH HALOGEN BEACON 120V AC AMB

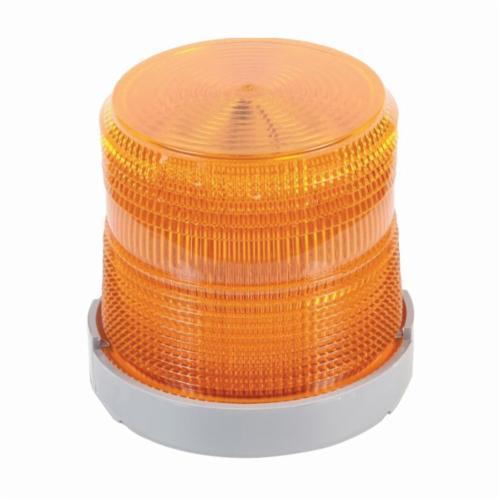

Description: Edwards Signaling™ Flashing Beacon, Weatherproof, Series: 48FIN, 120 V AC, 0.2 A, 4-9/32 in Dia, Halogen Lamp, Amber Lens, 65 fpm Flash Rate, 25000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, ABS Base/Polycarbonate Dome Housing, 4-7/32 in H

Manufacturer PN: 48FINA-N5-25WH

UPC:  78264025486

Kendall Electric Inc PN: 2349624

Invoice Description:

48FINA-N5-25WH EDW FLASH HALOGEN BEACON 120V AC AMB


SPEC SHEET

How Can We Make This Page Better?

Edwards Signaling™ 48FINA-N5-25WH Weatherproof Flashing Beacon, 120 V AC, Halogen Lamp, 4-9/32 in Dia, Panel Mount, Amber Lens

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Edwards 48 Series AdaptaBeacon® flashing lights incorporate a unique double fresnel lens that has been optically engineered to maximize brilliance. This is accomplished with a series of complementing fresnels that cause the dome to "fill" when the light is operating. Beam distance is also increased with fresnel lenses. The incandescent lights are available in six colors: red, amber, blue, green, magenta and clear.
Edwards Signaling™ Flashing Beacon, Weatherproof, Series: 48FIN, 120 V AC, 0.2 A, 4-9/32 in Dia, Halogen Lamp, Amber Lens, 65 fpm Flash Rate, 25000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, ABS Base/Polycarbonate Dome Housing, 4-7/32 in H

Specifications

 Amperage Rating 0.2 A
 Application Indoor/Outdoor Applications
 Average Life 25000 hr
 Brand Name Edwards Signaling™
 Dimensions 4-7/32 in H
 Flash Rate 65 fpm
 Housing Material ABS Base/Polycarbonate Dome
 Lamp Type Halogen
 Lens Color Amber
 Manufacturer Part Number 48FINA-N5-25WH
 Mounting Type Panel
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 48FINA-N5-25WH ; 48FINAN525WH ; 782640254868 ; 78264025486 ; 00782640254868
 Series 48FIN
 Standards/Approvals UL 1638|UL/cUL Listed|ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Type Weatherproof
 Voltage Rating 120 V AC

Features

▪ For outdoor use, lens should face up
▪ Weatherproof
▪ Snap-on high impact polycarbonate/ABS base, shatter resistant polycarbonate lens
