Milwaukee Tool
48-22-5107 MILWAUKE TORPEDO LEVEL

Mouse over image to zoom, click to enlarge

  • 48-22-5107 MILWAUKE TORPEDO LEVEL
  • 48-22-5107 MILWAUKE TORPEDO LEVEL
  • 48-22-5107 MILWAUKE TORPEDO LEVEL
  • 48-22-5107 MILWAUKE TORPEDO LEVEL
  • 48-22-5107 MILWAUKE TORPEDO LEVEL

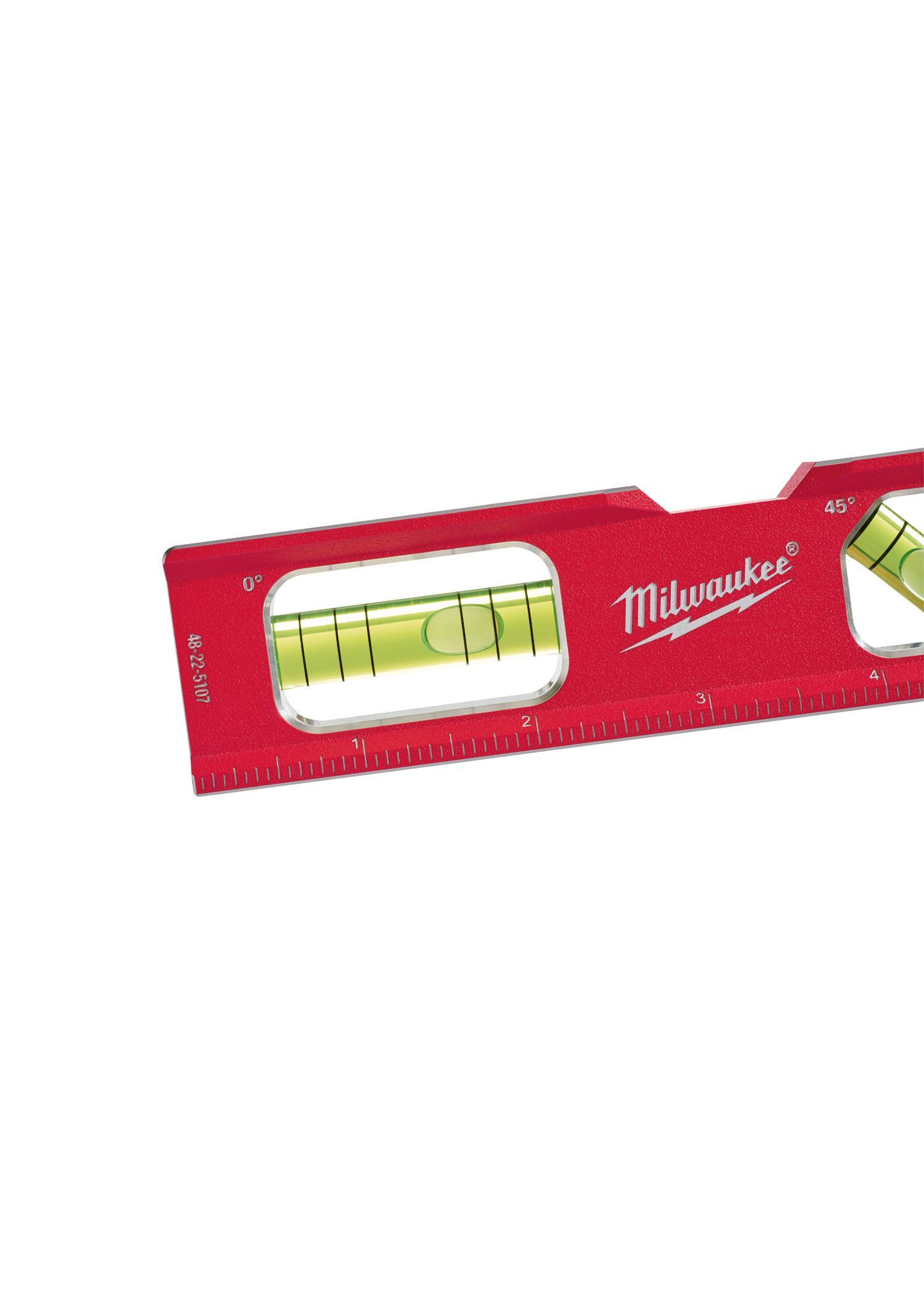

Description: Milwaukee® Torpedo Level, Billet Compact, 0.029 in Accuracy, 7 in Length, 1.44 in Width, 3 Vials, Vial Positions: (1) Level/(1) 45 deg/(1) Plumb, Acrylic Vial, Block Vial, 2 Magnets, Rare Earth Mounting, Aluminum/Polymer, Red

Manufacturer PN: 48-22-5107

UPC:  04524247861

Kendall Electric Inc PN: 3820430

Invoice Description:

48-22-5107 MILWAUKE TORPEDO LEVEL

▸ See All in Box, I-Beam & Torpedo Levels


How Can We Make This Page Better?

Milwaukee® 48-22-5107 Billet Compact Torpedo Level, 7 in L, 3 Vials, Aluminum/Polymer, (1) Level/(1) 45 deg/(1) Plumb Vial Position, 0.029 in Accuracy

Log In for Pricing and Availability




Description

The Milwaukee billet torpedo level features amplified rare earth magnets for over 2X the holding power of leading competitors. The maximized viewing area ensures that the user can make a fast and accurate readings of 1/8 in. and 1/4 in. per foot in any position. The optimized top and back side pipe grooves make this the optimal tool for working with both small and large diameter pipes. The 48-22-5107 Milwaukee billet level also offers a weld clearance and laser etched ruled edge.
Milwaukee® Torpedo Level, Billet Compact, 0.029 in Accuracy, 7 in Length, 1.44 in Width, 3 Vials, Vial Positions: (1) Level/(1) 45 deg/(1) Plumb, Acrylic Vial, Block Vial, 2 Magnets, Rare Earth Mounting, Aluminum/Polymer, Red

Specifications

 Accuracy 0.029 in
 Brand Name Milwaukee®
 Color Red
 Length 7 in
 Manufacturer Part Number 48-22-5107
 Material Aluminum/Polymer
 Mounting Type Rare Earth
 Number of Magnets 2
 Number of Vials 3
 Type Billet Compact
 Vial Material Acrylic
 Vial Positions (1) Level/(1) 45 deg/(1) Plumb
 Vial Type Block
 Width 1.44 in

Features

▪ Maximized viewing area allows for quickly setting and identifying pitch in 1/8 in and 1/4 in/ft
▪ Top and back side precision milled v-groove working surfaces give a stable hold to large or small diameter pipe
▪ Laser etched ruled edge allows for quick accurate measurements
▪ Weld clearance gap allows leveling between weld lines
▪ Billet aluminum frame to hold up to harsh jobsite conditions
▪ Compact design for working in tight spaces
▪ Amplified rare earth magnets - 2X holding power on metal jobsite material
