Milwaukee Tool
48-20-5412 MILWAUKE SDS-MAX 1PC CORE2-5/8"X11-3/8

Mouse over image to zoom, click to enlarge

  • 48-20-5412 MILWAUKE SDS-MAX 1PC CORE2-5/8"X11-3/8
  • 48-20-5412 MILWAUKE SDS-MAX 1PC CORE2-5/8"X11-3/8

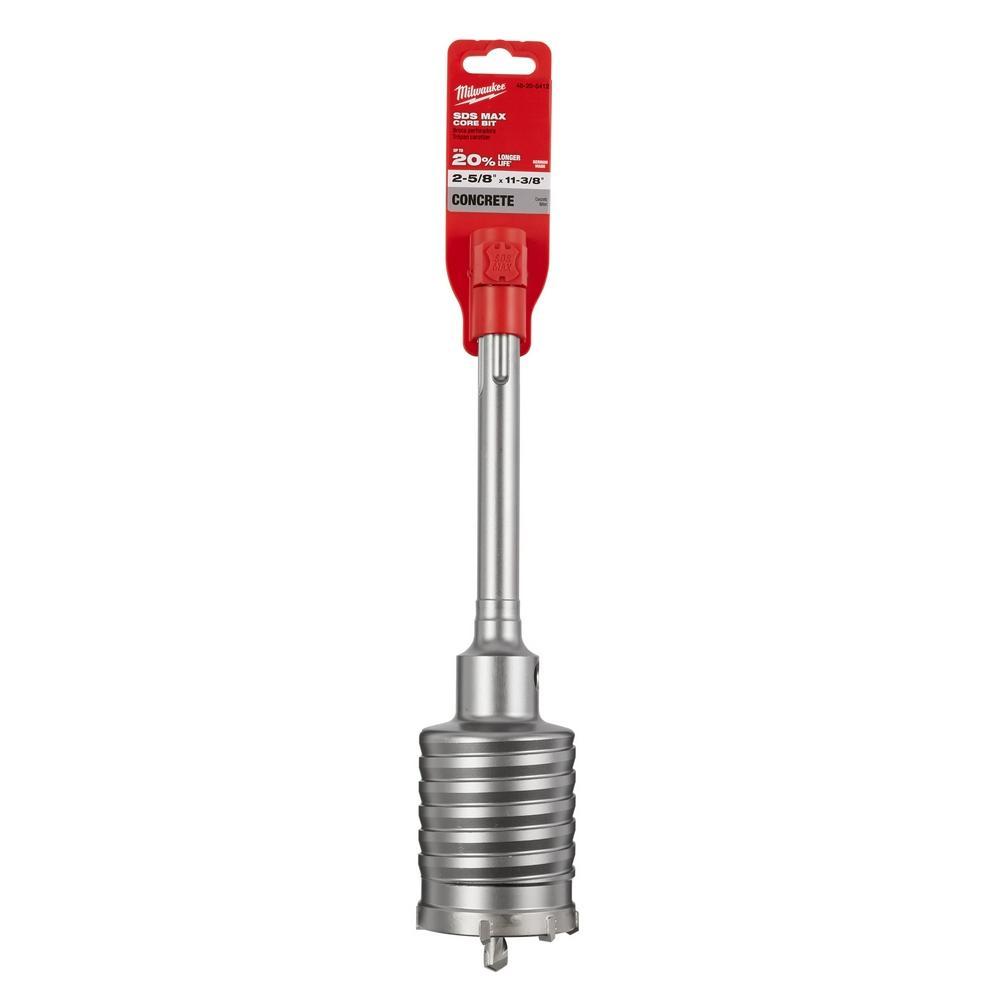

Description: Milwaukee® Core Bit, 1-Piece, 2-5/8 in Drill - Fraction, 2.625 in Drill - Decimal Inch, 11-3/8 in Overall Length, 3 in Cutting Depth, 45/64 in Shank, SDS Max® Shank, Carbide Cutting Edge, Silver

Manufacturer PN: 48-20-5412

UPC:  04524231554

Kendall Electric Inc PN: 4177832

Invoice Description:

48-20-5412 MILWAUKE SDS-MAX 1PC CORE2-5/8"X11-3/8

▸ See All in Core Drills


How Can We Make This Page Better?

Milwaukee® 48-20-5412 1-Piece Core Bit, 2-5/8 in Drill - Fraction, 2.625 in Drill - Decimal Inch

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Milwaukee’s one piece Carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a Kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove centering bit from the one piece core bit. The one piece core bits are available in SDS Max or spline shanks. They come in a variety of diameters ranging from 1-1/2 in. to 6 in. with overall lengths of 11-3/8 in. or 22 in. and a drilling depth of 3 in.. the asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The one piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.
Milwaukee® Core Bit, 1-Piece, 2-5/8 in Drill - Fraction, 2.625 in Drill - Decimal Inch, 11-3/8 in Overall Length, 3 in Cutting Depth, 45/64 in Shank, SDS Max® Shank, Carbide Cutting Edge, Silver

Specifications

 Brand Name Milwaukee
 Color Silver
 Cutting Depth 3 in
 Cutting Edge Material Carbide
 Drill Size Decimal Inch 2.625 in
 Drill Size Fraction 2-5/8 in
 Includes (1) SDS-Max Core Bit
 Manufacturer Part Number 48-20-5412
 Overall Length 11-3/8 in
 PART NUMBER KEYWORDS 48-20-5412 ; 48205412 ; 13925493 ; 045242315543 ; 45242315543 ; 04524231554 ; 00045242315543
 Shank Size 45/64 in
 Shank Type SDS Max®
 Type 1-Piece

Features

▪ Asymmetrical and Alternating Teeth for Faster Material Pulverization
▪ Optional - Centering Tip to Reduce Bit Walking and Create Exact Spot Drilling
▪ Thick-Wall Core Body for Durability Even in Large Hammers
▪ Remove centering bit with drift key 48-20-5497
