Milwaukee Tool

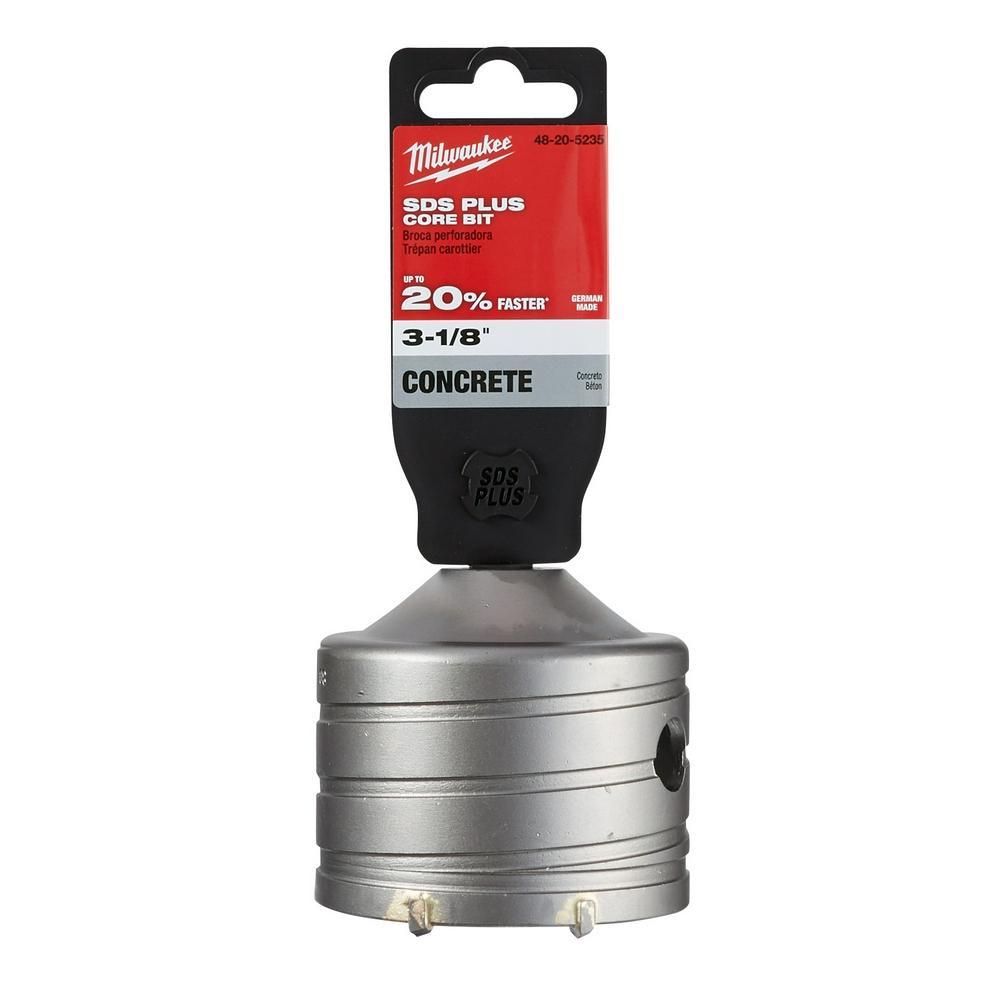

48-20-5235 MILWAUKE SDS+ CORE

Mouse over image to zoom, click to enlarge

  • 48-20-5235 MILWAUKE SDS+ CORE
  • 48-20-5235 MILWAUKE SDS+ CORE

Description: Milwaukee® Core Bit, 3-1/8 in Drill - Fraction, 2 in Overall Length, 2 in Cutting Depth, SDS Plus® Shank, Centering Point, Carbide Cutting Edge, Steel, Applicable Materials: Block, Brick and Concrete

Manufacturer PN: 48-20-5235

UPC:  04524248639

Kendall Electric Inc PN: 4589814

Invoice Description:

48-20-5235 MILWAUKE SDS+ CORE


SPEC SHEET

▸ See All in Core Drills


How Can We Make This Page Better?

Milwaukee® 48-20-5235 Core Bit, 3-1/8 in Drill - Fraction, Steel

Log In for Pricing and Availability




Description

Milwaukee® SDS Plus masonry core bits are ideal for drilling large holes in brick, block, and concrete with SDS Plus rotary hammers. Asymmetrical Carbide teeth break up material more effectively resulting in up to 20% faster drilling speeds. Centering bits allow for easy alignment of the hole and precise spot drilling. The versatile two-piece design allows users to drill with several different core bit sizes using one adapter. The spiral core body design minimizes friction in the hole and aids in dust removal during the application. Core bits cut with the outer edge only, therefore the operator must remove the inner core continue drilling for holes deeper than 2 in.
Milwaukee® Core Bit, 3-1/8 in Drill - Fraction, 2 in Overall Length, 2 in Cutting Depth, SDS Plus® Shank, Centering Point, Carbide Cutting Edge, Steel, Applicable Materials: Block, Brick and Concrete

Specifications

 Applicable Materials Block, Brick and Concrete
 Application For drilling large holes
 Brand Name Milwaukee
 Cutting Depth 2 in
 Cutting Edge Material Carbide
 Drill Size Fraction 3-1/8 in
 Includes (1) SDS+ CORE 3-1/8"X2"
 Manufacturer Part Number 48-20-5235
 Material Steel
 Overall Length 2 in
 PART NUMBER KEYWORDS 48-20-5235 ; 48205235 ; 14195904 ; 045242486397 ; 45242486397 ; 04524248639 ; 00045242486397
 Point Type Centering
 Shank Type SDS Plus®

Features

▪ Drilling Depth of 2 in Adapter and centering bit sold separately (48-20-3582)
▪ Spiral core body design to minimize friction and increases dust removal
▪ Two-piece design for maximum versatility
