Leviton

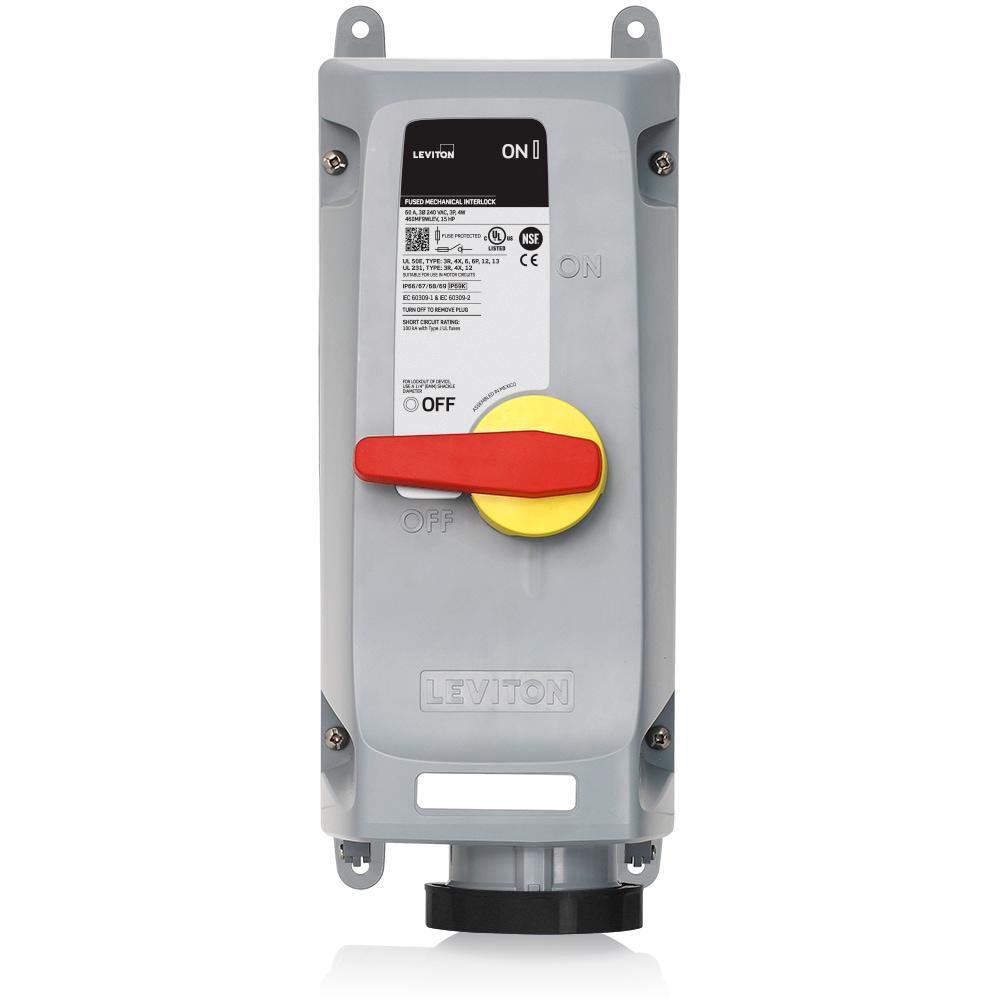

460MF5WLEV LEVITON 60A MECHANICAL INTERLOCK - BLACK

Mouse over image to zoom, click to enlarge

Description: Leviton® Pin and Sleeve Mechanical Interlock, Fused Watertight, Series: LEV, 600 V AC, 60 A, 50 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, PBT/Polycarbonate, Black, 17.37 in H x 9.25 in W x 9.4 in D Dimensions

Manufacturer PN: 460MF5WLEV

UPC:  07847725154

Kendall Electric Inc PN: 4524911

Invoice Description:

460MF5WLEV LEVITON 60A MECHANICAL INTERLOCK - BLACK


SPEC SHEET

How Can We Make This Page Better?

Leviton® 460MF5WLEV Fused Watertight Pin and Sleeve Mechanical Interlock, 600 V AC, 60 A, 3 Poles, 4 Wires

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® Pin and Sleeve Mechanical Interlock, Fused Watertight, Series: LEV, 600 V AC, 60 A, 50 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, PBT/Polycarbonate, Black, 17.37 in H x 9.25 in W x 9.4 in D Dimensions

Specifications

 Amperage Rating 60 A
 Application Food and Beverage Facilities, Washdown and Outdoor Applications
 Brand Name Leviton®
 Color Black
 Dimensions 17.37 in H x 9.25 in W x 9.4 in D
 Enclosure NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K
 Manufacturer Part Number 460MF5WLEV
 Material PBT/Polycarbonate
 Mounting Threaded
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS 460MF5WLEV
 Power Rating 50 hp
 Series LEV
 Standards/Approvals CE Certified|CSA C22.2 No. 94.1-07|IEC 60309-1|IEC 60309-2|IEC 60309-4|UL 231|UL 1682|UL 1686|UL 50|UL 50E|UL 60947-4-1|UL 60947-1|UL 746|UL 94 V-0 Flammability Rating
 Type Fused Watertight
 Voltage Rating 600 V AC

Features

▪ Designed to simplify your installation, endure the harshest environments and improve safety and productivity
▪ Bottom hinged cover design makes installation and maintenance quicker and easier
▪ Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
▪ NSF certified sanitary design trusted for use in food and beverage facilities
