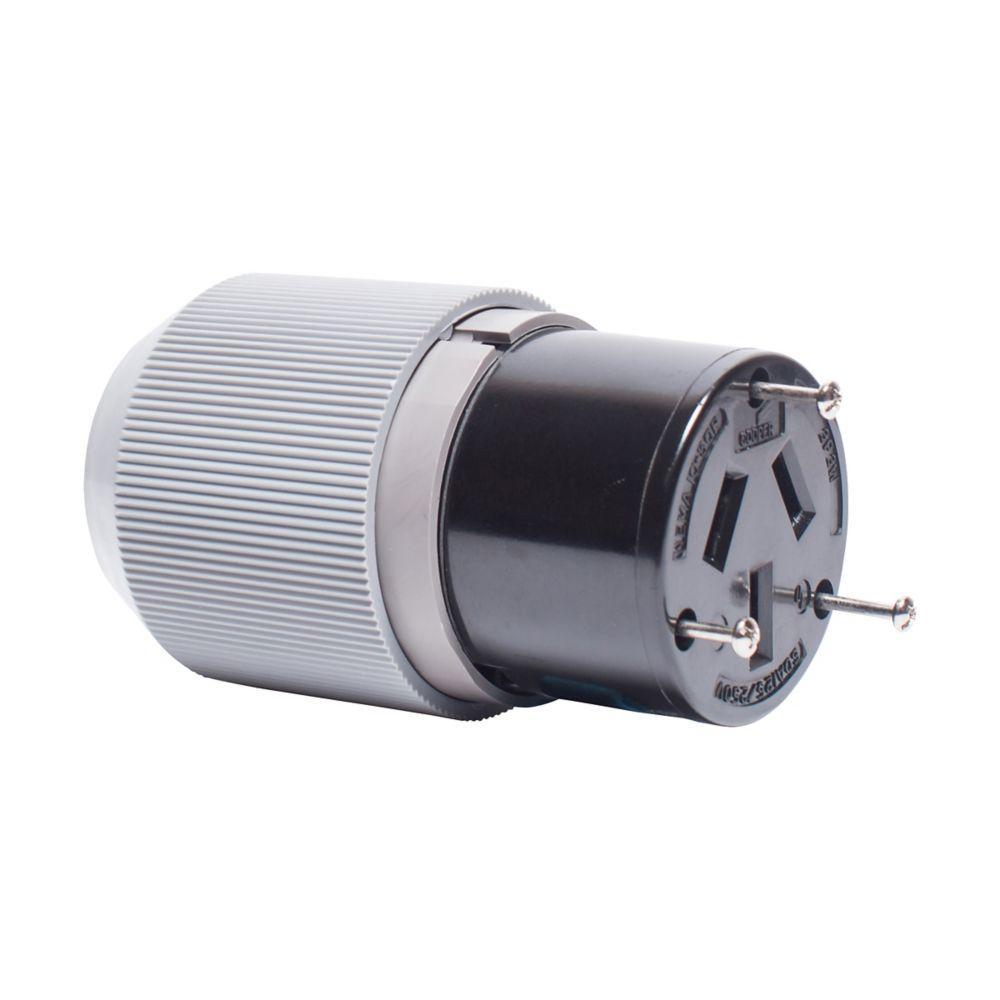

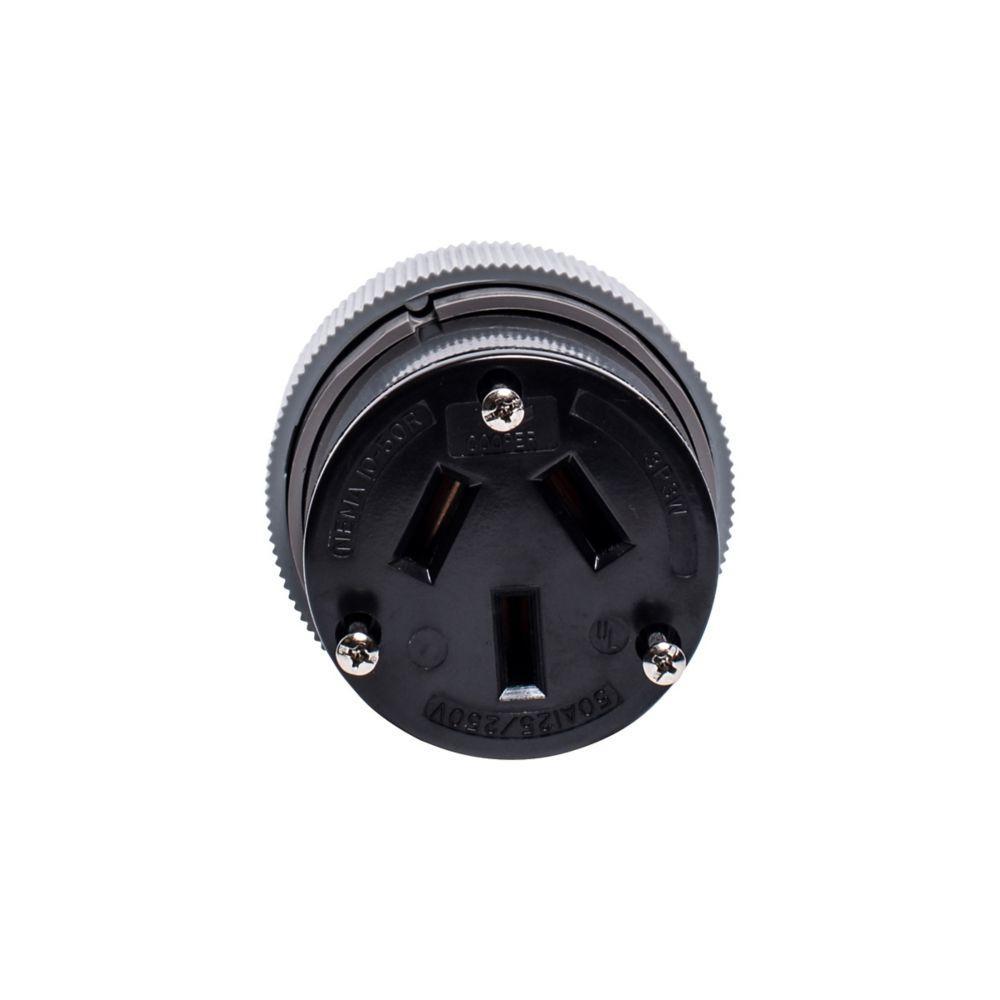

4526N CWD RANGE/DRYER CONN.3P3W 50A 125/250V 10-50R AUTOGRIP .425-1.30"

Mouse over image to zoom, click to enlarge

  • 4526N CWD RANGE/DRYER CONN.3P3W 50A 125/250V 10-50R AUTOGRIP .425-1.30"
  • 4526N CWD RANGE/DRYER CONN.3P3W 50A 125/250V 10-50R AUTOGRIP .425-1.30"
  • 4526N CWD RANGE/DRYER CONN.3P3W 50A 125/250V 10-50R AUTOGRIP .425-1.30"

Description: EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 125/250 V AC, 50 A, 3 Pole, 3 Wires, NEMA 10-50R NEMA Rating, Commercial/Industrial Grade, 0.425 to 1.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic, Black/Gray, 3.12 in Dia x 5.19 in H Dimensions

Manufacturer PN: 4526N

UPC:  04089302308

Kendall Electric Inc PN: 18723

Invoice Description:

4526N CWD RANGE/DRYER CONN.3P3W 50A 125/250V 10-50R AUTOGRIP .425-1.30"


SPEC SHEET

How Can We Make This Page Better?

EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices 4526N Straight Blade Connector, 125/250 V AC, 50 A, 3 Poles, 3 Wires, Black/Gray

Log In for Pricing and Availability




Description

Commercial and industrial power plugs and connectors 50 A, 125/250 VAC NEMA 10-50 3-pole/3-wire. heavy duty design and construction make Arrow Hart™ power devices ideal for any high amperage industrial or commercial power connectivity application.
EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 125/250 V AC, 50 A, 3 Pole, 3 Wires, NEMA 10-50R NEMA Rating, Commercial/Industrial Grade, 0.425 to 1.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic, Black/Gray, 3.12 in Dia x 5.19 in H Dimensions

Specifications

 Amperage Rating 50 A
 Brand Name EATON
 Color Black/Gray
 Cord Diameter 0.425 to 1.31 in
 Dimensions 3.12 in Dia x 5.19 in H
 Grade Commercial/Industrial
 Manufacturer Part Number 4526N
 Material Thermoplastic
 NEMA Rating NEMA 10-50R
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS 4526N ; 8201392 ; 040893023083 ; 40893023083 ; 04089302308 ; 00040893023083
 Standards/Approvals cULus Listed
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Voltage Rating 125/250 V AC

Features

▪ Rugged high-strength construction
▪ Unique internal clamp design secures cord during assembly, reducing installation time
▪ Nylon dead front construction resists ingress from contaminants
▪ Tapered cord grip cover reduces cord snags
