Milwaukee Tool

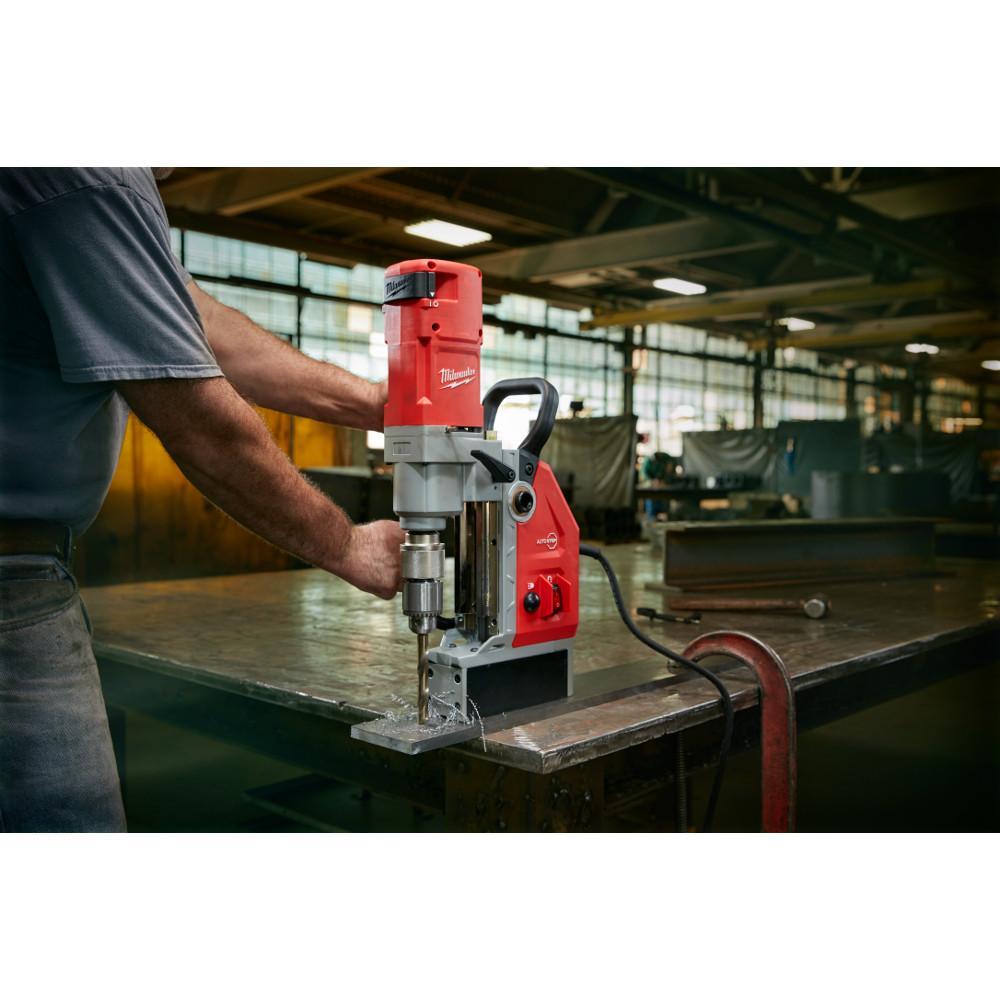

4272-21 MILWAUKE COMPACT MAG DRILL W/CASE

Mouse over image to zoom, click to enlarge

  • 4272-21 MILWAUKE COMPACT MAG DRILL W/CASE
  • 4272-21 MILWAUKE COMPACT MAG DRILL W/CASE

Description: Milwaukee® Electromagnetic Drill Kit, Compact, 3/4 in Chuck, 5-3/4 in Spindle Travel, 475/730 rpm Spindle Speed, 2 Spindle Speed, 600 lb Drill Point, 1-1/4 in Drill to Center From Base, 12-1/4 in Overall Height, 2.3 hp, 120 V AC, 13 A, 11-1/4 in L x 7-1/2 in W Dimensions

Manufacturer PN: 4272-21

UPC:  04524234647

Kendall Electric Inc PN: 3741584

Invoice Description:

4272-21 MILWAUKE COMPACT MAG DRILL W/CASE

▸ See All in Electric Drills


How Can We Make This Page Better?

Milwaukee® 4272-21 Compact Electromagnetic Drill Kit, 3/4 in Chuck, 2.3 hp, 1-1/4 in Drill to Center From Base, 475/730 rpm Spindle Speed, 120 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Milwaukee 1-5/8 in. electromagnetic drill will deliver faster set-up, cutting and drilling. It’s 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM.
Milwaukee® Electromagnetic Drill Kit, Compact, 3/4 in Chuck, 5-3/4 in Spindle Travel, 475/730 rpm Spindle Speed, 2 Spindle Speed, 600 lb Drill Point, 1-1/4 in Drill to Center From Base, 12-1/4 in Overall Height, 2.3 hp, 120 V AC, 13 A, 11-1/4 in L x 7-1/2 in W Dimensions

Specifications

 Amperage Rating 13 A
 Brand Name Milwaukee®
 Chuck Size 3/4 in
 Dimensions 11-1/4 in L x 7-1/2 in W
 Drill Point Pressure 600 lb
 Drill To Center From Base 1-1/4 in
 Horsepower 2.3 hp
 Includes (2) 1 in Retractable Pilot Pin, 3/4 in Weldon to 1/2 in Chuck Adapter, Carrying Case, Chuck Key, Lubrication Spray Bottle and Safety Strap
 Manufacturer Part Number 4272-21
 Number Of Spindle Speeds 2
 PART NUMBER KEYWORDS 4272-21 ; 427221 ; 13925239 ; 045242346479 ; 45242346479 ; 04524234647 ; 00045242346479
 Spindle Speed 475/730 rpm
 Spindle Travel 5-3/4 in
 Standards/Approvals ARRA Compliant|Buy American Act Compliant
 Type Compact
 Voltage Rating 120 V AC

Features

▪ 3/4 in Weldon Quick Change Arbor
▪ Auto-Stop Lift-Off Detection
▪ Optimized Cutting and Drilling Speeds
▪ Powerful 13 AMotor
▪ Tool Free Adjustment - Cutter to Twist Bit
▪ Tool Free Feed-Handle LED Light
