Hubbell
520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159

Mouse over image to zoom, click to enlarge

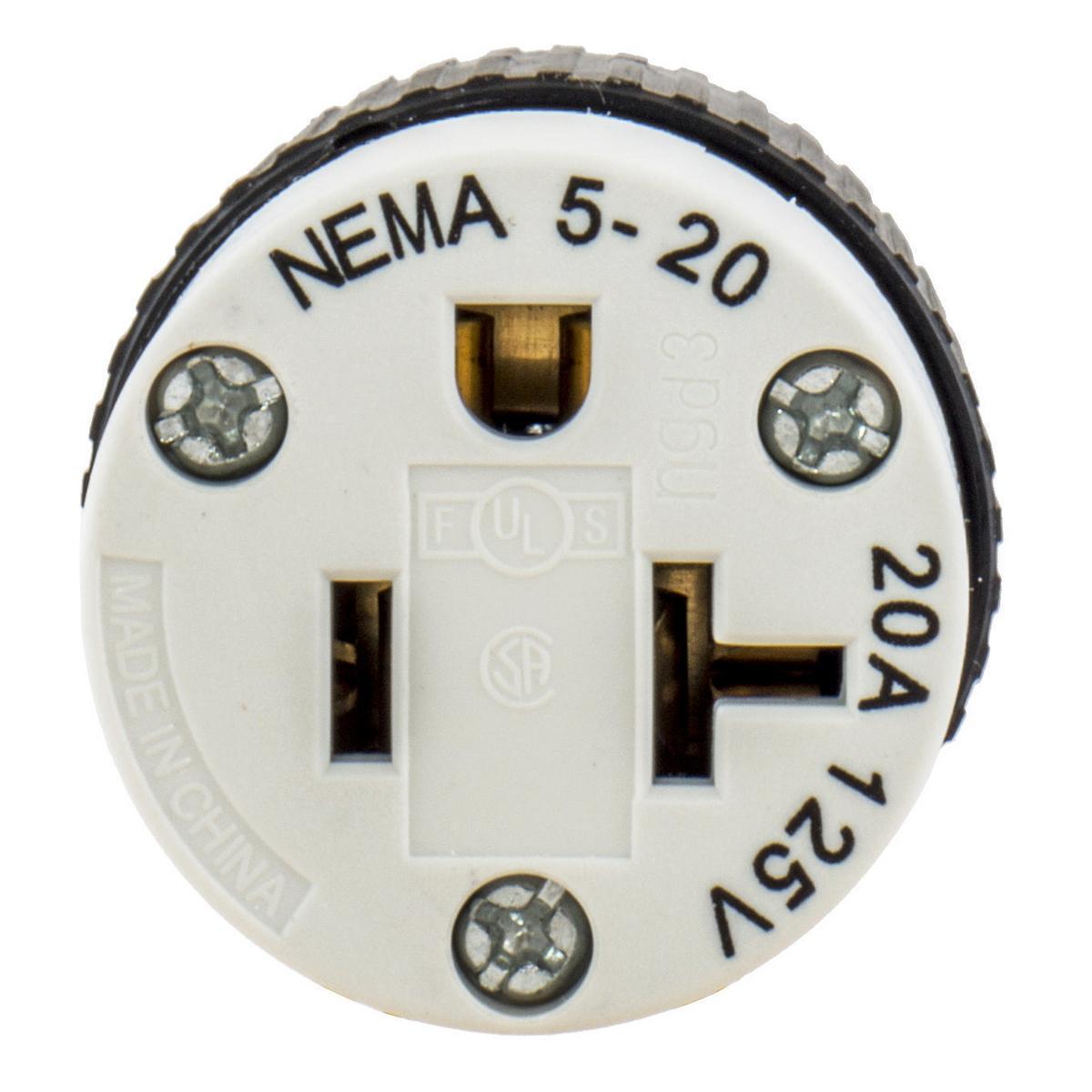

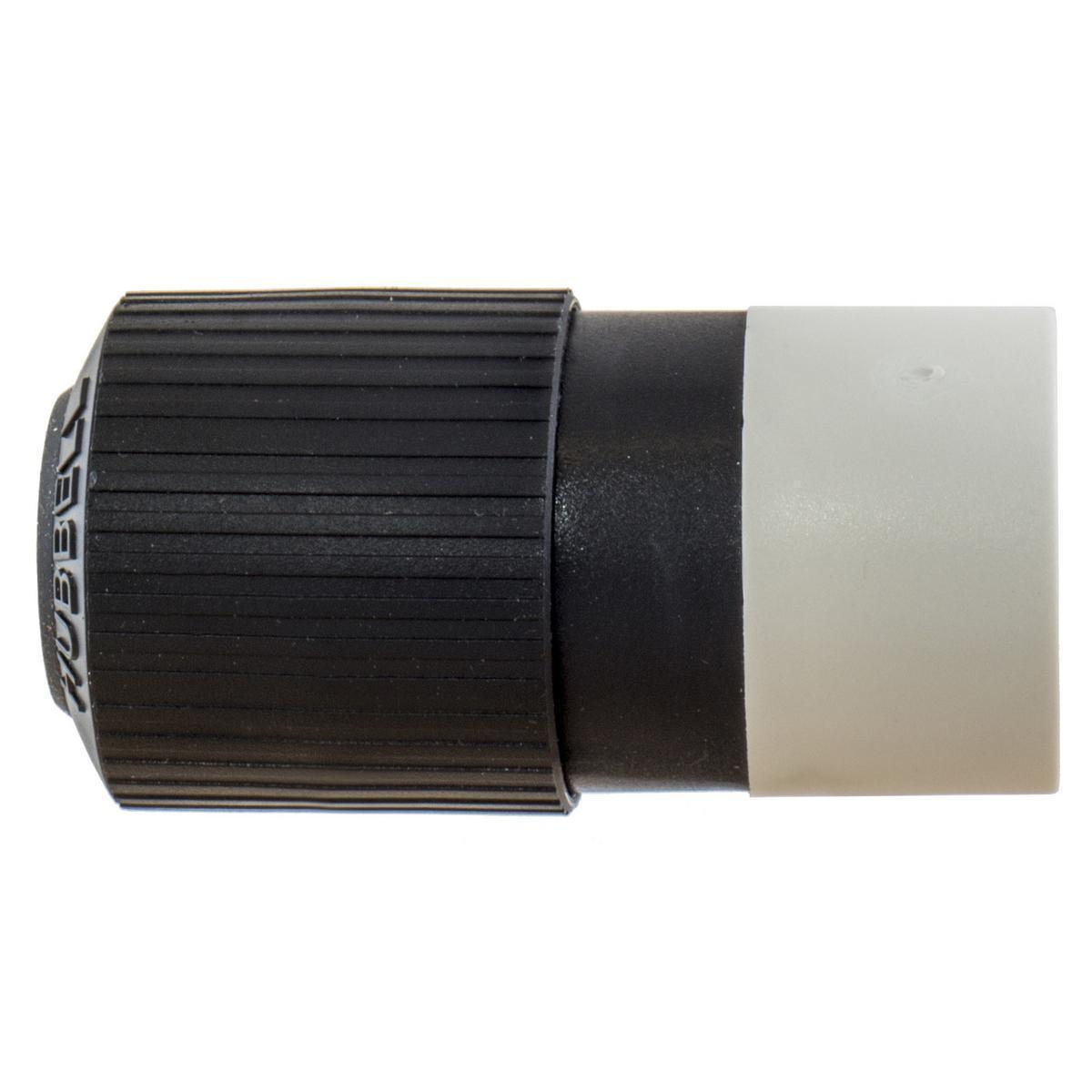

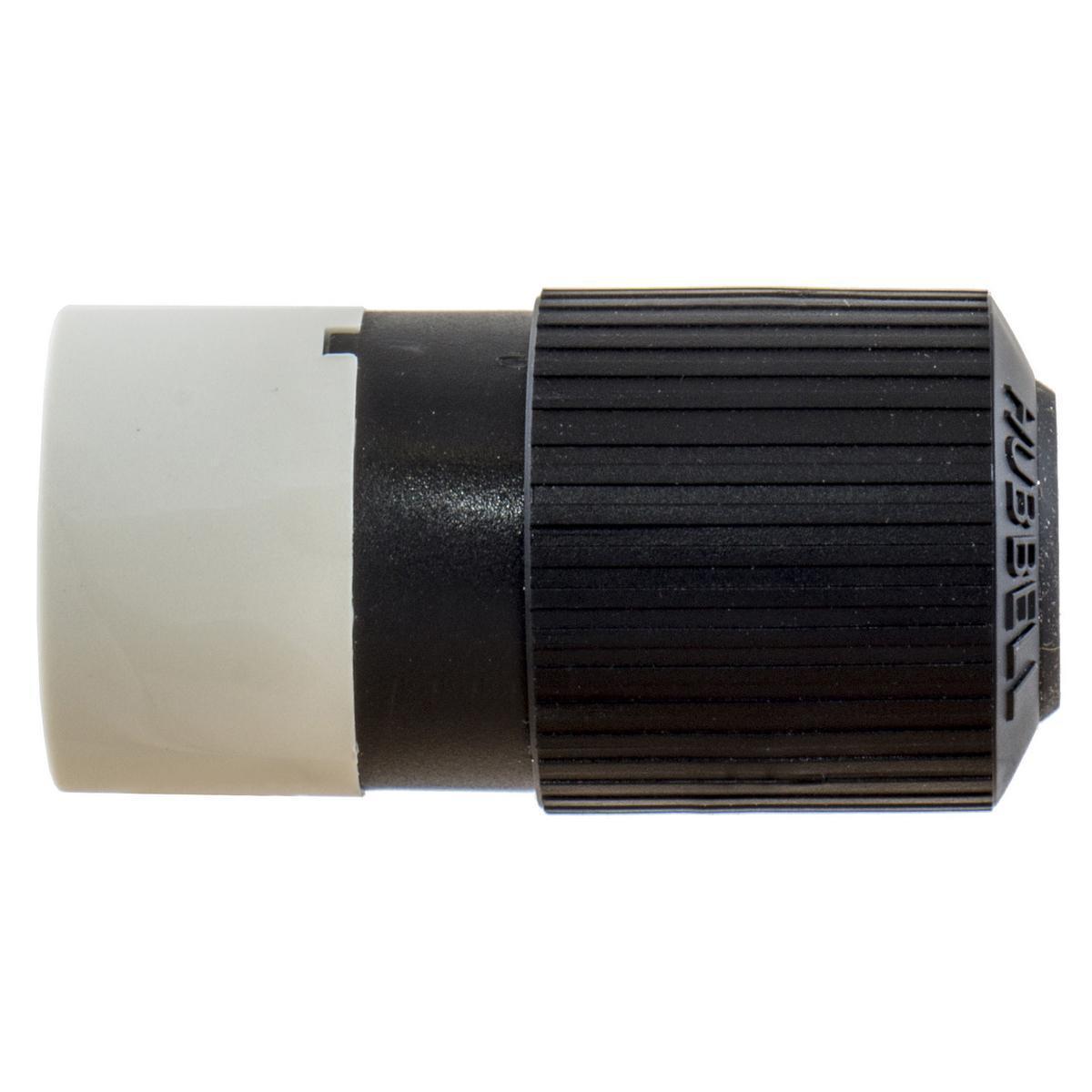

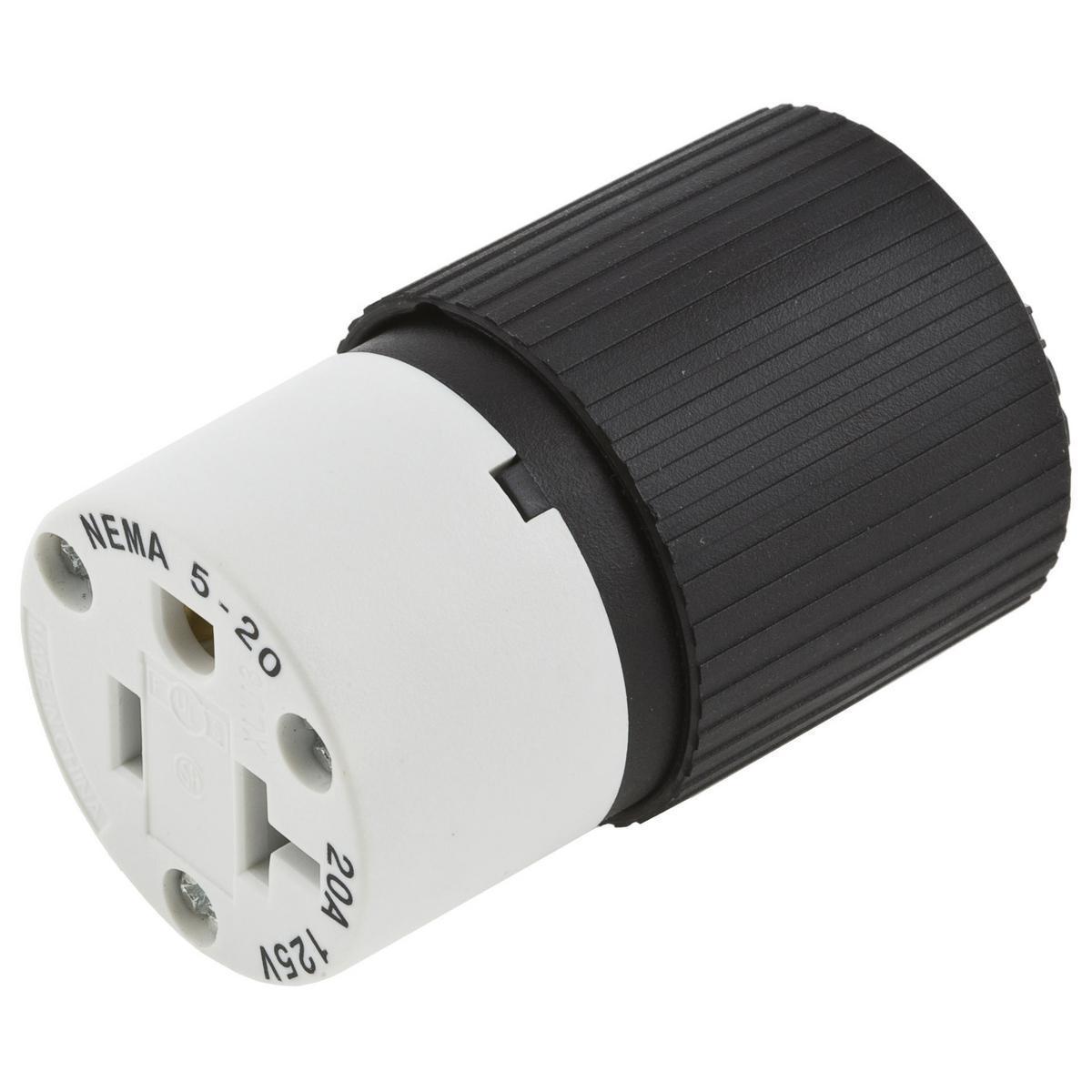

  • 520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159
  • 520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159
  • 520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159
  • 520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159
  • 520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159

Description: Hubbell Wiring Device-Kellems Straight Blade Connector, Straight Body, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Composite, Black/White

Manufacturer PN: 520SC

UPC:  78358533159

Kendall Electric Inc PN: 3290656

Invoice Description:

520SC HUBBELL CONN, 20A 125V, SEL SPEC, 5-20R 78358533159


SPEC SHEET

▸ See All in Straight Blade Connectors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems 520SC Straight Body Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Black/White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems Straight Blade Connector, Straight Body, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R, Commercial/Industrial Grade, 0.3 to 0.655 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Composite, Black/White

Specifications

 Amperage Rating 20 A
 Brand Name Hubbell Premise Wiring
 Color Black/White
 Cord Diameter 0.3 to 0.655 in
 Grade Commercial/Industrial
 Manufacturer Part Number 520SC
 Material Composite
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 520SC ; 8928300 ; 783585331591 ; 78358533159 ; 00783585331591
 Standards/Approvals CSA Certified|Federal Specification|UL Listed|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Threaded
 Type Straight Body
 Voltage Rating 125 V AC

Features

▪ Nylon construction, visible NEMA ratings, insulated body, cord mounted
▪ Indoor dry unless protected by additional means environmental conditions
▪ 75 deg C minimum continuous, -40 deg C without impact, -25 deg C with impact maximum continuous temperature
▪ 14 to 12 AWG conductor range

Resources

 Catalog Page
 Line Drawing
 Line Drawing URL
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
