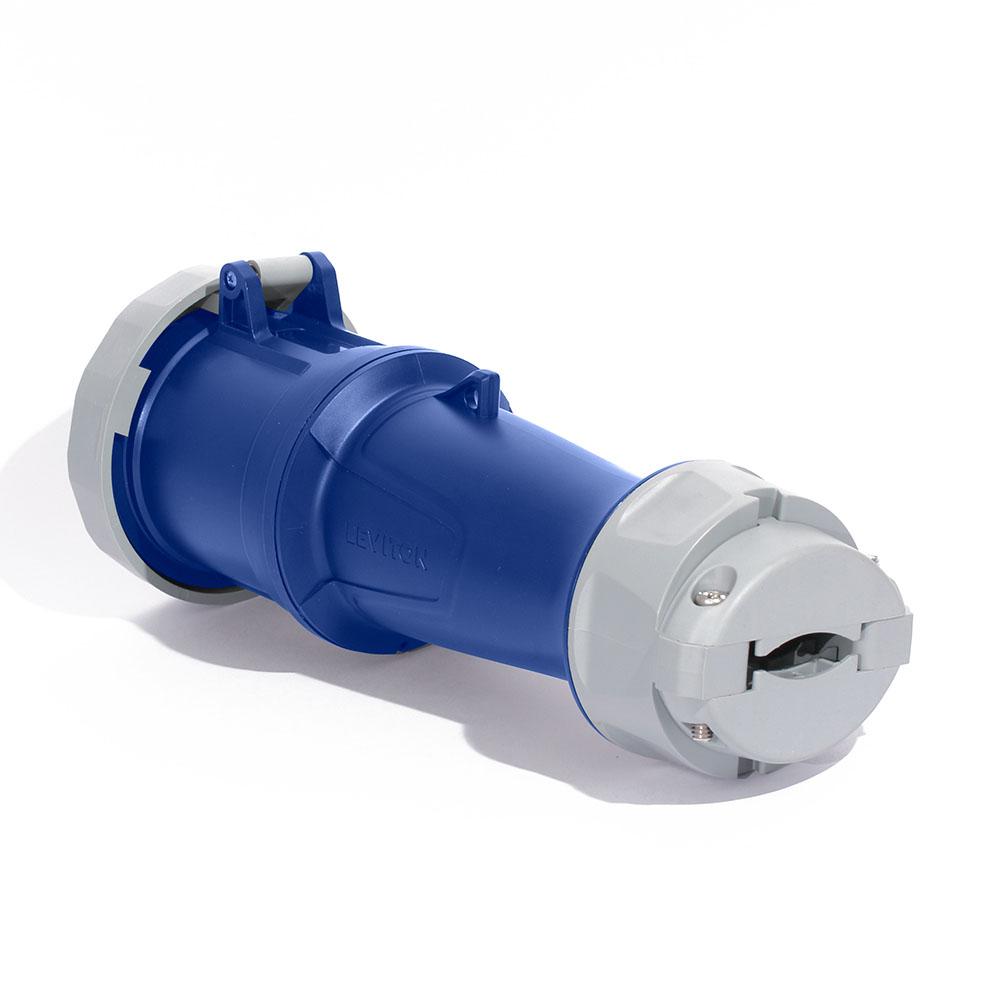

4100C9WLEV LEVITON 100 AMP PIN & SLEEVE CONNECTOR-BLUE

Mouse over image to zoom, click to enlarge

  • 4100C9WLEV LEVITON 100 AMP PIN & SLEEVE CONNECTOR-BLUE
  • 4100C9WLEV LEVITON 100 AMP PIN & SLEEVE CONNECTOR-BLUE
  • 4100C9WLEV LEVITON 100 AMP PIN & SLEEVE CONNECTOR-BLUE

Description: Leviton®, 4100C9WLEV, Sleeve Connector, Watertight, Series: LEV, 250 V AC, 100 A, 7.5 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -35 to 66 deg C, Screw Terminal, Nylon, Blue

Manufacturer PN: 4100C9WLEV

UPC:  07847766568

Kendall Electric Inc PN: 4797968

Invoice Description:

4100C9WLEV LEVITON 100 AMP PIN & SLEEVE CONNECTOR-BLUE


SPEC SHEET

▸ See All in Pin & Sleeve Connectors


How Can We Make This Page Better?

Leviton® 4100C9WLEV LEV Watertight Sleeve Connector, 250 V AC, 100 A, 3 Poles, 4 Wires, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton®, 4100C9WLEV, Sleeve Connector, Watertight, Series: LEV, 250 V AC, 100 A, 7.5 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -35 to 66 deg C, Screw Terminal, Nylon, Blue

Specifications

 Amperage Rating 100 A
 Application For washdown/outdoor applications
 Brand Name Leviton®
 Color Blue
 Enclosure IP66/IP67/IP68/IP69K
 Grade Industrial
 Horsepower 7.5 hp
 Manufacturer Part Number 4100C9WLEV
 Material Nylon
 NEMA Rating NEMA 3R/4X/6P/12
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS 4100C9WLEV
 Series LEV
 Standards/Approvals NOM - ANCE standards|CE certification|CSA C22.2 No 182.1-13|IEC 60309-1/60309-2|UL 1686 C2|UL 1682|NSF 14159-1
 Temperature Rating -35 to 66 deg C
 Terminal Type Screw
 Type Watertight
 Voltage Rating 250 V AC

Features

▪ Improved speed of assembly with threaded housings that have less screws for reduced installation time
▪ Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68

Resources

 Catalog Page
 Product Data Sheet
