  • 40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02
  • 40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02
  • 40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02
  • 40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02
  • 40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02
  • 40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02

Description: Bussmann NH Fuse Link, Size 02 Dual Indicator Low Voltage Lead Free, Series: NHG, 500 V, 40 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 52 mm W

Manufacturer PN: 40NHG02B

UPC:  05171262607

Kendall Electric Inc PN: 3895642

Invoice Description:

40NHG02B BUSSMANN NH FUSE 40A 500V GG/GL SIZE 02


SPEC SHEET

How Can We Make This Page Better?

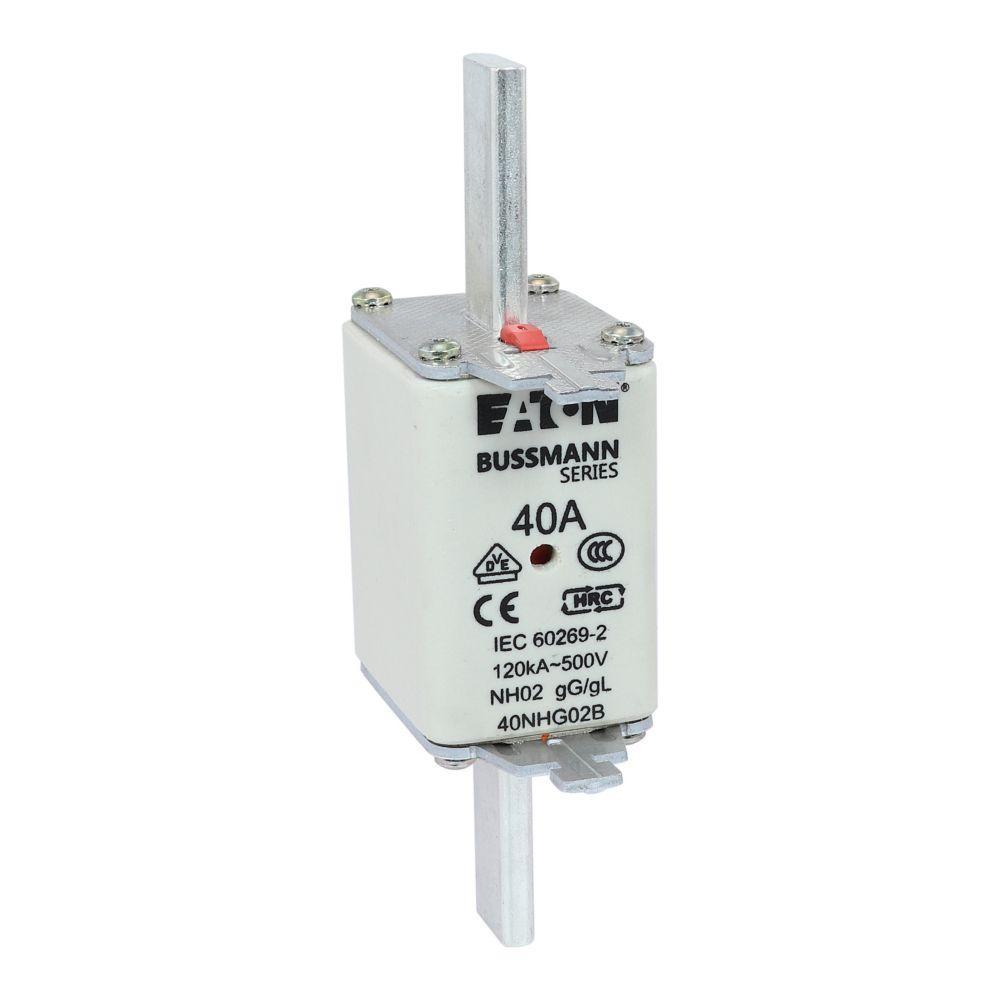

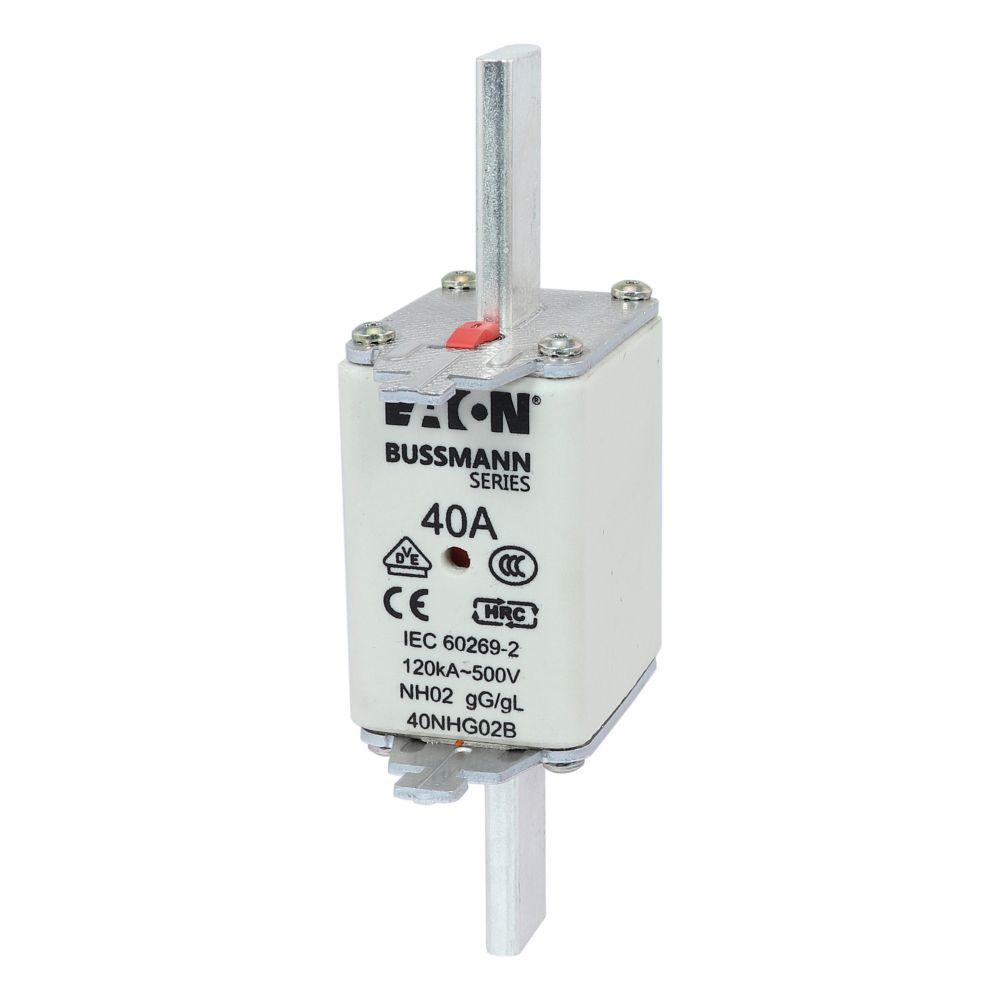

Bussmann 40NHG02B Size 02 Dual Indicator Low Voltage NH Fuse Link With Metal Live Gripping Lugs, 500 V, 40 A, For Use With Class C/gG/gL Fuse, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Size 02 Dual Indicator Low Voltage Lead Free, Series: NHG, 500 V, 40 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 52 mm W

Specifications

 Amperage Rating 40 A
 Application Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
 Brand Name Bussmann
 Dimensions 150 mm L x 52 mm W
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 40NHG02B
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS 40NHG02B ; 10515915 ; 051712626071 ; 51712626071 ; 05171262607 ; 00051712626071 ; 5027590480406
 Rated Breaking Capacity 120 kAIC
 Series NHG
 Standards/Approvals DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Marquage CE,Conformité RoHS,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS
 Suitable For Use With Class C/gG/gL Fuse
 Type Size 02 Dual Indicator Low Voltage
 Video Links
 Voltage Rating 500 V

Features

▪ Voltage conducting metal live gripping lugs
▪ Reliable dual indicator system
▪ Low temperature rise
▪ Globally compliant
▪ Steatite insulator, corrosion resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
▪ Cadmium and lead free
▪ Square body with knife blade contact
