Eaton

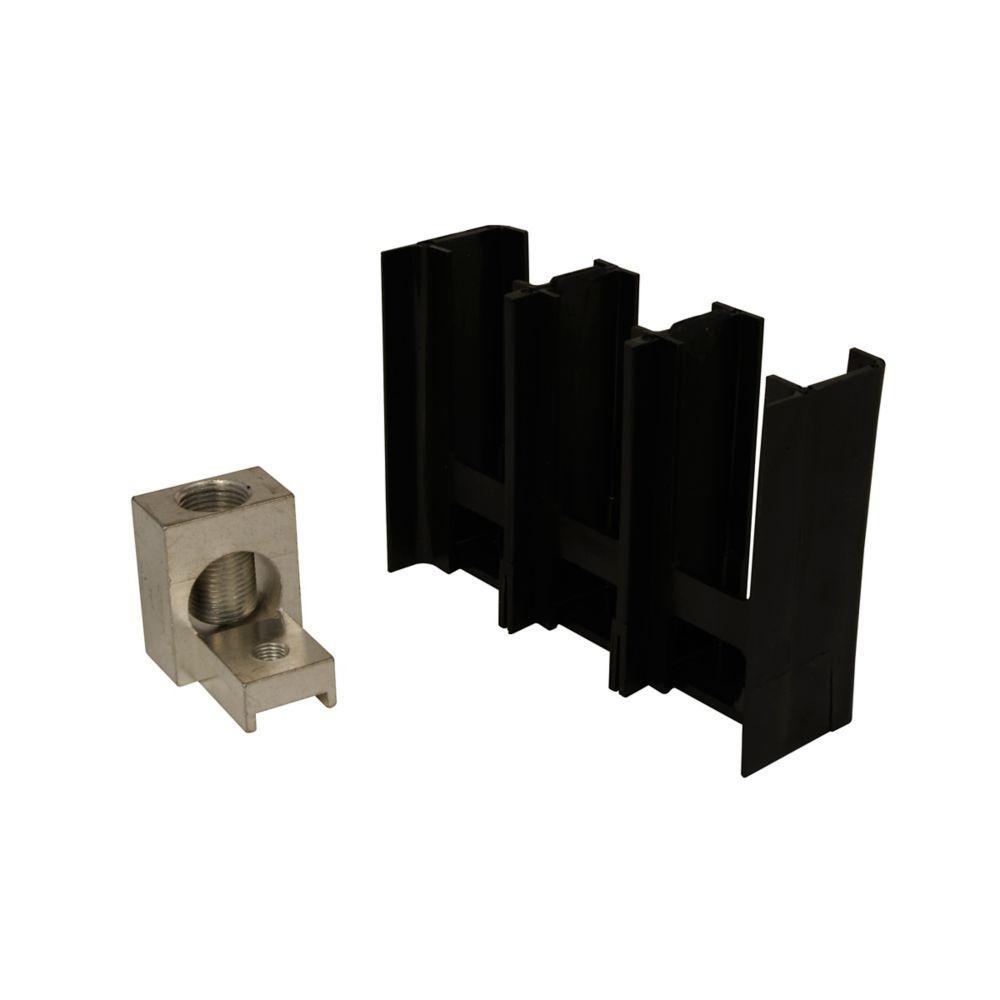

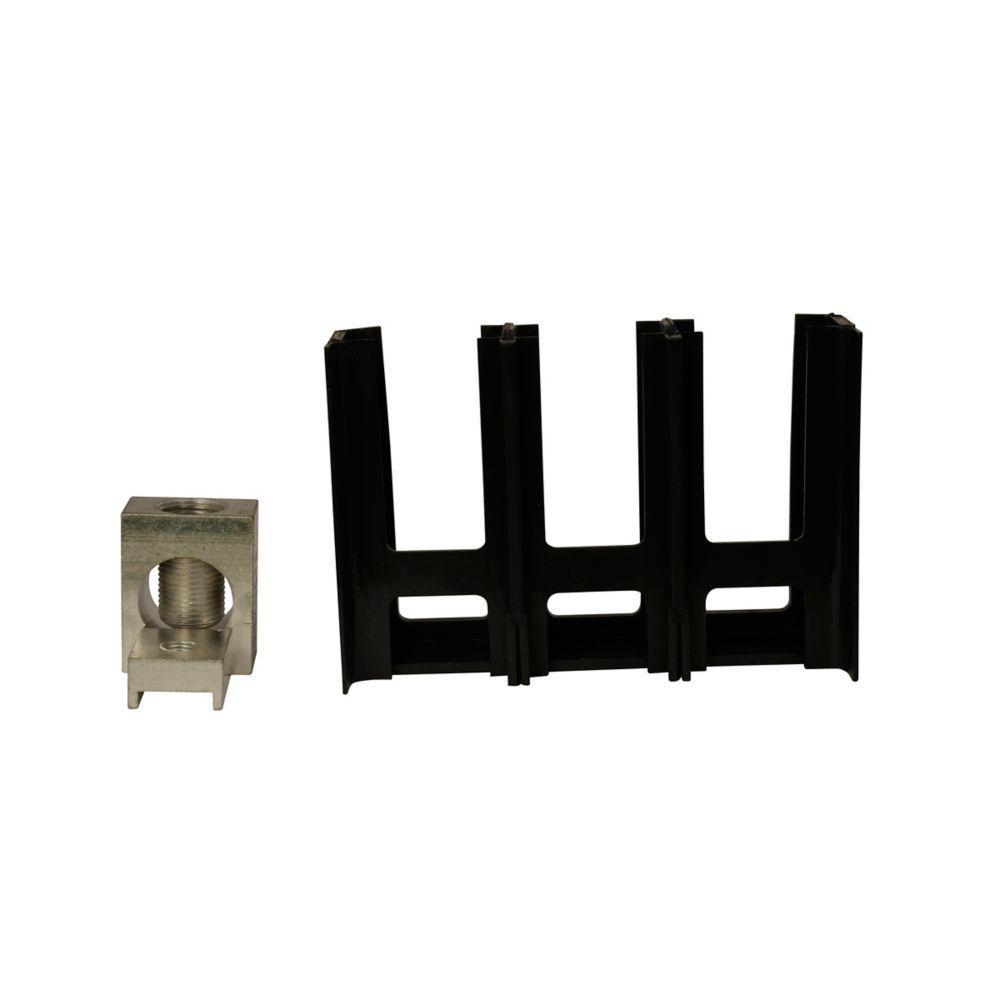

3TA402K CH KD TA402K 3 POLE TERMINAL ASSEMBLY WITH TERMINAL SHEILD

Mouse over image to zoom, click to enlarge

Description: EATON Line and Load Terminal, Pressure, 500 to 750 kcmil Conductor, For Use With: C Series 3-Pole 400 A Molded Case Circuit Breaker, 6.2 in Length, 3.8 in W, 4.6 in Height, Aluminum

Manufacturer PN: 3TA402K

UPC: 78667910679

Kendall Electric Inc PN: 2017939

Invoice Description:

3TA402K CH KD TA402K 3 POLE TERMINAL ASSEMBLY WITH TERMINAL SHEILD

SPEC SHEET

▸ See All in Breaker Terminals

How Can We Make This Page Better?

EATON 3TA402K Pressure Line and Load Terminal, 500 to 750 kcmil, For Use With C Series 3-Pole 400 A Molded Case Circuit Breaker

Note: Lead times are estimates only

Description Specifications Resources

Description

EATON Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

EATON Line and Load Terminal, Pressure, 500 to 750 kcmil Conductor, For Use With: C Series 3-Pole 400 A Molded Case Circuit Breaker, 6.2 in Length, 3.8 in W, 4.6 in Height, Aluminum

Specifications

Application	Commercial, Institutional Buildings, Structures and Circuit Protection Applications
Brand Name	EATON
Conductor Range	500 to 750 kcmil
Height	4.6 in
Length	6.2 in
Manufacturer Part Number	3TA402K
Material	Aluminum
PART NUMBER KEYWORDS	3TA402K ; 7409505 ; 786679106792 ; 78667910679 ; 00786679106792
Standards/Approvals	UL Listed,Contact Manufacturer
Suitable For Use With	C Series 3-Pole 400 A Molded Case Circuit Breaker
Type	Pressure
Video Links
Width	3.8 in
