Eaton

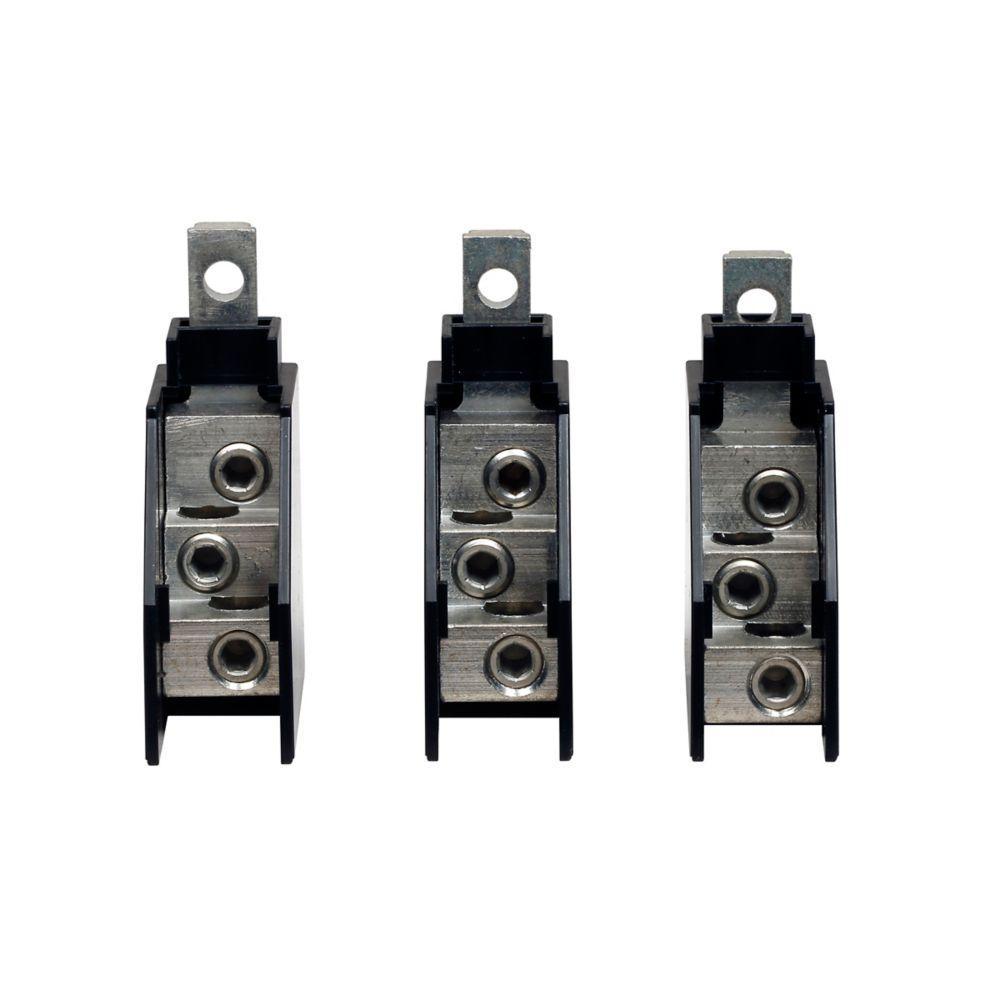

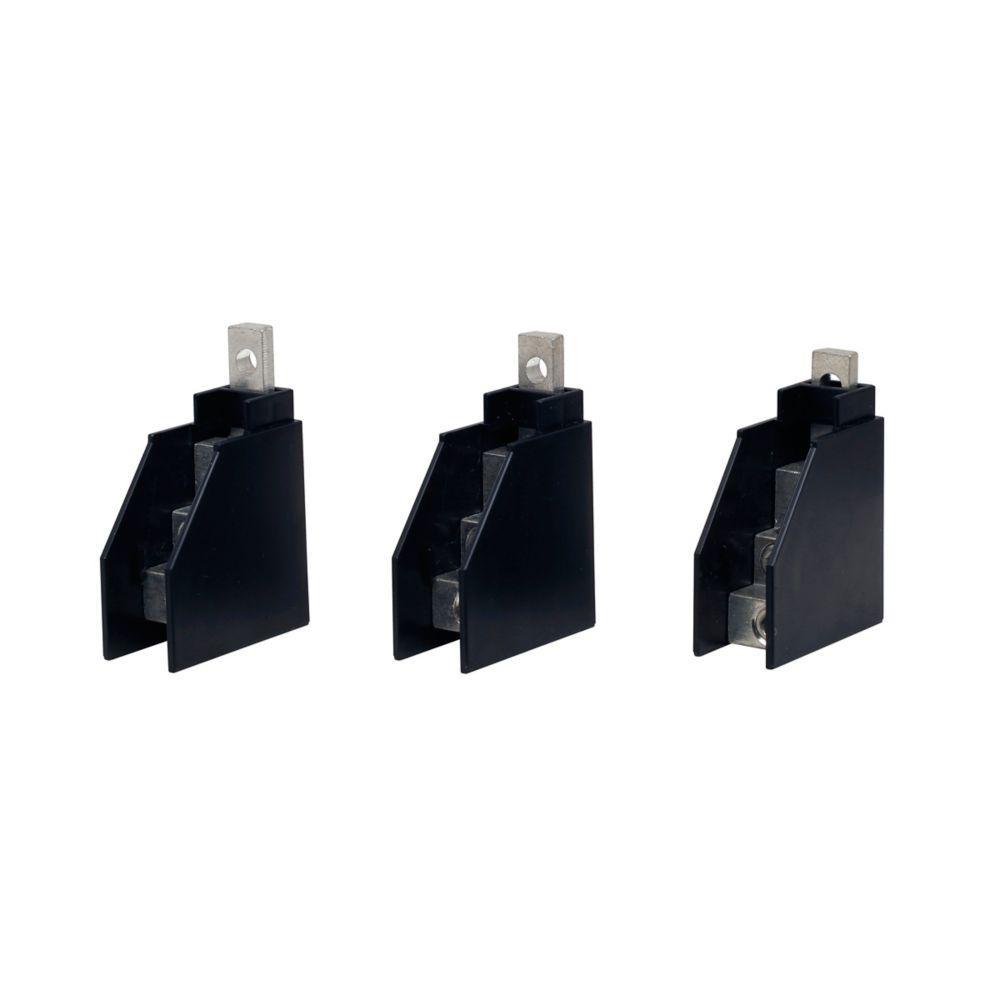

3TA100G6K CH Multiwire Connectors

Mouse over image to zoom, click to enlarge

  • 3TA100G6K CH Multiwire Connectors
  • 3TA100G6K CH Multiwire Connectors
  • 3TA100G6K CH Multiwire Connectors

Description: EATON Multi-Wire Connector, 6-Wire, 14 to 6 AWG Conductor, For Use With: C Series 100 A G-Frame Molded Case Circuit Breaker, 8.2 in Length, 5.4 in W, 3.3 in Height, Aluminum

Manufacturer PN: 3TA100G6K

UPC:  78667909668

Kendall Electric Inc PN: 2155755

Invoice Description:

3TA100G6K CH Multiwire Connectors


SPEC SHEET

▸ See All in Breaker Terminals


How Can We Make This Page Better?

EATON 3TA100G6K 6-Wire Multi-Wire Connector, 14 to 6 AWG, For Use With C Series 100 A G-Frame Molded Case Circuit Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.
EATON Multi-Wire Connector, 6-Wire, 14 to 6 AWG Conductor, For Use With: C Series 100 A G-Frame Molded Case Circuit Breaker, 8.2 in Length, 5.4 in W, 3.3 in Height, Aluminum

Specifications

 Application Commercial, Institutional Buildings, Structures and Circuit Protection Applications
 Brand Name EATON
 Conductor Range 14 to 6 AWG
 Height 3.3 in
 Length 8.2 in
 Manufacturer Part Number 3TA100G6K
 Material Aluminum
 PART NUMBER KEYWORDS 3TA100G6K ; 7408748 ; 786679096680 ; 78667909668 ; 00786679096680
 Standards/Approvals UL Listed,Contact Manufacturer
 Suitable For Use With C Series 100 A G-Frame Molded Case Circuit Breaker
 Type 6-Wire
 Video Links
 Width 5.4 in
